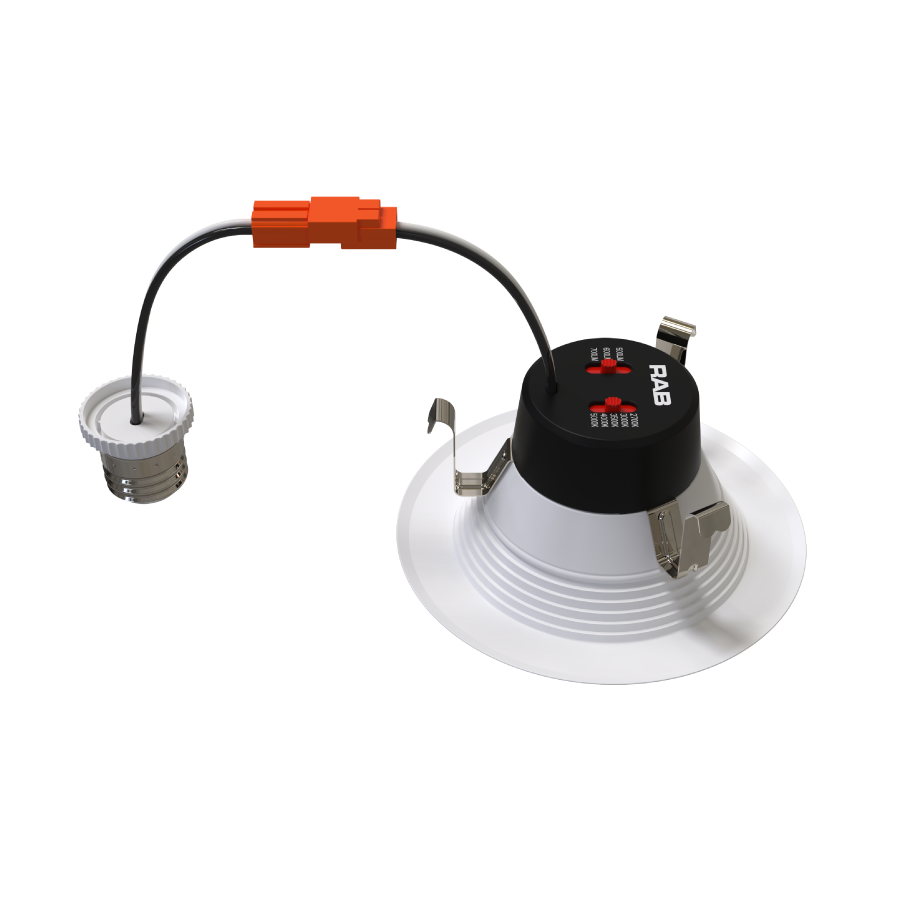

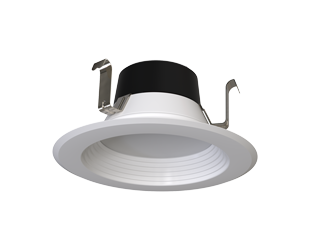

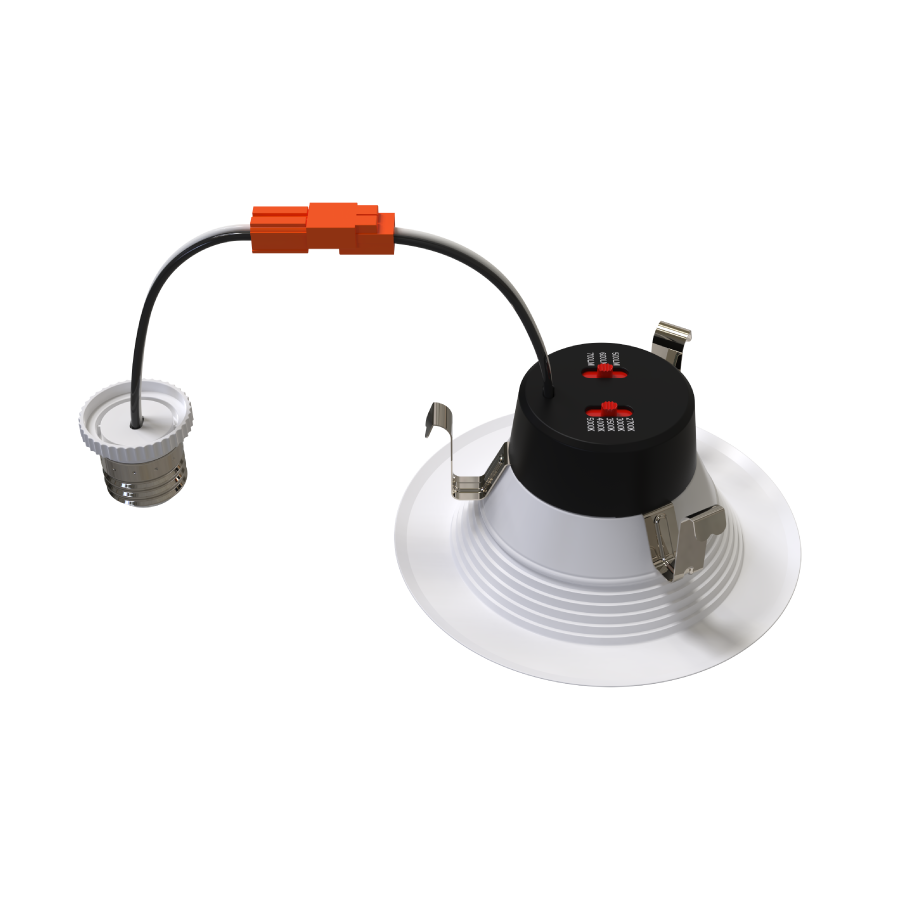

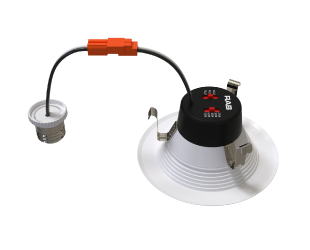

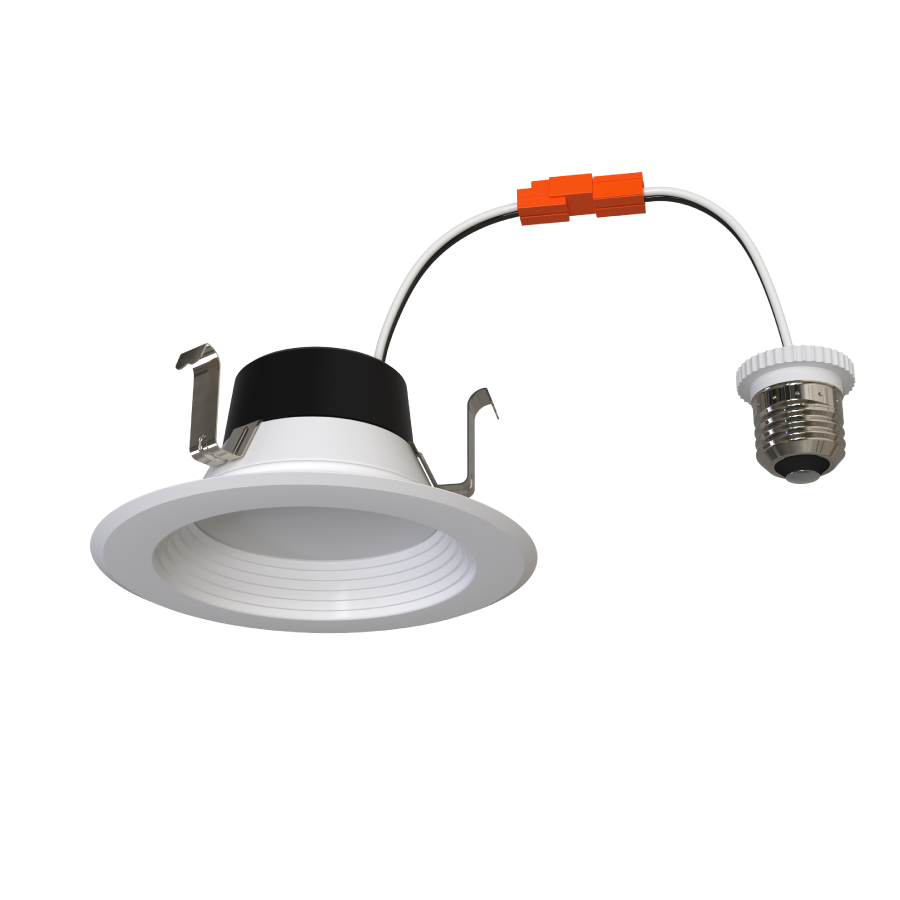

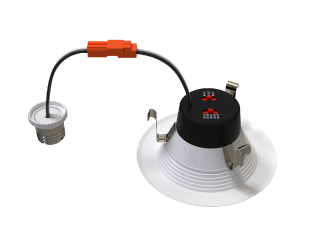

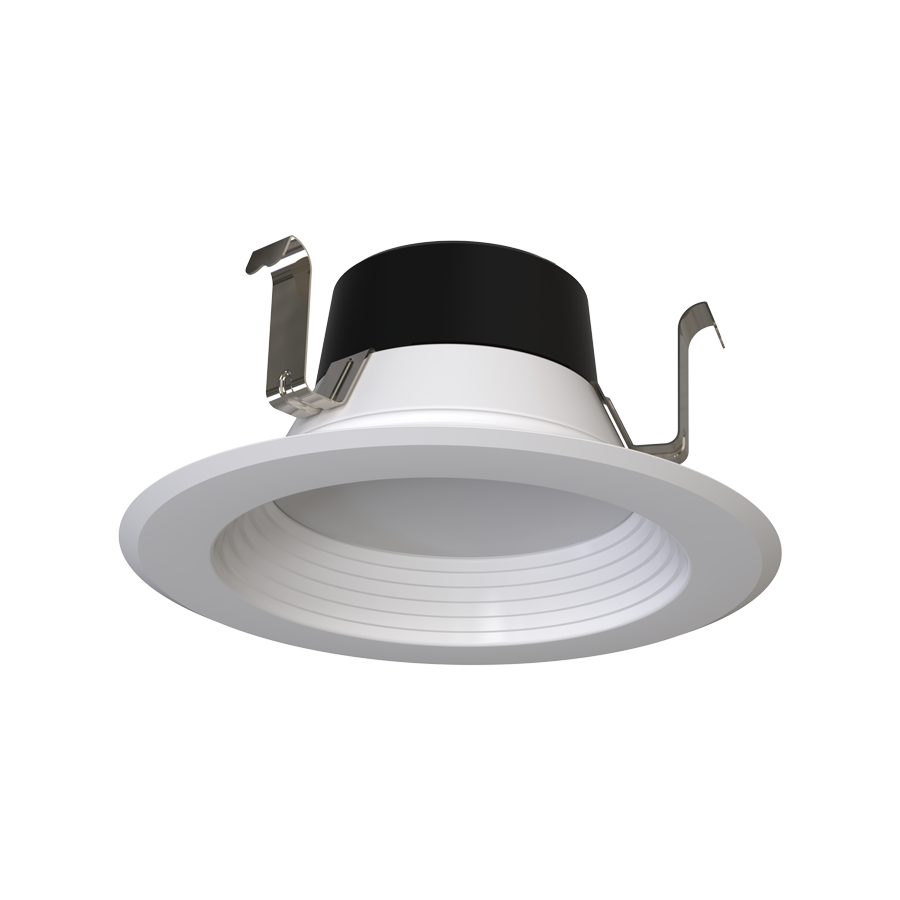

R34X-4B
R34X-4B
- Use to replace traditional halogen and incandescent light sources
- Field-adjustable wattage and color temperature 2700/3000/3500/4000/5000K
- Compatible with most standard recessed housings
- E26 Edison base adapter included
- Dimmable with TRIAC/ELV, see dimmer compatibility list
Performance
| Watts | 7/6/5W |
| Color Temp | 2700/3000/3500/4000/5000K |
| Lumens | 700/600/500 lm |
| Efficacy | 100 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.07A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 7/6/5W |
Dimensions
Weight: 0.4 lbs
Technical Specifications
Performance
Product Type
Retrofit Downlight
Description
Available in 4" and 6" models with 3 power settings and 5 field-adjustable color temperatures. Offered with smooth or baffle trims. Ideal for applications with tighter budgets.
Wattage Equivalency
40W Incandescent
Input Wattage
5/6/7W
Nominal Lumens
500/600/700lm
Efficacy
100lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
\
Electrical
Driver
Constant Current
THD
≤20%
Power Factor
≥0.9
Dimmable
Yes, dimmable down to 0% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
Input Voltage
120V
Operating Frequency
60 Hz
Input Current @ 120V (mA)
70mA
Operating Temperature
-4°F to 104°F (-20°C to 40°C)
Flicker
≤30%
LED Characteristics
Beam Angle
85°±10°
Color Temperature
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Color Accuracy (CRI)
90 CRI
R9 Value
High color performance with R9 greater than 50
Color Consistency
<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color (2700K/5000K)
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting
Recessed with housing
Base Type
E26 Edison
Construction
Size
4"
Shape
Round
Finish
White
Enclosure Material
Metal
Trim Style
Baffle
Lens Finish
Clear
Lens
Single optic and full face lens for precise beam angle control
Compliance
Listings
UL Classified, UL Recognized
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IC Rated
No
Air Tight
No
Energy Star Approved
This product is ENERGY STAR® Certified.
DLC Listed
No
Certification Model Number
DLR0162(R34X-4B)
California Title 20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6
California Energy Commission (CEC) Status
Lawful for Sales in California
NEC Compliant
Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Accessories
RFLED-GOOF-4R-6R-W
4"-6" Goof ring round white
DLTRIM/R4RS-BN
4" Color trim round smooth brushed nickel
DLTRIM/R4RS-BRZ
4" Color trim round smooth bronze
DLTRIM/R4RS-B
4" Color trim round smooth black
DLTRIM/R4RB-BN-L
4" Color trim round baffle brushed nickel
DLTRIM/R4RB-BRZ-L
4" Color trim round baffle bronze
DLTRIM/R4RB-B-L
4" Color trim round baffle black
4"-6" Goof ring round white
DLTRIM/R4RS-BN
4" Color trim round smooth brushed nickel
DLTRIM/R4RS-BRZ
4" Color trim round smooth bronze
DLTRIM/R4RS-B
4" Color trim round smooth black
DLTRIM/R4RB-BN-L
4" Color trim round baffle brushed nickel
DLTRIM/R4RB-BRZ-L
4" Color trim round baffle bronze
DLTRIM/R4RB-B-L
4" Color trim round baffle black
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
