PLC-9.5-V-8FA-DIR

Spec Sheet Ballast Compatibility List Photometrics Report Instructions FCC Caution Spec Sheet

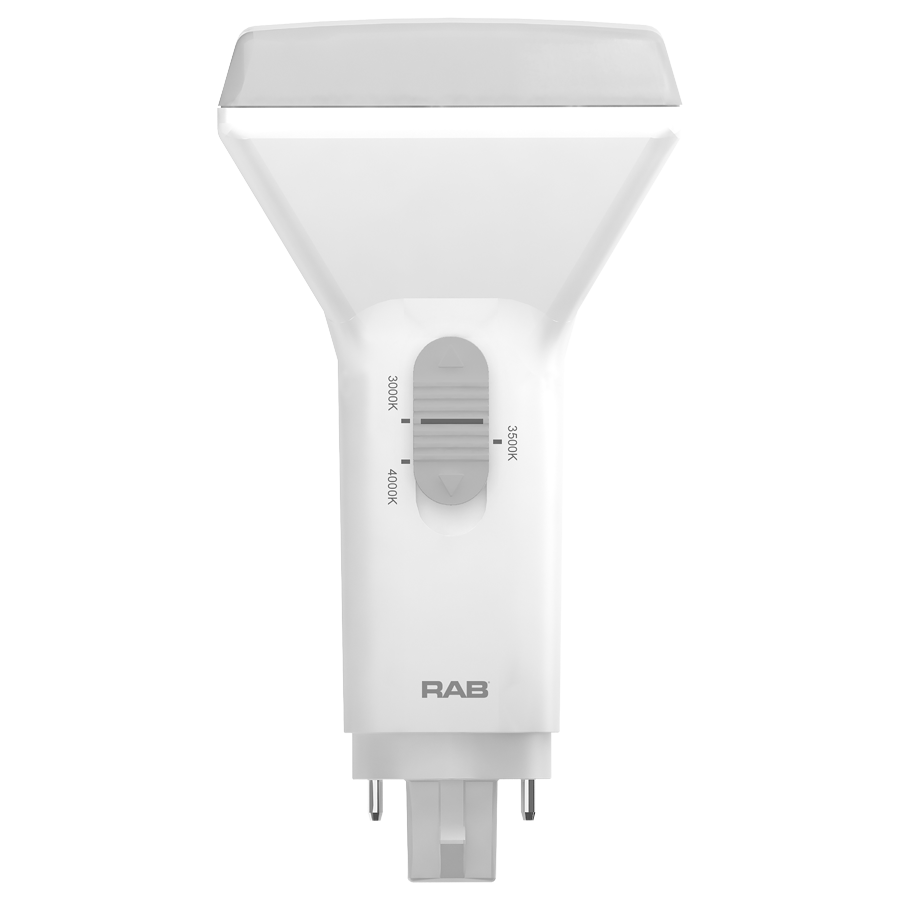

PLC-9.5-V-8FA-DIR

Field Adjustable 3 CCTs in 1 SKU (3000K, 3500K, 4000K)

Replacements for CFL 13W, 18W, and 26W G24q Lamps

Ballast Compatible. Directly Compatible with Most Existing CFL Ballasts.

Compatible with G24q / GX24q (4-pin CFL) installations

Instant-on with no warmup, unlike CFLs

Lasts 5x longer than compact fluorescent lamps

Consumes up to 1/3 the energy of conventional CFL

Base rotates, direct light where needed on Horizontal models

50,000 hour Lifespan

Environmentally friendly, no mercury used

UL Listed, DLC Listed

Rated for use in enclosed and open fixtures in dry or damp locations

5 Year No Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	9W
Color Temp	3000/3500/4000K
Lumens	1100/1120/1150 lm
Efficacy	115/117/121 lm/W
Color Accuracy	80 CRI
L70 Lifespan	50,000 Hours

Input Voltage	120-277V
Power Factor	>0.9
Flicker	N/A
THDi	20

Dimensions

Weight: 0.2 lbs

Technical Specifications

Performance

Product Type

Compact

Input Wattage

9.5W

Lumens

1100/1120/1150lm

Efficacy

115/117/121lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Wattage Equivalency

18W/26W/32W G24q

Electrical

THD

20%

Power Factor

>0.9

Dimmable

Not suggested for dimming applications

Input Voltage

120-277V AC

Operating Frequency

50/60Hz

Operating Temperature

-20°C to 45°C (-4°F to 113°F)

LED Characteristics

Color Accuracy (CRI)

Color Temperature

3000/3500/4000K

Beam Angle

140°

Construction

Shape

PLC-Vertical

Enclosure Material

Constructed from frosted, shatter-resistant polycarbonate

Housing Finish

White

Lens Finish

Frosted

Installation

Base Type

4-Pin G24q

Installation Method

UL Type A, Plug and Play

Burning Position

Vertical

Other

Technology EQ

CFL

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Compliance

Listings

UL Listed

Environment

Damp / Open

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15B of the FCC Rules

Certification Model Number

T10199(PLC-9.5-V-8FA-DIR)

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
