TEMP-150-850

Spec Sheet IES File Instructions FCC Caution Spec Sheet EZ Layout

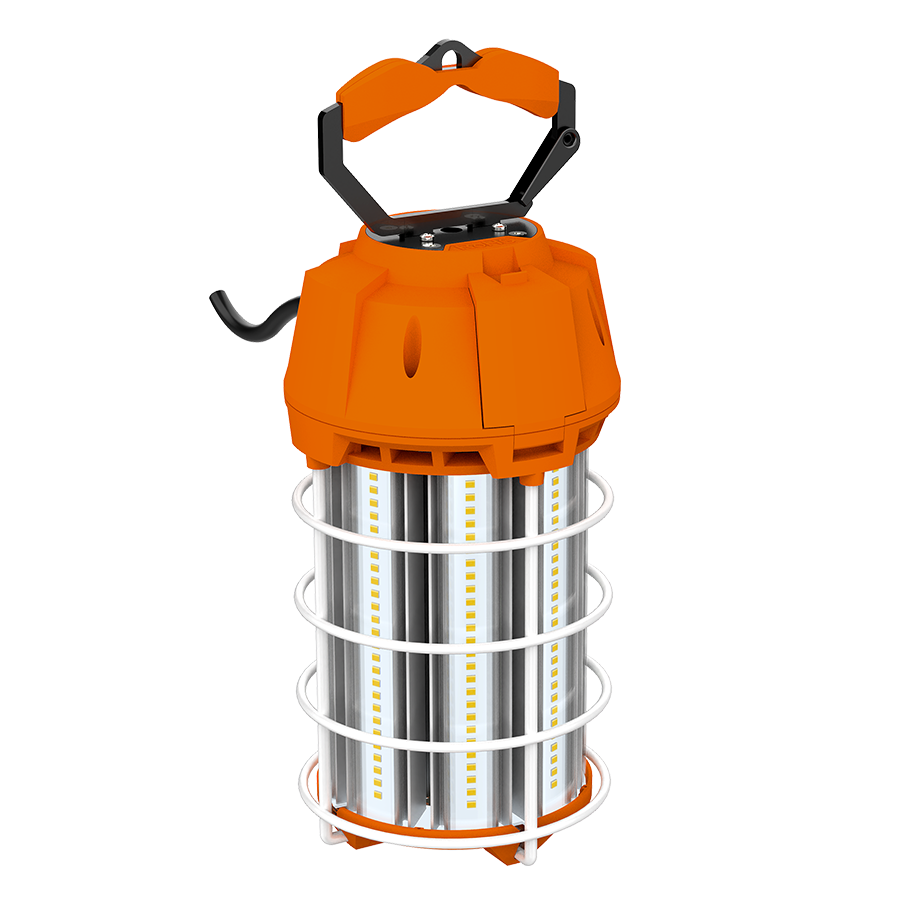

TEMP-150-850

Impact resistant, can handle demanding construction site environments

Omni-directional light distribution

Lightweight design with high output

US Cord and Plug

IP64 Water and Dust resistant

6kV surge protection built in

50,000 hour Lifespan

5 Year No Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	150W
Color Temp	5000K
Lumens	18,000 lm
Efficacy	120
Color Accuracy	80 CRI
L70 Lifespan	50,000 Hours

Input Voltage	120V
Power Factor	>0.9
Flicker	<30%
THDi	<20%

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 4.3 lbs

Technical Specifications

Performance

Product Type

LED temporary High Bay

Input Wattage

150W

Lumens

18,000lm

Efficacy

110lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Wattage Equivalency

600W

LED Characteristics

Color Accuracy (CRI)

Color Temperature

5000K

Beam Angle

360°

Construction

Shape

Temporary Work Light

Enclosure Material

Polycarbonate

Housing Finish

Construction Orange

Weight

4.28 lbs

Installation

Cord & Plug

US Plug, 6 ft cord

Installation Method

US Cord and Plug, linkable up to 4 units

Electrical

THD

<20%

Power Factor

>0.9

Input Voltage

120V

Operating Frequency

60 Hz

Operating Temperature

-30°C to 60°C

Surge Protection

6 kV

Other

Technology EQ

Metal Halide or High Pressure Sodium

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Compliance

Listings

UL Listed

Environment

Damp / Open

IP Rating

IP64

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15B of the FCC Rules

Certification Model Number
