XDIM/BRIDGE/LCB

Spec Sheet Sell Sheet Family Spec Sheet Spec Sheet

XDIM/BRIDGE/LCB

Wirelessly enhance a Lightcloud Blue system with the premium features of Lightcloud Enterprise

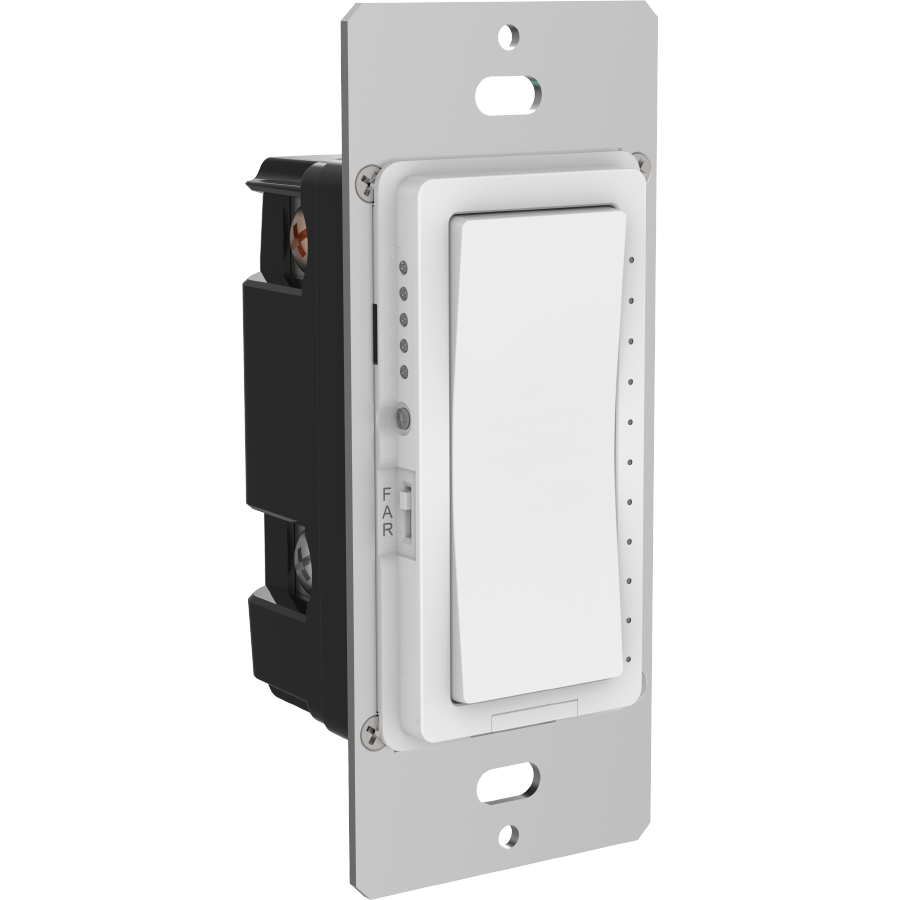

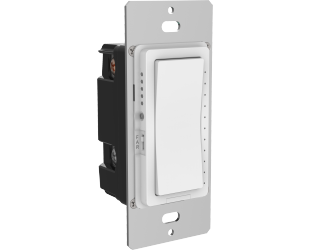

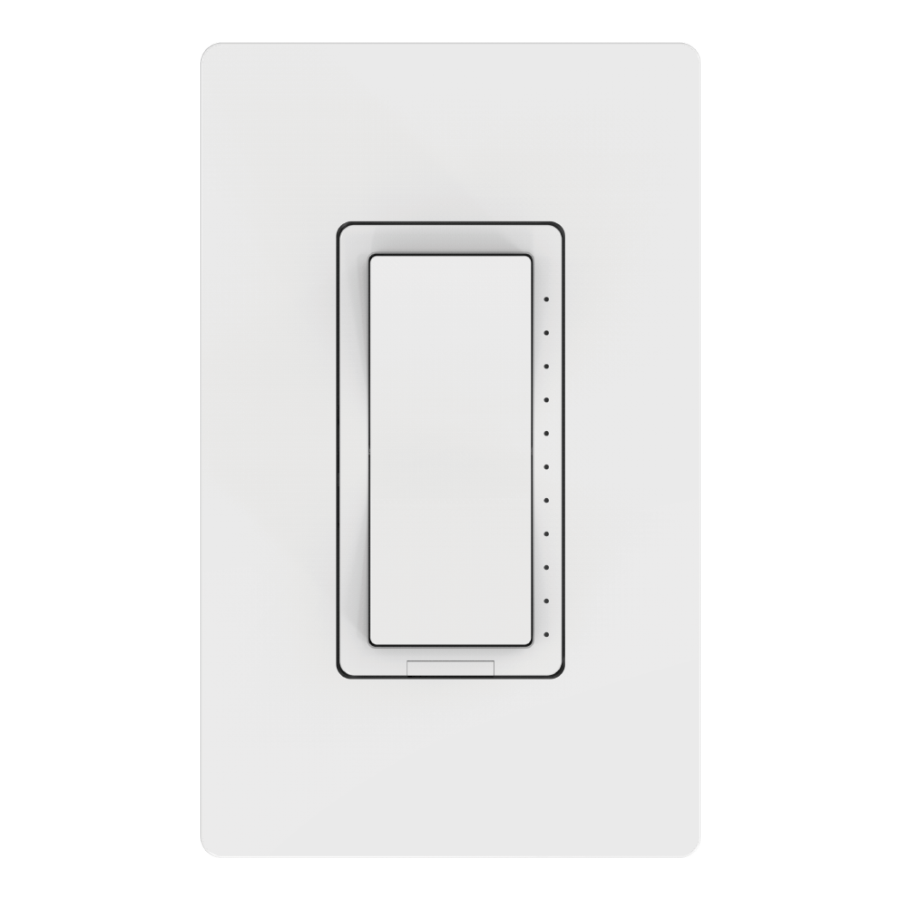

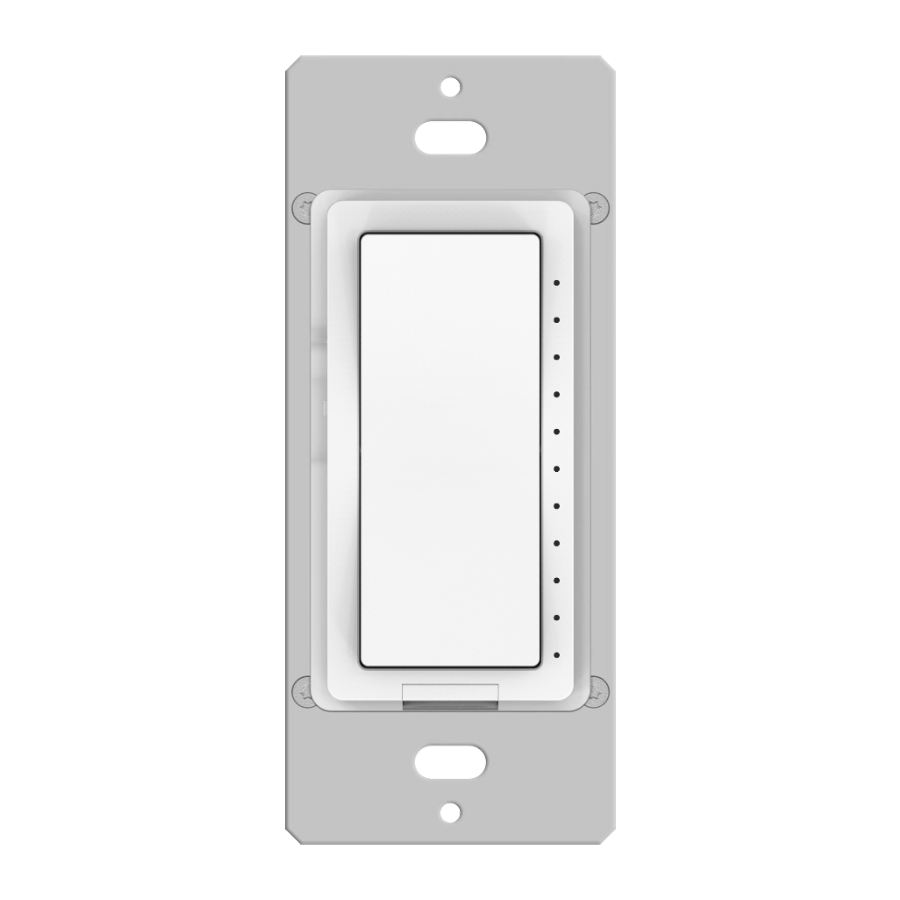

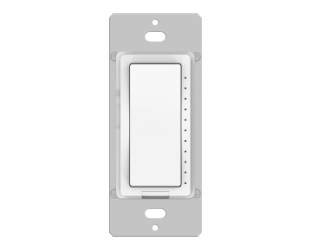

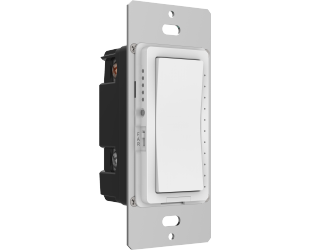

In-wall device for switching and dimming local load and any Lightcloud Blue-enabled device

Dimming features both fade on/off and rapid full-on

Set the max trim level for a zone or fixture to save energy

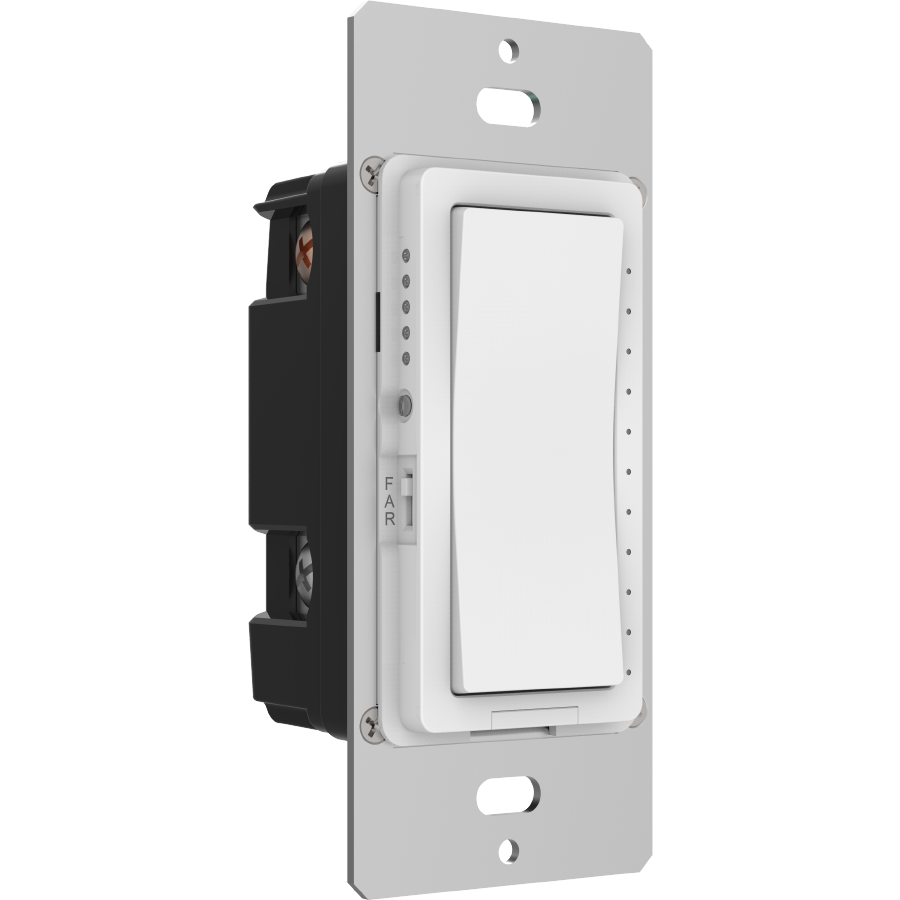

Includes mounting hardware to replace single-gang wall switch

View Technical Specs

View Price & Availability

Dimensions

Weight: 0.4 lbs

Technical Specifications

Lightcloud

Lightcloud Blue

Lightcloud Blue is a Bluetooth Mesh wireless lighting control system that allows you to control RAB's various compatible devices. With RAB's patented Rapid Provisioning technology, devices can be quickly and easily commissioned for residential and large commercial applications using the Lightcloud Blue mobile app. Each device in a system can communicate with any other device, eliminating the need for a Gateway or Hub and maximizing the control system's reach.

DLC system - Interior: N1XMLOEATBA; Exterior: NHCZ2BIA17L

Learn more at www.lightcloud.com.

Gateway Required

Communication Protocol

Bluetooth Mesh

Range

Indoor: Up to 60 feet between standard building materials. Building materials such as brick, concrete, and steel construction may require additional Lightcloud Blue devices to extend around an obstruction; Up to 200 feet clear line of sight.

Outdoor: Up to 60 feet clear line of sight; Up to 18 feet around corners

Spacing Criteria

Lightcloud Blue devices should be placed within the specified range to communicate within the Bluetooth Mesh network.

Max # of Devices to Control

Up to 200 devices

Factory Reset

Method 1: Delete from App
Open the app and access the device settings for the paired device. Be sure that the device is online and select 'Delete'.
Method 2: Manual
Press and hold the reset switch until the status indicator blinks red.

Status Indicator Light

Flashing red (1s on/1s off): Device is not provisioned
Solid green: Device is provisioned

Performance

Product Type

Smart Dimmer Bridge

Description

Wirelessly enhance a Lightcloud Blue system with the premium features of Lightcloud Enterprise.

Application Type

Single-pole or 3-way

Electrical

Dimming Control Type

Selectable Phase: Forward/Reverse

Power Rating

500W

Load Switching Capactiy

LED/CFL: 300W
INC/HAL/ELV: 500W
MLV: 400VA

Multi-gang Derating

When combining controls in the same wallbox, derating is required.
LED/CFL
Not Ganged: 300W max load
End of Gang: 250W max load
Middle of Gang: 200W max load
INC/HAL/ELV/MLV
Not Ganged: 500W max load
End of Gang: 400W max load
Middle of Gang: 300W max load

Self Calibration

Via dip switch choose a self calibration option based on the fixtures being controlled:
F - Forward Phase
A - Auto Detect Forward/Reverse Phase
R - Reverse Phase

Note: After dip switch adjustment, power device off and then power on again.

Power Cut Off Switch

Push in to connect to line voltage.
Pull out to disconnect to line voltage.
Note: After dip switch adjustment, power device off and then power on again.

Input Voltage

120-277V

Operating Frequency

60 Hz

Operating Temperature

32°F to 104°F (0°C to 40°C)

Installation

Mounting

Requires a U.S. wallbox with 2 inch depth (recommended) and a minimum depth of 1.46 inches

Neutral Wire Required

Optional.
Power usage can only be reported when neutral-wire is connected.

Construction

Shape

Rectangle

Finish

Matte White

Enclosure Material

Plastic

Compliance

Listings

UL 1472

Environment

Suitable for use indoors in dry and damp environments.

DLC NLC Listed

This product is on the Design Lights Consortium (DLC) Network Lighting Controls (NLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)

Certification Model Number

XDIM/BRIDGE/LCB

California Title 20 Compliant

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

Other

3 Yr Limited Warranty

The RAB 3-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty
