SP10KV

Spec Sheet FCC Caution Spec Sheet

SP10KV large main

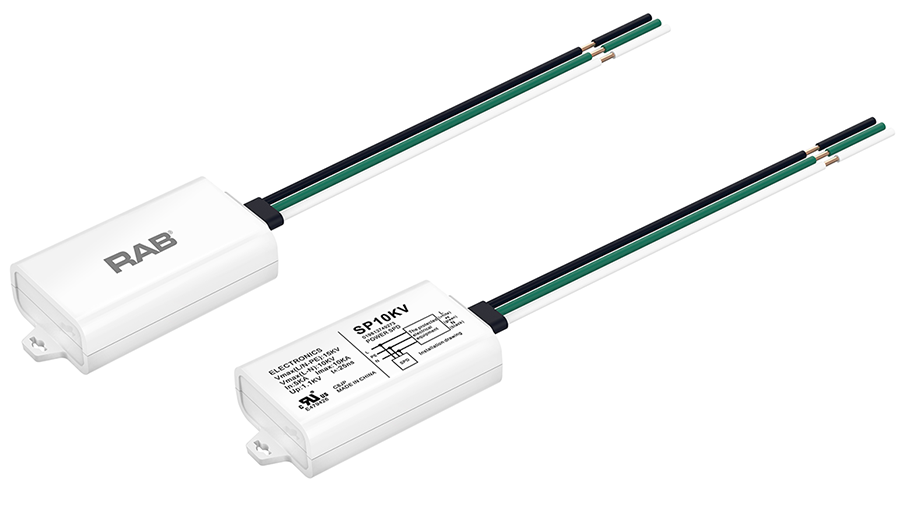

SP10KV

3-Lead Surge Protector

Protects Against Surges According to IEEE C62.41.2

Surge Location Rated Category C3

10KA and 10KV

IP67 Rated for Wet Locations

High Temperature/Flameproof Enclosure (194°F/90°C Max. Surface Rating)

RoHS Compliant

UL Recognized (UL1449)

Parallel Wiring

View Technical Specs

View Price & Availability

Technical Specifications

Performance

Nominal Operating Voltage

110 - 277V AC

Rated Voltage (max. continuous voltage)

300V

Nominal Discharge Current

5kA

Max Discharge Current

10kA

Nominal Discharge Voltage

10kV

Maximum Discharge Voltage

15kV

Response Time

25ns

Max. Backup Fuse

16A gL/gG

Cross-Section Area

1.5mm² flexible

Size

97 x 45 x 22mm

Outer Casting Protection Grade

IP65

Electrical

Voltage Protection Level

1.1kV

Operating Temperature Range (Parallel Wiring)

-40°C - 70°C

Operating Temperature Range (Through Wiring)

-40°C - 70°C

Installation

Mounting

Custom

Construction

Enclosure Material

Theromoplastic

Compliance

California Energy Commission (CEC) Status

Lawful for Sales in California
