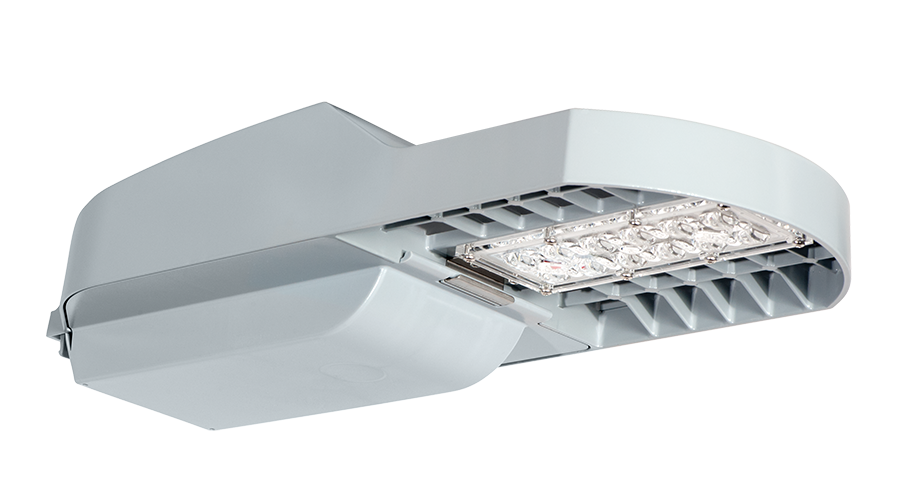

TBLED2T32RG/480/D10/7PR

Spec Sheet Instructions Spec Sheet

DISCONTINUED

IP66 Rated

Industry-leading 5G vibration rating per ANSI C136.31

ANSI C136.41 7-pin receptacle, compatible with wireless control systems

100,000-Hour LED lifespan

10-Year, limited warranty

View Technical Specs

Performance

Watts	32W
Color Temp	5000K (Cool)
Lumens	3,686 lm
Efficacy	115.2 lm/W
Color Accuracy	73 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V
208V
240V
277V
Input Watts	32W

Dimensions

Weight: 9.2 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations. Minimum of 75° supply conductors.

IP Rating

Ingress protection rating of IP66 for dust and water

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Optical

IES Classification

The Type II distribution is ideal for wide walkways, on ramps and entrance roadways, bike paths and other long and narrow lighting applications. This type is meant for lighting larger areas and usually is located near the roadside. This type of lighting is commonly found on smaller side streets or jogging paths.

BUG Rating

B1 U0 G1

Construction

Vibration Rating

Industry-leading 5G vibration rating per ANSI C136.31

Ambient Temperature

Suitable for use in up to 104°F (40°C)

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Thermal Management

Superior thermal management design with external Air-Flow fins provides maximum operational life, even in high ambient temperature environments

Housing

Die-cast aluminum housing with polycarbonate driver cover

Lens

Clear acrylic lens with integrated optics

Gaskets

High-temperature silicone gaskets

Effective Projected Area (EPA)

EPA = 0.7

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

LED Characteristics

LEDs

Multi-chip, high-output, long-life LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Electrical

Drivers

Constant Current, Class 2, 480V, 50-60Hz,

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

7-Pin Receptacle

ANSI C136.41 7-pin receptacle, compatible with wireless control systems

Surge Protection

10 kV

Installation

Mounting

Fits most standard roadway upsweep arms. adapter brackets supplied fit 1", 1 1/4", 1 1/2" and 2" pipe arms. Fixture can be tilted at the following angles -5°, -2.5°, 0°, +2,5°, +5°.

Other

Accessory

Shorting Cap for 7-Pin Receptacle available here.

Performance

Wattage Equivalency

Equivalent to 70W Metal Halide/50W HPS
