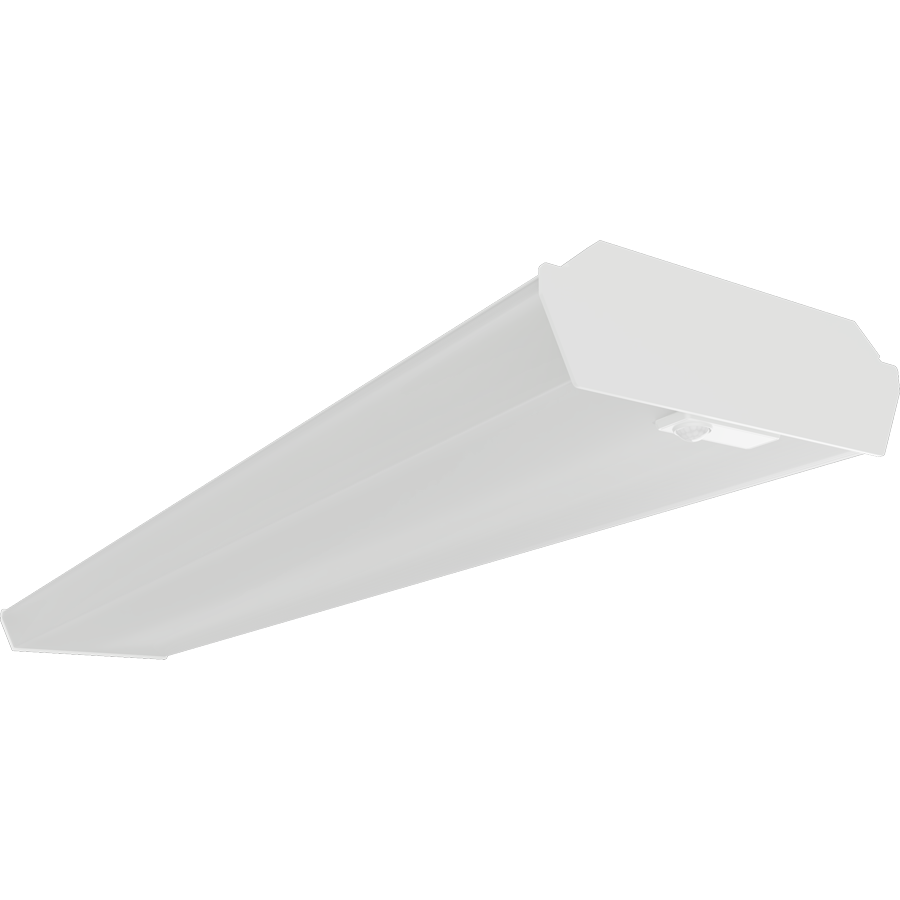

GUS4/PIR
50W 3000/3500/4000/5000/6500K
- Affordable, easy to use LED wrap fixture
- 0-10V dimming, standard
- 100,000-Hour LED lifespan
- 5-Year, limited warranty
Performance
| Watts | 50/40/30W |
| Color Temp | 3000/3500/4000/5000/6500K |
| Lumens | 4424-7332 lm |
| Efficacy | 141-154.7 lm/W |
| Color Accuracy | 82-86 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant |
| 120V | 0.42A/0.33A/0.25A |
| 208V | 0.24A/0.19A/0.16A |
| 240V | 0.21A/0.17A/0.14A |
| 277V | 0.18A/0.15A/0.12A |
| Input Watts | 29.2-51.2W |
Dimensions
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
50/40/30W (factory default 50W)
Color Temperature Adjustable:
3000K, 3500K, 4000K, 5000K and 6500K(factory default 4000K)
50/40/30W (factory default 50W)
Color Temperature Adjustable:
3000K, 3500K, 4000K, 5000K and 6500K(factory default 4000K)
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Electrical
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Aux Power Supply
Yes
Dim to Off
Yes
Surge Protection
2 kV + 4 kV
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Light Distribution
115°
Construction
Cold Weather Starting
The minimum starting temperature is -4°F (-20°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Housing
Iron
Reflector Material
Iron
Lens
Bio-based Polymethy Methacrylate (PMMA) lens
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Surface mount. Can be mounted with v-hooks (ordered separately).
Sensor Settings
Operating Temperature
-4°F to 122°F(-20°C to 50°C)
Storage Temperature
-13°F - 158°F(-25°C - 70°C)
Operating Humidity
5% - 93% without condensation
IP Rating
IP20
Warm Up Time
45s +/-5s
Standby (w)
<0.3W
Module Interaction
Wire AWG 22 (Grey Dim -, Purple Dim +, Yellow 12V DC)
On-Time Adjustment
10s, 5min, 10min, 30min with +/-5% tolerance
(Factory Setting: 30min +/-5%)
(Factory Setting: 30min +/-5%)
Bi-Level
0, 10%, 30%, 50% with +/-5% tolerance
(Factory Setting: 10%)
(Factory Setting: 10%)
Debounce Time
Day to Night: 5s
Night to Day: 30s
Night to Day: 30s
Open Circuit Protection
No
Short Circuit Protection
Yes
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
