PTR6-07-20WT
PTR6-07-20WT
- Designed for ground mounting
- Heavy duty TGIC polyester coating
- Reinforced hand holes with grounding lug and removable cover for easy wiring access
- Pole caps, base covers & bolts are sold separately
- Custom manufactured for each application
Dimensions
Weight: 219.4 lbs
Technical Specifications
Compliance
CSA Listed
Suitable for wet locations
Performance
Description

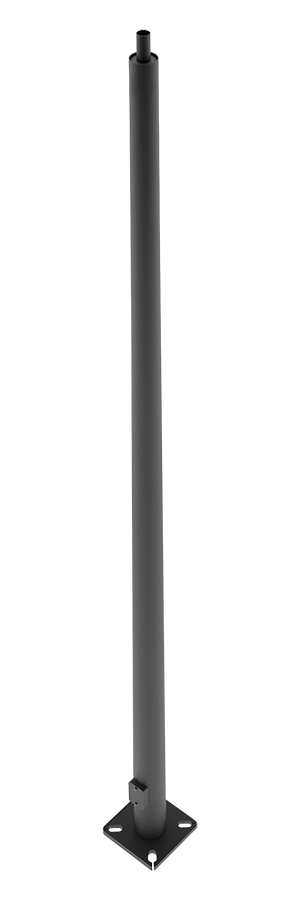

Steel pole 6" taper 7 gauge 20 foot welded tenon square base
Construction
Base Shaft Diameter
6"
Hand Holes
Reinforced with grounding lug and removable cover
Base Plates
36,000 p.s.i. minimum yield.
Color
Bronze powder coating
Height
20 ft
Gauge
7
Wall Thickness
3/16"
Anchor Bolt Templates
WARNING Template must be printed on 12" x 18" sheet for actual size. CHECK SCALE BEFORE USING. Templates shipped with anchor bolts and available online.
Max EPA's/Max Weights
70MPH 28.1 ft/700 lb.
80MPH 20.3 ft/700lb.
90MPH 15.1 ft/690 lb.
100MPH 11.4 ft/670 lb.
110MPH 8.6 ft/680 lb.
120MPH 6.3 ft/670lb.
130MPH 4.8 ft/670 lb.
140MPH 3.3 ft/650 lb.
150MPH 2.5 ft/640 lb
80MPH 20.3 ft/700lb.
90MPH 15.1 ft/690 lb.
100MPH 11.4 ft/670 lb.
110MPH 8.6 ft/680 lb.
120MPH 6.3 ft/670lb.
130MPH 4.8 ft/670 lb.
140MPH 3.3 ft/650 lb.
150MPH 2.5 ft/640 lb
Other
Terms of Sale
Pole Terms of Sale is available online.
