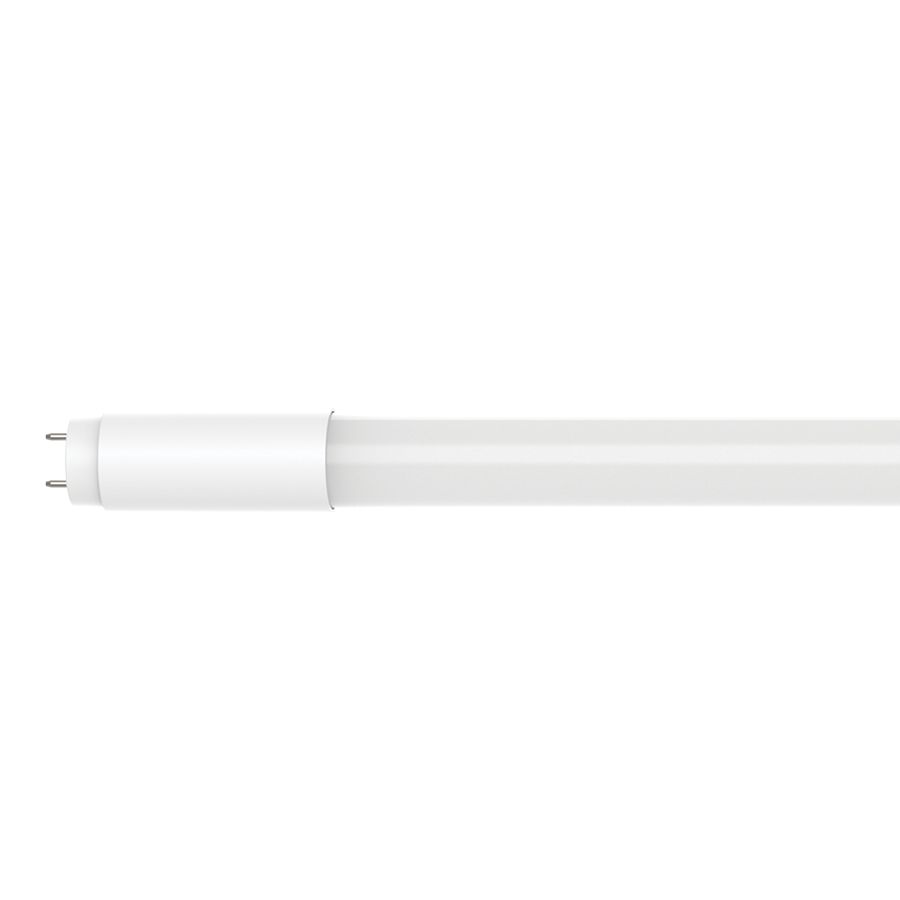

T8-12.5-48GC-840-SE-BYP-DIM
T8-12.5-48GC-840-SE-BYP-DIM
- Replacement for conventional fluorescent T8 and T12 linear tubes
- Integral driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
- Works with non-shunted sockets ONLY
- NSF Listed: NSF/ANSI Standard 2 - Food Equipment - Splash Zone (Not for Direct Food Zone without additional fixture considerations)
- For use with compatible 0-10V dimming systems
Performance
| Watts | 12W |
| Color Temp | 4000K |
| Lumens | 1,800 lm |
| Efficacy | 144 |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | N/A |
| Power Factor | N/A |
| Flicker | N/A |
| THDi | N/A |
Dimensions
Weight: 0.5 lbs
Technical Specifications
Performance
Product Type
Linear Tube
Wattage Equivalency
32W Fluorescent
Input Wattage
12.5W
Lumens
1,800lm
Efficacy
144lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
THD
≤25%
Power Factor
>0.9
Dimmable
Yes, dimmable down to 10% on compatible 0-10V dimming systems. See Dimmer Compatibility List.
Input Voltage
120-277V
Operating Frequency
50/60Hz
Input Current @ 120V (mA)
105mA
Input Current @ 208V (mA)
61mA
Input Current @ 240V (mA)
55mA
Input Current @ 277V (mA)
48mA
Operating Temperature
-4°F to 113°F (-20°C to 45°C)
Flicker
≤5%
LED Characteristics
Beam Angle
160°
Color Temperature
4000K
Color Accuracy (CRI)
≥80 CRI
R9 Value
High color performance with R9 greater than 0
Color Consistency
<5-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Installation Method
UL Type B, Ballast Bypass
Base Type
G13
Construction
Length
4 ft
Shape
T8
Finish
White
Endcap Material
Plastic
Enclosure Material
Glass w/ Polyethylene Terephthalate (PET)
Lens Finish
Frosted
Compliance
Listings
UL Classified, UL Recognized
ETL Listed
No
Environment
Suitable for use indoors in dry and damp environments.
Fixture Rating
Suitable for use in enclosed fixtures.
Suitable for use in open fixtures.
Suitable for use in open fixtures.
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Certification Model Number
T10288(T8-12.5-48GC-840-SE-BYP-DIM)
California Title 20 Compliant
No
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
NSF Listed
Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
