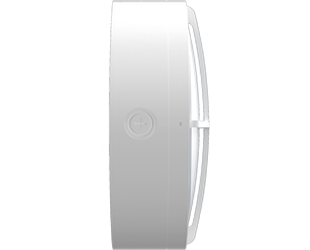

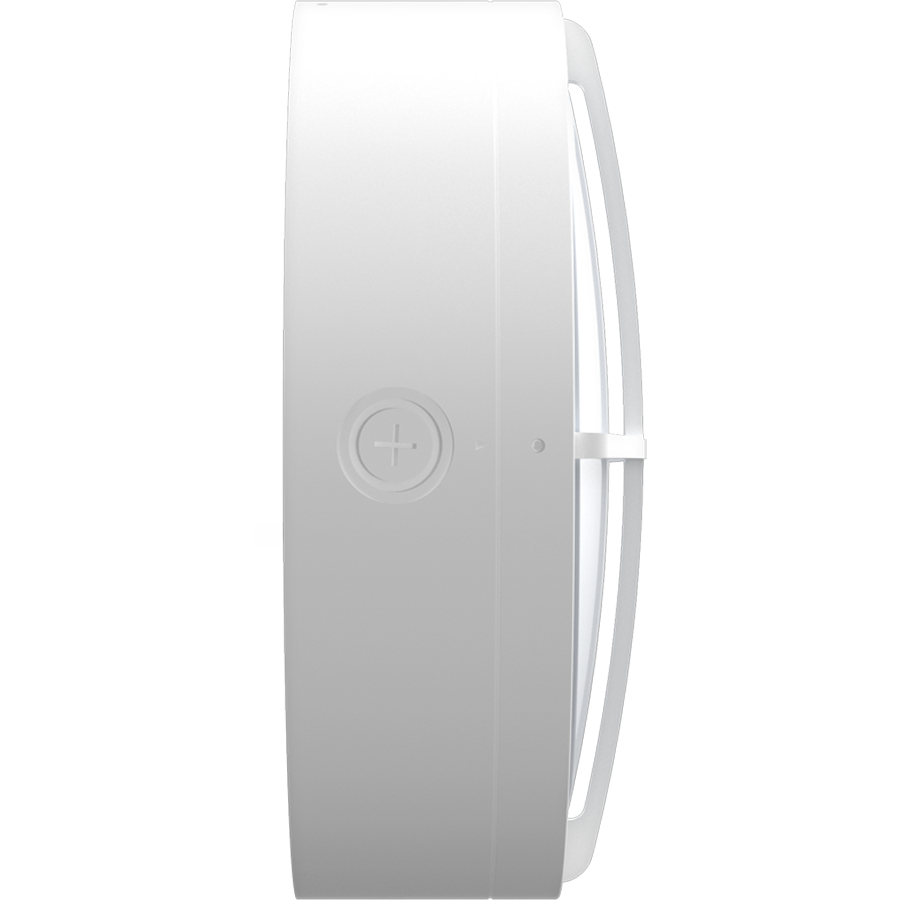

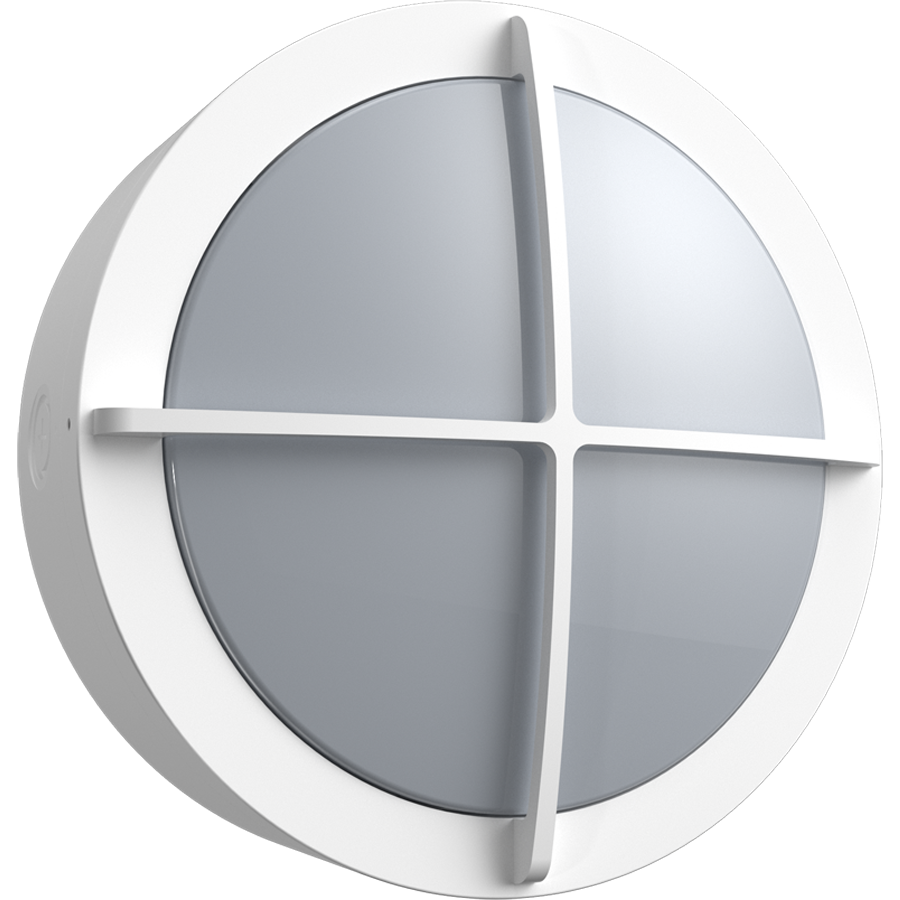

BULKH40RXW
40W 3000K/4000K/5000K
- 100,000-hour LED Life
- On/Off photocell
- 5-Year, limited warranty
Performance
| Watts | 40/32/24W |
| Color Temp | 3000K/4000K/5000K |
| Lumens | 2610-4399 lm |
| Efficacy | 100.3-122.4 lm/W |
| Color Accuracy | 84-86 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.33A/0.26A/0.20A |
| 208V | 0.21A/0.17A/0.14A |
| 240V | 0.18A/0.15A/0.12A |
| 277V | 0.15A/0.13A/0.11A |
| Input Watts | 23.4-40W |
Dimensions
Weight: 6.4 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
40W/32W/24W (factory default 40W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default 5000K)
On/Off Photocell (factory default "On")
40W/32W/24W (factory default 40W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default 5000K)
On/Off Photocell (factory default "On")
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
LED Characteristics
LEDs
Long-life, high-efficacy, discrete, surface-mount LEDs
Electrical
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Aux Power Supply
No
Dim to Off
No
Photocell
120-277V selectable photocell that can be turned on and off.
Surge Protection
2 kV
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 122°F (50°C)
Housing
Die-cast aluminum
Lens
Glass
Gaskets
High-temperature silicone
Shape
Round with cross guard
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP65 for dust and water
Installation
Mounting
Wall mount
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
