HAT4RBW

Spec Sheet Sell Sheet Family Spec Sheet Spec Sheet

HAT4RBW large main

HAT4RBW

View Technical Specs

View Price & Availability

Dimensions

Link to Dimension Drawing

Weight: 0.1 lbs

Technical Specifications

Performance

Description

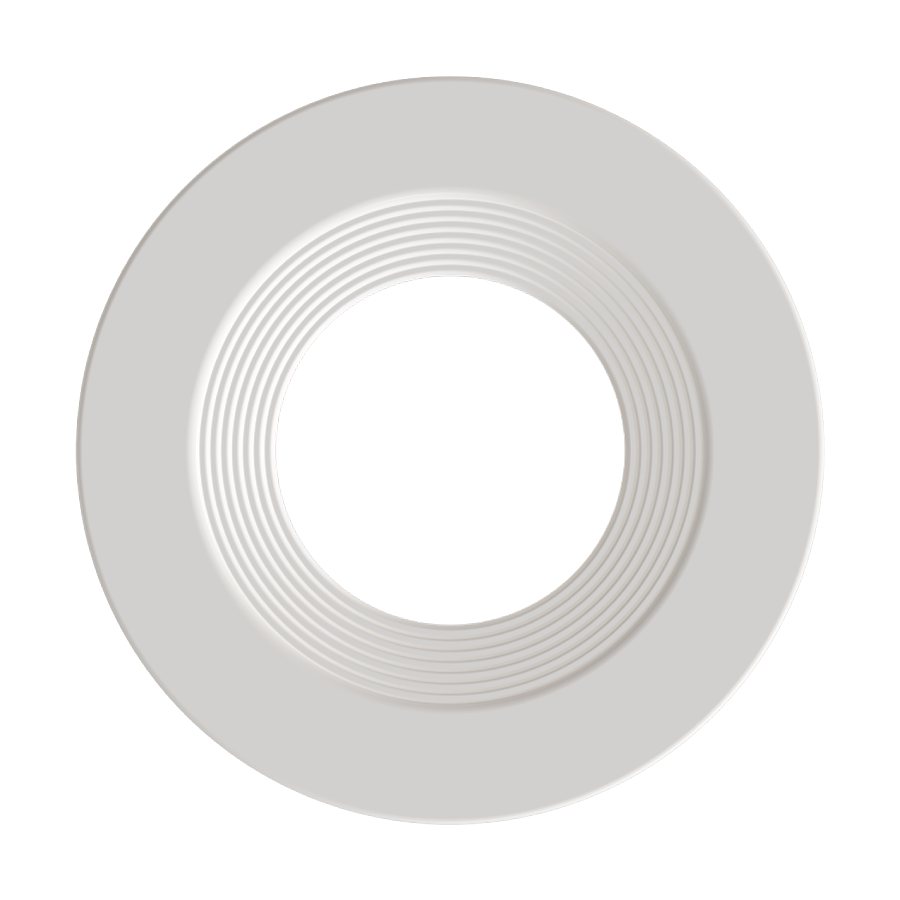

4-inch round white baffle trim for HALED, see Trim Compatibility List

Product Type

Recessed Downlights

Lumens

5000K: 1,060lm
4000K: 1,060lm
3500K: 1,060lm
3000K: 1,030lm
2700K: 1,000lm

Efficacy

5000K: 88lm/W
4000K: 88lm/W
3500K: 88lm/W
3000K: 86lm/W
2700K: 83lm/W

Construction

Trim Component

This component must be ordered with 4" HALED downlight module in order to make a complete fixture. See here for " 4" HALED module.

Material

Metal

Trim Style

Baffle

Shape

Round
