FXLEDMB33SF/480/7PR

Spec Sheet IES File LM79 Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

FXLEDMB33SF/480/7PR

346W 4000/5000K

100,000-hour life based on LM-80 results and TM-21 calculations

DLC Premium Listed

IP66 Rating protects against dust & water ingress

10-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	346/213W
Color Temp	4000/5000K
Lumens	30,436-46,418 lm
Efficacy	126.9-148 lm/W
Color Accuracy	84-86 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V
208V
240V
277V
Input Watts	211.7-342.4W

EZ-Layout

Create Custom Lighting Layout

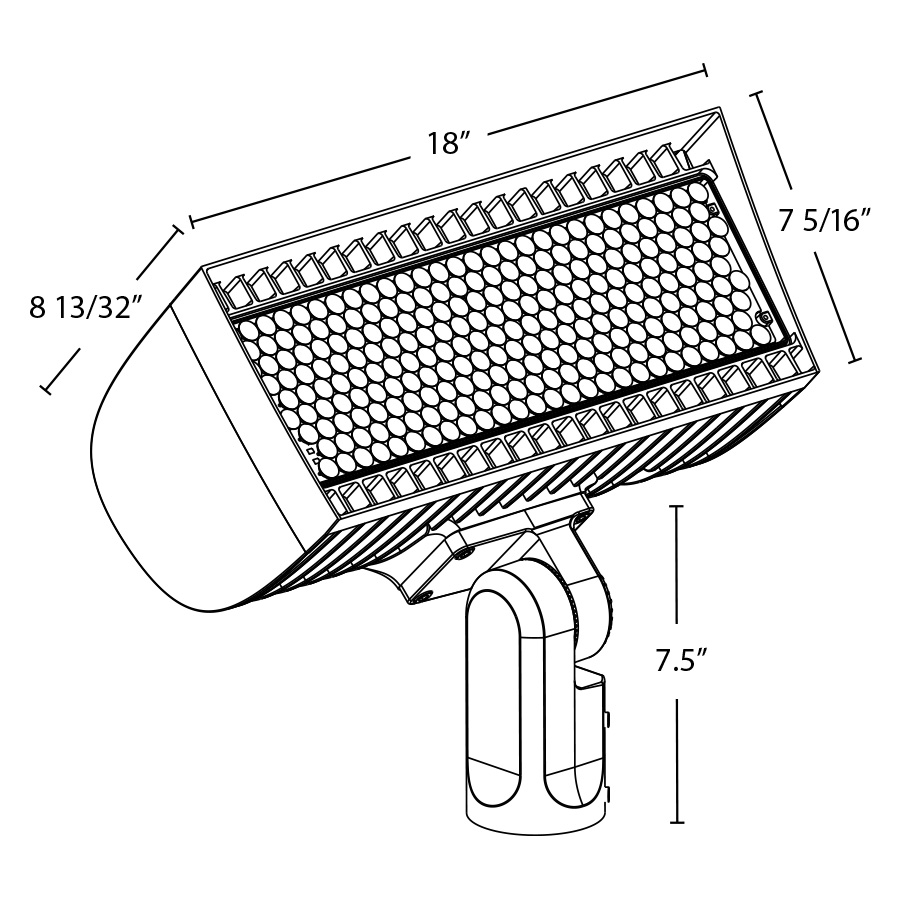

Dimensions

Weight: 33.1 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
346W/213W (factory default 346W)
Color temperature (selectable by 4000K and 5000K)

Compliance

UL Listed

Suitable for wet locations. Suitable for mounting within 4 ft (1.2m) of the ground.

IP Rating

Ingress protection rating of IP66 for dust and water

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

DLC Listed

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-T6BLV6

LED Characteristics

LEDs

Long-life, high-efficacy, discrete, surface-mount LEDs

Color Consistency

7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.

Electrical

Driver

213W: Constant Current, Class 2, 480V, 50/60 Hz, 480V: 0.46A

346W: Constant Current, Class 2, 480V, 50/60 Hz, 480V: 0.72A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

4.89% at 480V

Power Factor

97.5% at 480V

Surge Protection

6kV

7-Pin Receptacle

ANSI C136.41 7-pin receptacle, compatible with wireless control systems

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Wattage Equivalency

346W: 1000W Metal Halide
213W: 750W Metal Halide

Optical

NEMA Type

NEMA Beam Spread 3H x 3V

Construction

Cold Weather Starting

The minimum starting temperature is -40°C (-40°F)

Ambient Temperature

Max Power Temp Rating: 40°C (104°F)
Low Power Temp Rating: 49.7°C (121.5°F)

Housing

Die-cast aluminum

Tilt Increment

Rotates in 5 degree increments

Lens

Ultra clear, tempered glass

Reflector

Vacuum metalized polycarbonate

Vibration Rating

3G vibration rating per ANSI C136.31

Effective Projected Area

EPA = 0.72

Gaskets

High-temperature silicone gaskets

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

2 3/8" slipfitter mount with stainless steel hardware

Other

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of ten (10) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
