FGIMBAL4
FGIMBAL4
- 5 color temperatures in 1 SKU (2700K, 3000K, 3500K, 4000K, 5000K)
- No recessed housing or j-box required
- Tested to UL 263 and ASTM E119 standards for 2-hour fire resistance.
- TRIAC/ELV dimming (see Dimmer Compatibility List)
- Spring-loaded retention clips
- New construction or retrofit applications
- 50,000-Hour lifespan
Performance
| Watts | 9W |
| Color Temp | |
| Lumens | 750 lm |
| Efficacy | 83 |
| Color Accuracy | 2700/3000/3500/4000/5000K CRI |
| L70 Lifespan |
| Type | Constant Current, Class 2 |
| 120V | 0.09A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 9W |
Dimensions
Weight: 1.1 lbs
Technical Specifications
Performance
Product Type

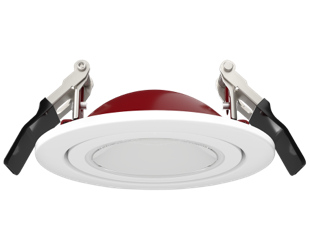

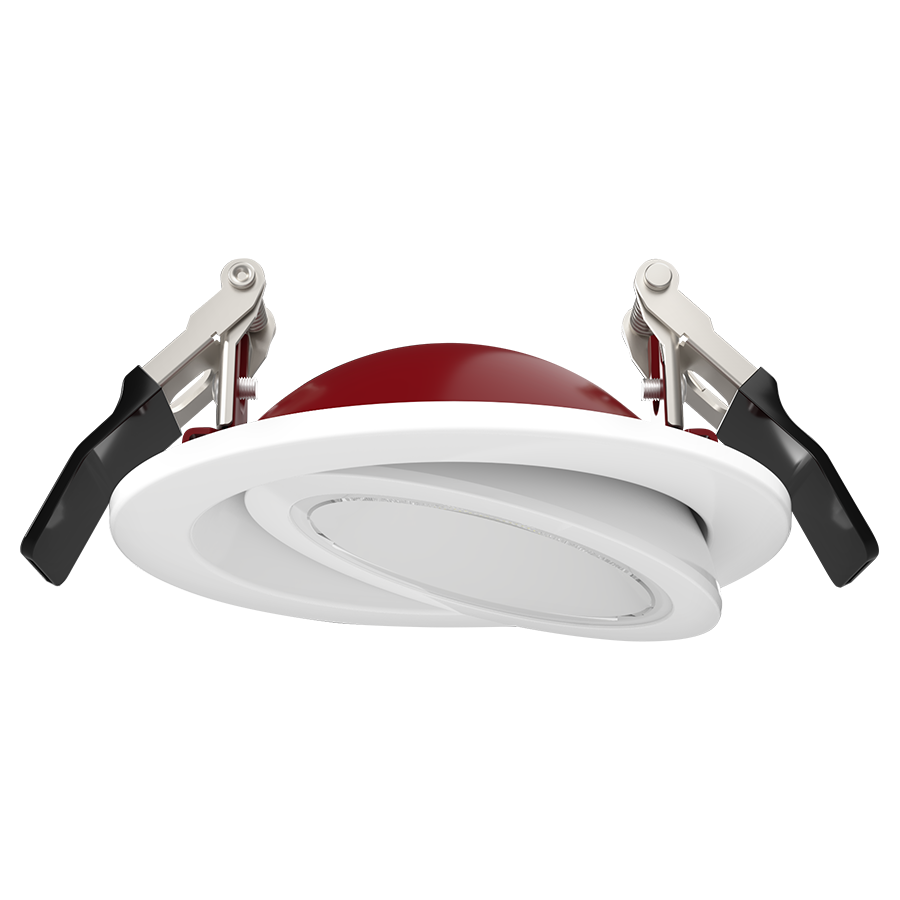

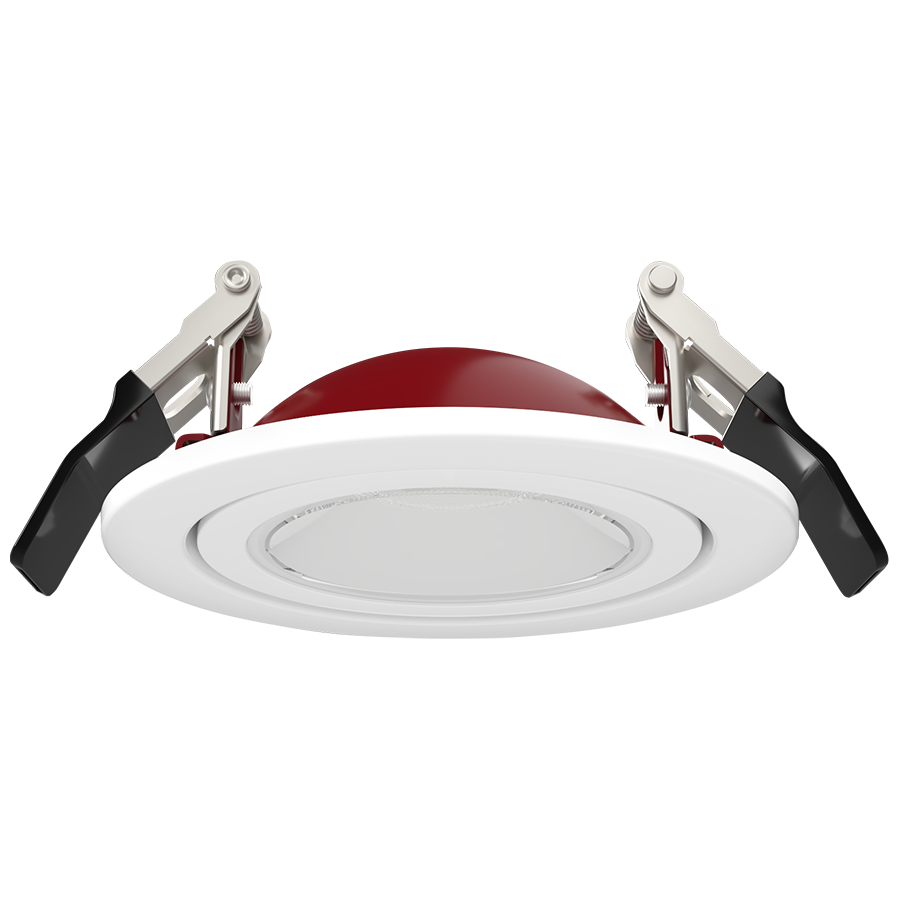

Fire Resistant Gimbal Downlight
Description

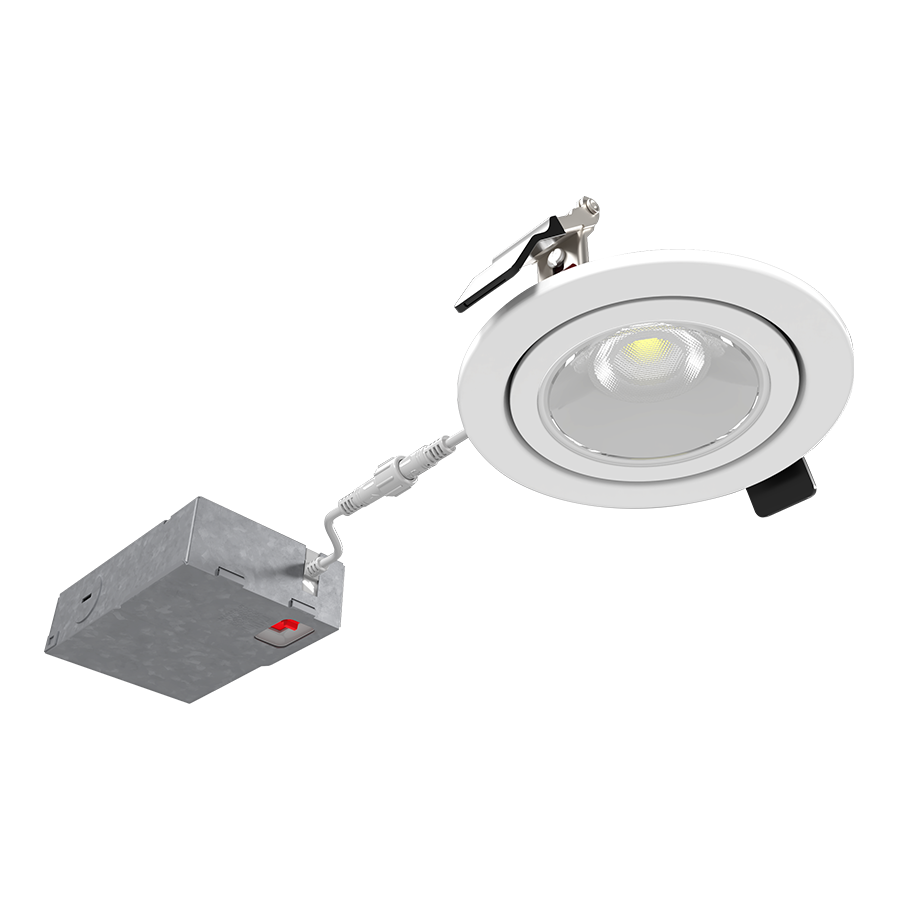

Fire-resistant gimbal downlight available in 4" and 6" models with 5 selectable color temperatures. The remote driver makes these ideal for new construction and retrofit applications.
Wattage Equivalency
60W Incandescent
Input Wattage
9W
Lumens
750lm
Efficacy
83lm/W
Lumens (Measured)
2700K @ 693lm; 3000K @ 714lm; 3500K @ 757lm; 4000K @ 780lm; 5000K @ 784lm
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current, Class 2
THD
≤20%
Power Factor
≥0.9
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
Input Voltage
120V
Operating Frequency
60 Hz
Input Current @ 120V (mA)
90mA
Operating Temperature
-4°F to 104°F (-20°C to 40°C)
Flicker
5%
LED Characteristics
Beam Angle
40°
Tilt
90°
Color Temperature
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Color Accuracy (CRI)
>90 CRI
R9 Value
High color performance with R9 greater than 50
Color Consistency
<7- (30/35/40K); <4- (27/50K) step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation

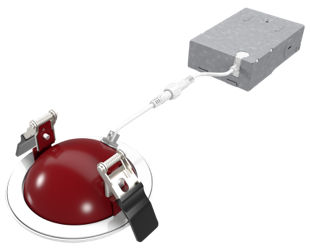

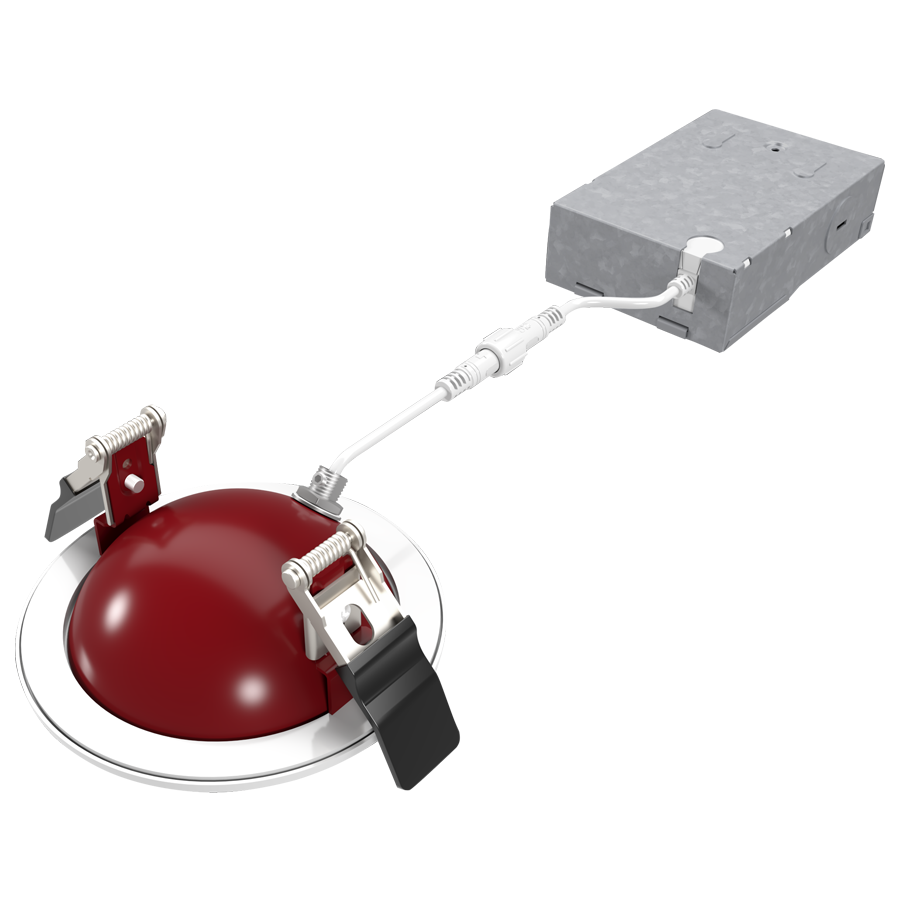

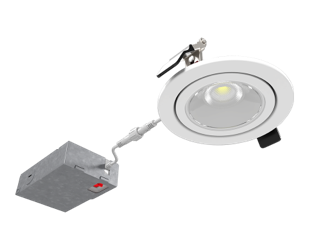

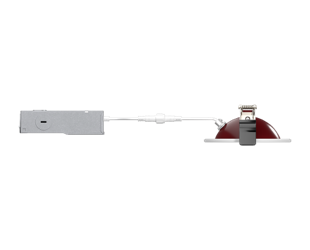

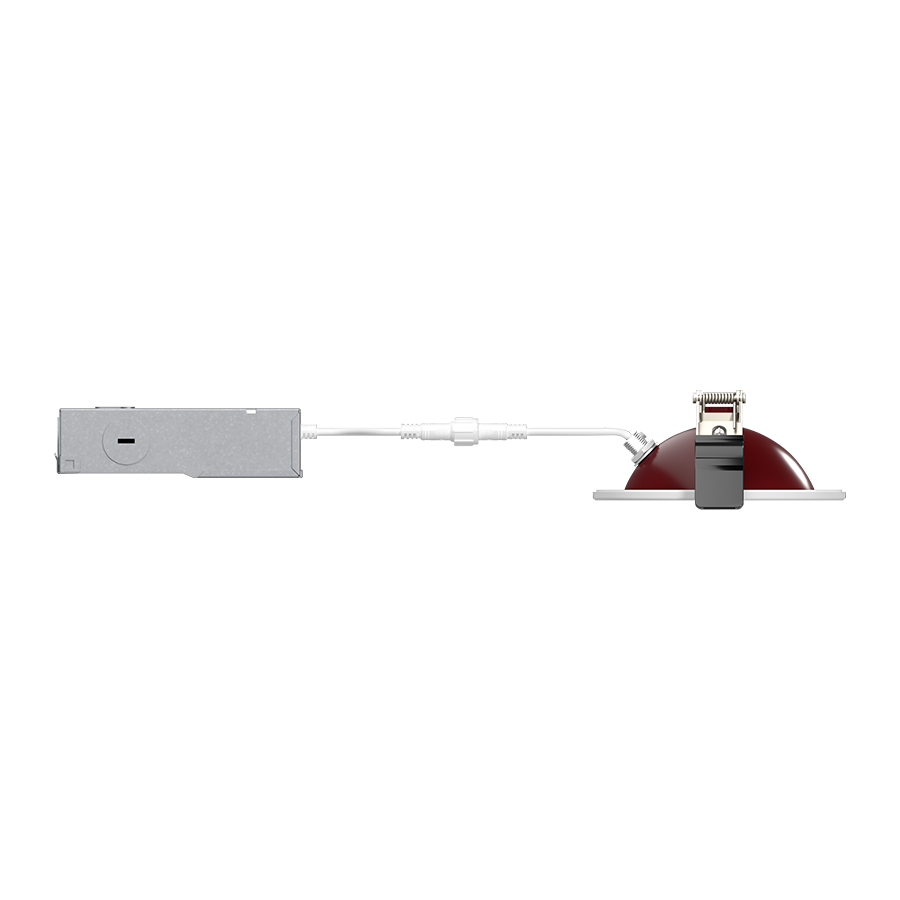

Remote Driver/Junction Box
Die formed metal driver / junction box with captive hinged junction box cover. Listed for Maximum of (4) 12AWG through branch circuit conductor suitable for 90°C permitted in box. Easy to wire in 2in/2out (plus ground) applications. (4) conduit pry-outs. (3) quick snap-in connectors for quick and reliable line voltage connections. Integral mounting facilitates direct mounting to building structure or mounting frame.
Mounting
Recessed
Construction
Size
4"
Shape
Round
Finish
White+Red
Enclosure Material
Metal
Trim Style
Smooth
Lens Finish
Frosted
Lens
Single optic and full face lens for precise beam angle control
Compliance
Listings
UL Listed
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IC Rated
Suitable for direct contact with insulation.
Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
Air Tight
Housing certified Air Tight as per ASTM-E283
Energy Star Approved
This product is ENERGY STAR® Certified.
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
NEC Compliant
Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Other
Compatible Accessories
EXTCBL-FA-6
6' Extension cabler
EXTCBL-FA-12
12' Extension cable
EXTCBL-FA-20
20' Extension cable
DRI-EMB-15S-LV
2-n-1 Driver + Battery Backup
6' Extension cabler
EXTCBL-FA-12
12' Extension cable
EXTCBL-FA-20
20' Extension cable
DRI-EMB-15S-LV
2-n-1 Driver + Battery Backup
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
