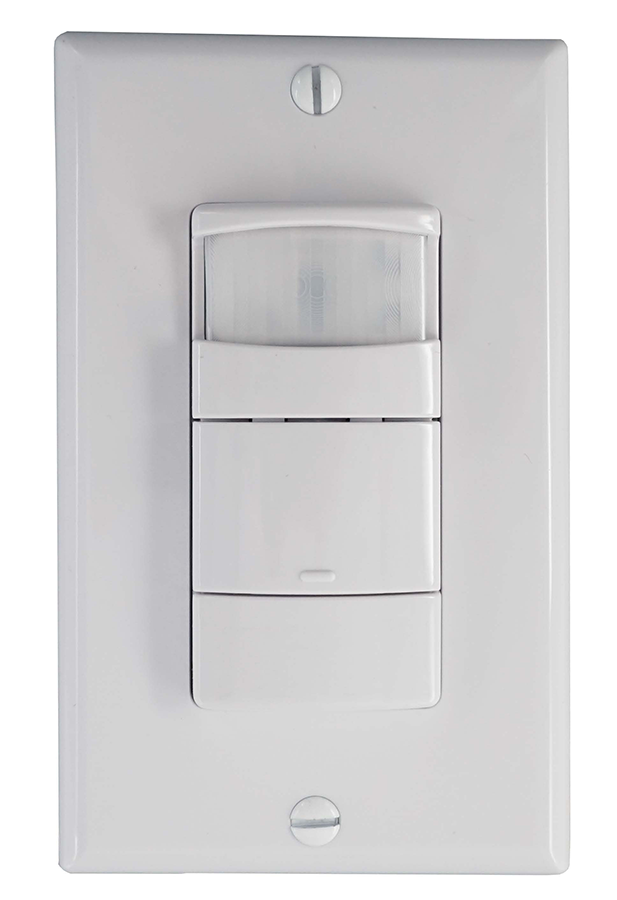

LOS1000W/120

Spec Sheet Instructions Spec Sheet

LOS1000W/120

Full 180° view

LED detection indicator

Tough, vandal resistant lens

Fits decorator wall plates

Control panel cover only removable with wall plate to prevent tampering

Manual off/auto switch

Vandal proof sensor for schools, gyms and high abuse areas

View Technical Specs

View Price & Availability

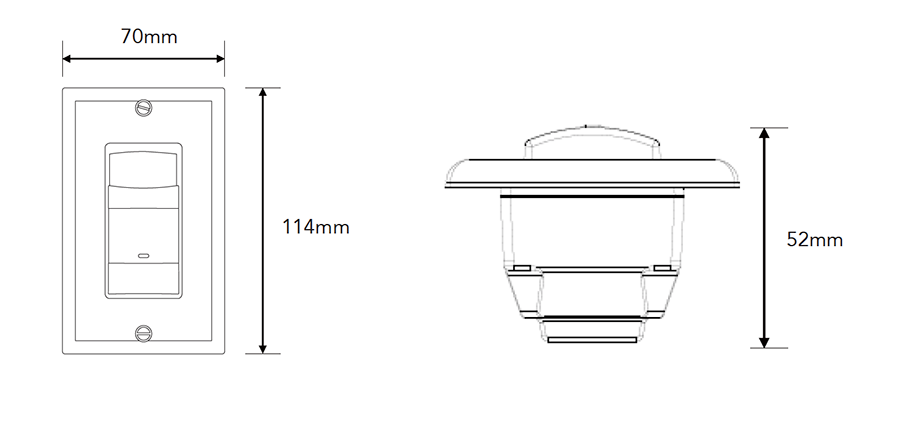

Dimensions

Weight: 0.3 lbs

Technical Specifications

Performance

Product Type

In-wall PIR Sensor

Operation Mode

Occ Mode / Vac Mode

Electrical

Rated Voltage

120V, 50/60Hz

Rated Loaded

Tungsten: 1000W@120VAC
E-ballast: 600W@120VAC, 800W@277VAC
Motor: 1/2HP@120VAC, 1HP@250VAC

Operating Temperature

-20℃C to 45℃C (-4℃F to 113℃F)

Sensor Settings

Detection Range

1,200 sq. ft @ 4 ft height
46 ft front x 26 ft sides

Detection Angle

180℃

Time Setting

30 sec - 30 min

Lux Setting

5 - 1000 lux

Detection Technology

PIR

Test Mode

Yes

Override Switch

Yes, with Override Switch

Compliance

Agency Certificate

UL / FCC

Directive Compliance

RoHS, REACH

Construction

Dimensions (W x H x D)

2.76" x 4.49" x 1.89"

Other

1-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of one (1) year from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
