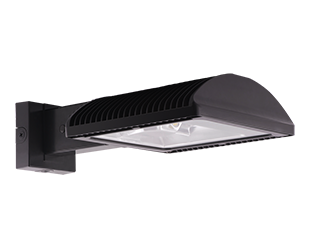

WPLEDC52N/BL
WPLEDC52N/BL
- High performance LED light engine
- Maintains 70% of initial lumens at 100,000-hours
- Weatherproof high temperature silicone gaskets
- Superior heat sinking with die cast aluminum housing and external fins
- Replaces 250W MH
- Traditional wall pack look from the front
- 3 cutoff options
- 5-Year, No-Compromise Warranty
Performance
| Watts | 52W |
| Color Temp | 4000K (Neutral) |
| Lumens | 7,334 lm |
| Efficacy | 130 lm/W |
| Color Accuracy | 76 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.51A |
| 208V | 0.33A |
| 240V | 0.29A |
| 277V | 0.24A |
| Input Watts | 56.4W |
Dimensions
Weight: 17.6 lbs
Technical Specifications
Other
WPLEDC52 with Bi-Level Operation
Allows 50% and 100% output modes
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Patents
The WPLED design is protected by patents in the U.S. Pat D653,377, Canada Pat. 142252, China Pat. ZL201130356930.8, and Mexico Pat. 36921 and pending patent in TW.
Replacement
Replaces 250W HID
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 250W Metal Halide
LED Characteristics
LEDs
Two (2) multi-chip, high-output, long-life LEDs
Color Consistency
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Ambient Temperature
Suitable for use in up to 40°C (104°F)
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Thermal Management
Cast aluminum Thermal Management system for optimal heat sinking. The WPLED is designed for cool operation, most efficient output and maximum LED life by minimizing LED junction temperature.
Housing
Precision die-cast aluminum housing, lens frame
Arm
Die-cast aluminum with wiring access plate
Cutoff
Cutoff (7.5°)
Reflector
Specular vacuum-metallized polycarbonate
Gaskets
High-temperature silicone
Lens
Tempered glass
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Electrical
Driver
Constant Current, 720mA, Class 2, 100 - 277V, 50 - 60 Hz, 100 - 277VAC .8 Amps.
THD
5.73% at 120V, 8.02% at 277V
Power Factor
99.1% at 120V, 97.3% at 277V
Surge Protection
6kV
Installation
Mounting
Die-cast aluminum wall bracket with (5) 1/2" conduit openings with plugs. Two-piece bracket with tether for ease of installation and wiring.
Optical
BUG Rating
B1 U1 G1
