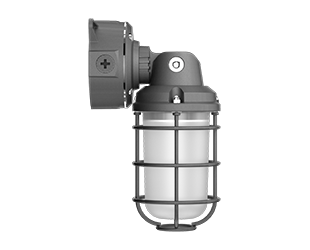

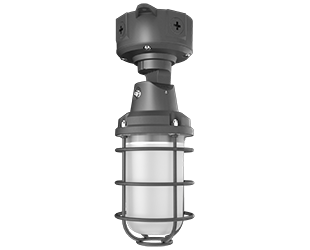

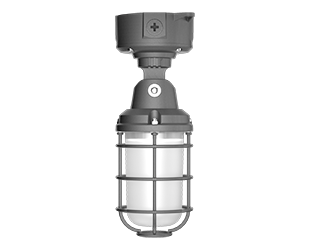

VXRGB26
26W RGB/5000K
- 100,000-Hour LED lifespan
- IP65 rating protects against dust and water
- 5-Year, Limited warranty
Performance
| Watts | 26/18/12W |
| Color Temp | RGB/5000K |
| Lumens | 268-3,151 lm |
| Efficacy | 22.6-121.5 lm/W |
| Color Accuracy | 84 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.23A/0.15A/0.10A |
| 208V | 0.14A/0.09A/0.06A |
| 240V | 0.12A/0.08A/0.06A |
| 277V | 0.11A/0.07A/0.05A |
| Input Watts | 9-27.9W |
Dimensions
Weight: 2.8 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
26/18/12W(factory default 18W)
Color Temperature Selectable:
RGB and 5000K (factory default 5000K
Daylight Sensor (factory default: off)
26/18/12W(factory default 18W)
Color Temperature Selectable:
RGB and 5000K (factory default 5000K
Daylight Sensor (factory default: off)
Compliance
UL Listed
Suitable for wet locations
IP Rating
Ingress protection rating of IP65 for dust and water
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Color Consistency
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C38.377-2011.
Construction
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Ambient Temperature
Suitable for use in up to 45°C (113°F)
Housing
Die-cast aluminum
Reflector
Polycarbonate
Gaskets
High-temperature silicone
Lens
Polycarbonate lens
Green Technology
Mercury and UV free. RoHS-compliant components.
Finish
Natural shot blasted aluminum
Installation
Mounting
Three 1/2" NPS conduit entry points
Electrical
Driver
26W: Constant Current, Class 1, 50/60 Hz, 120-277V, 120V: 0.23A, 208V: 0.14A, 240V: 0.12A, 277V: 0.11A
18W: Constant Current, Class 1, 50/60 Hz, 120-277V, 120V: 0.15A, 208V: 0.09A, 240V: 0.08A, 277V: 0.07A
12W: Constant Current, Class 1, 50/60 Hz, 120-277V, 120V: 0.10A, 208V: 0.06A, 240V: 0.06A, 277V: 0.05A
18W: Constant Current, Class 1, 50/60 Hz, 120-277V, 120V: 0.15A, 208V: 0.09A, 240V: 0.08A, 277V: 0.07A
12W: Constant Current, Class 1, 50/60 Hz, 120-277V, 120V: 0.10A, 208V: 0.06A, 240V: 0.06A, 277V: 0.05A
THD
4.91% at 120V, 17.7% at 277V
Power Factor
98.9% at 120V, 85.8% at 277V
Photocell
Built-in daylight sensor
Surge Protection
4kV
Aux Power Supply
No
Dim to Off
No
Optical
BUG Rating
26W: B1 U3 G2
18W: B1 U3 G1
12W: B1 U3 G1
18W: B1 U3 G1
12W: B1 U3 G1
Other
5 Yr Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Buy American Act Compliance
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
