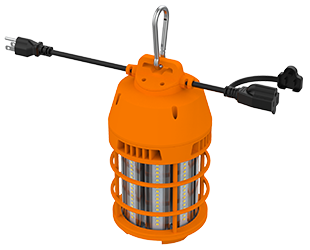

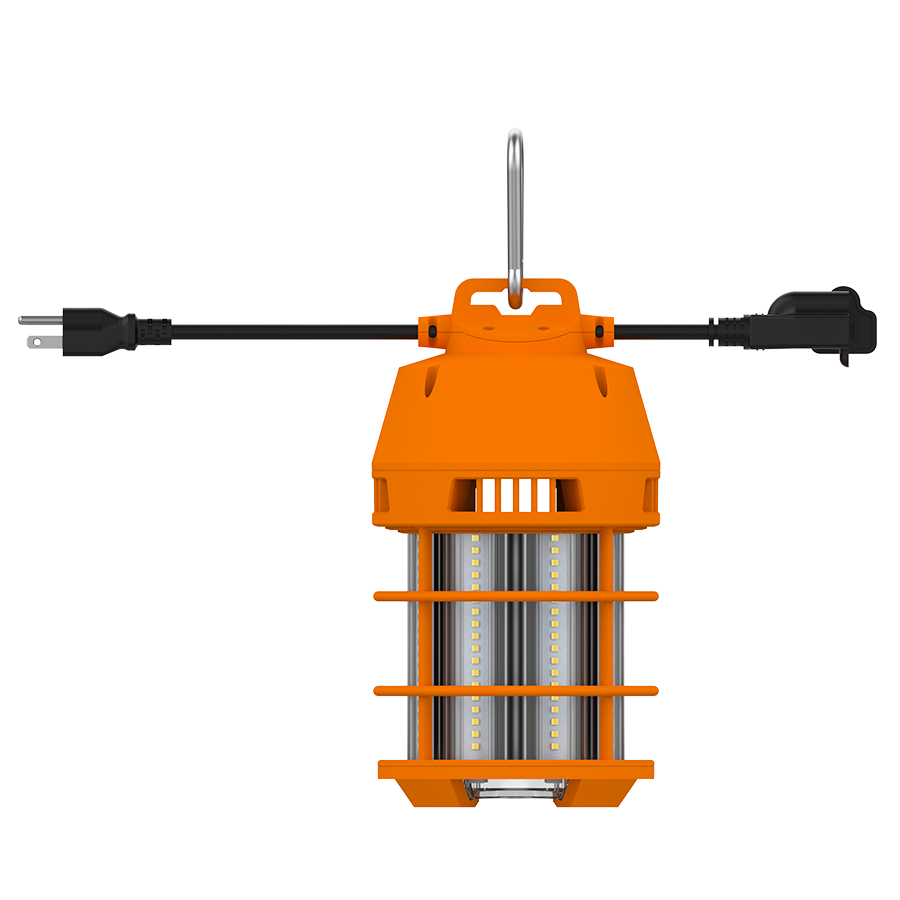

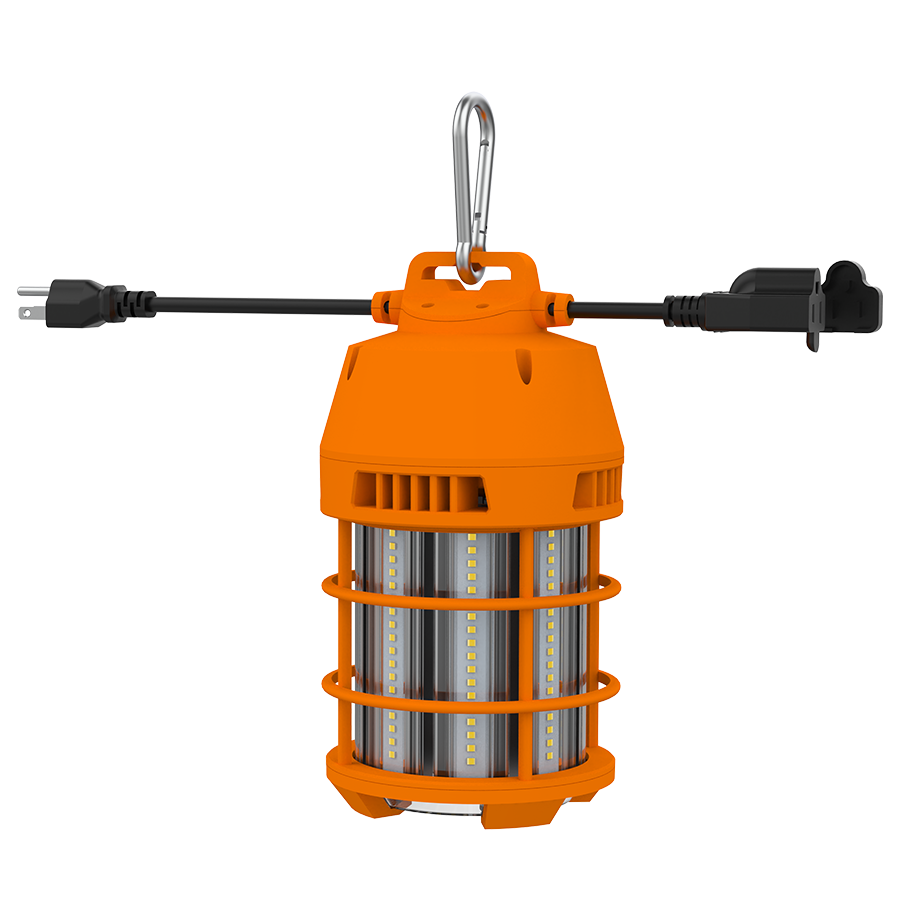

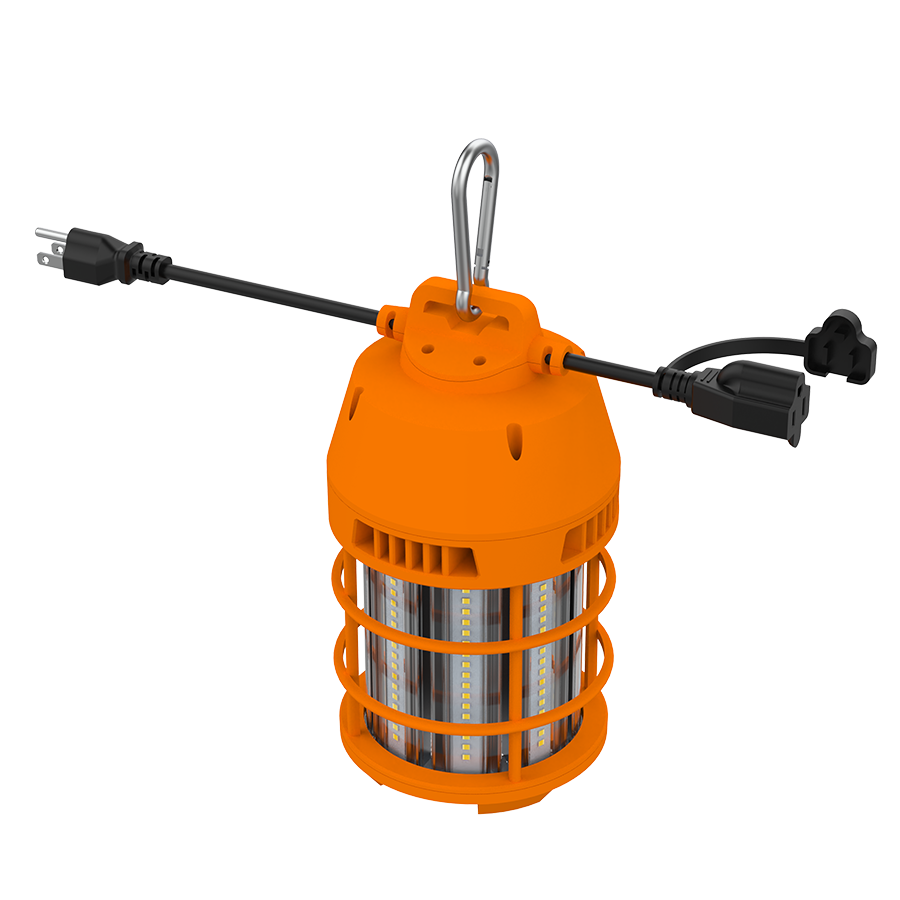

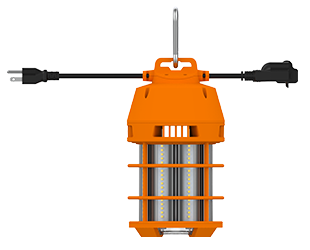

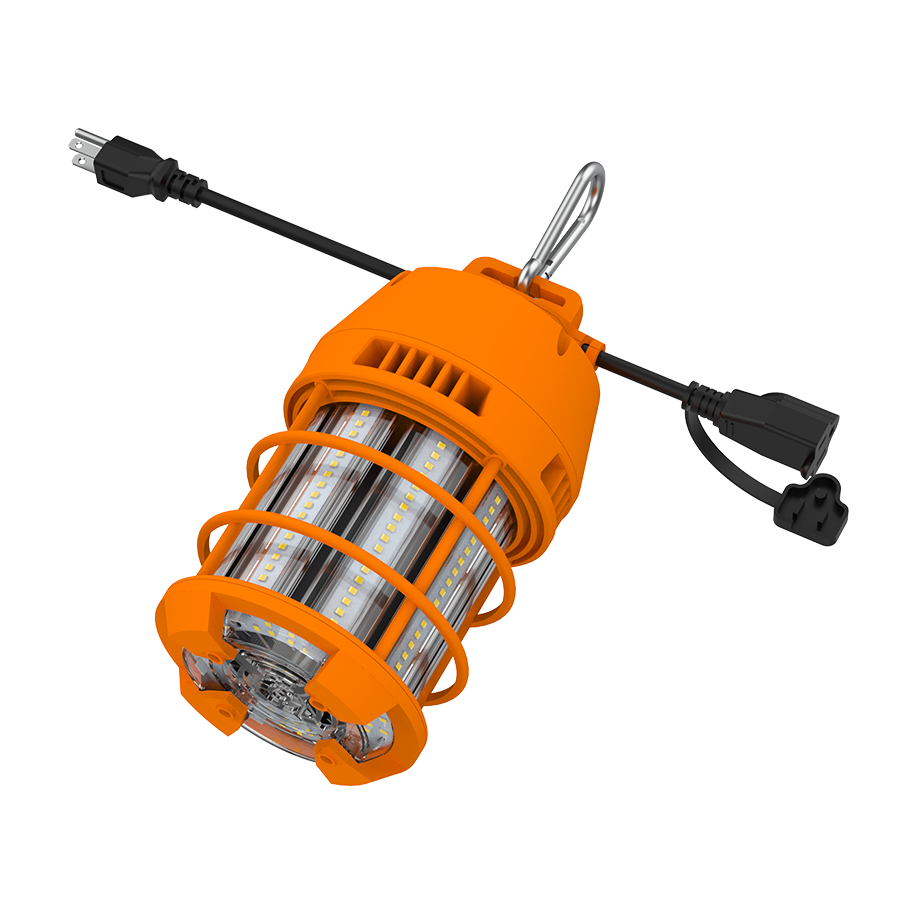

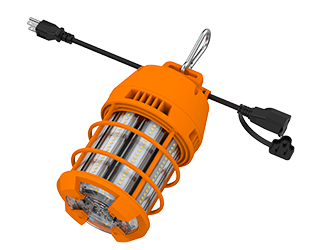

TEMP17-100
TEMP17-100
- Impact resistant, can handle demanding construction site environments
- Omnidirectional light distribution
- Lightweight design with high output

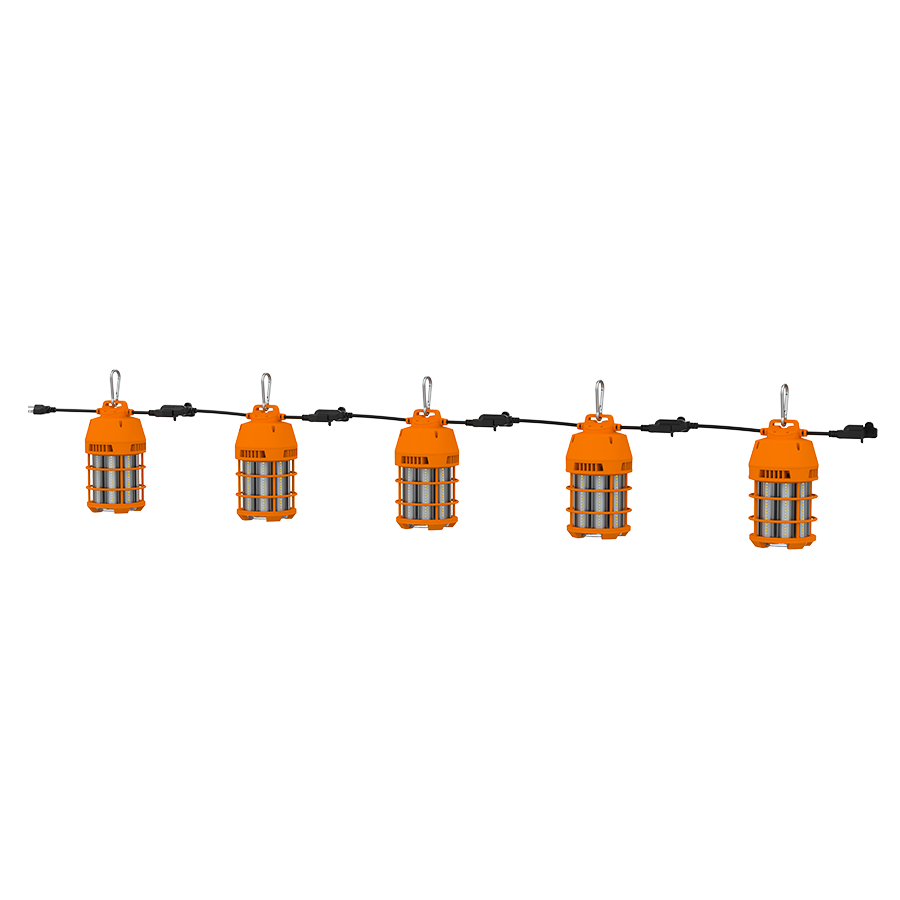

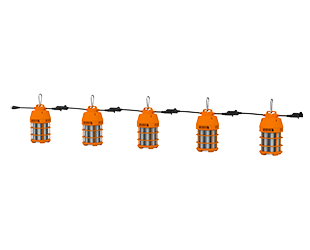

- US cord+plug, linkable up to 600W Max
- IP64, 4kV Surge Protection, 30,000Hour Lifespan, 3-Year Limited Warranty
Performance
| Watts | 100W |
| Color Temp | 5000K |
| Lumens | 12,000 lm |
| Efficacy | 120 |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 30,000 Hours |
| Input Voltage | 120-277V |
| Power Factor | 0.9 |
| Flicker | 30% |
| THDi | 20% |
Dimensions
Weight: 3.8 lbs
Technical Specifications
Performance
Product Type
Temp Light
Description
Budget-Friendly Temporary construction site lighting that doesn't sacrifice on lumen output
Wattage Equivalency
400W Metal Halide
Input Wattage
100W
Lumens
12,000lm
Efficacy
120lm/W
L70 Lifespan
30,000-hour LED lifespan based on IES LM-70 results
Electrical
THD
20%
Power Factor
0.9
Dimmable
No
Input Voltage
120-277V
Operating Frequency
50/60Hz
Input Current @ 120V (mA)
859mA
Input Current @ 208V (mA)
511mA
Input Current @ 240V (mA)
458mA
Input Current @ 277V (mA)
401mA
Operating Temperature
-22°F to 140°F (-30°C to 60°C)
Maximum Beam Candela Power (MBCP)
1,248
Flicker
30%
Surge Protection
4kV
LED Characteristics
Beam Angle
360°
Color Temperature
5000K
Color Accuracy (CRI)
80 CRI
R9 Value
High color performance with R9 no greater than 0
Color Consistency
<6-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Installation
Cord & Plug
US Plug, 6FT cord
Construction
Length
6 ft 18AWG/3 cable
linkable up to 600W
linkable up to 600W
Shape
HID
Finish
Orange
Enclosure Material
Polycarbonate
Lens Finish
Clear with orange plastic protective cage
Compliance
Listings
UL Listed
Environment
Suitable for use indoors in dry and damp environments.
IP Rating
IP64
Energy Star Approved
No
DLC Listed
No
Certification Model Number
H20046(TEMP17-100)
California Title 20 Compliant
No
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
NSF Listed
No
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
3 Yr Limited Warranty
The RAB 3-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty
\
