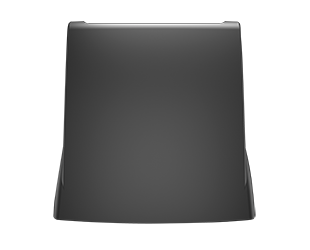

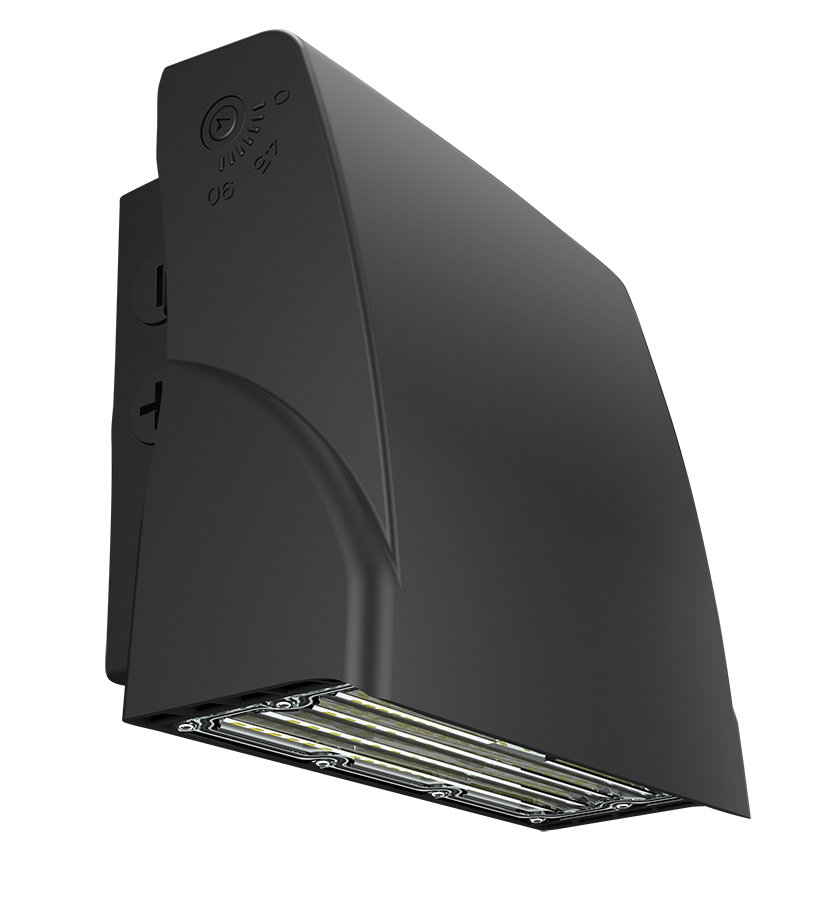

SLIM17FA15ADJ

Spec Sheet IES File LM79 Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

SLIM17FA15ADJ

15W 3000K/4000K/5000K

Selectable CCT

Adjustable cutoff

Integrated photocell

0-10V dimming, standard

View Technical Specs

View Price & Availability

Performance

Watts	15W
Color Temp	3000K/4000K/5000K
Lumens	1761/1904/1852 lm
Efficacy	124/136.2/130.3 lm/W
Color Accuracy	70 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.13A
208V	0.07A
240V	0.06A
277V	0.05A
Input Watts	14.2/14/14.2W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 3.0 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Color temperature selectable by 3000K, 4000K and 5000K

Compliance

UL Listed

Suitable for wet locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

Ingress protection rating of IP65 for dust and water

DLC Listed

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities.
DLC Product Code: PL0MVJOV62Q3

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Wattage Equivalency

Equivalent to 70W Metal Halide

LED Characteristics

LEDs

Long-life, high-efficiency, surface-mount LEDs

Electrical

Driver

Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.13A, 208V: 0.07A, 240V: 0.06A, 277V: 0.05A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

Photocell

120-277V Integrated button photocell included.

Surge Protection

L-N:2.5 kV,L/N-GND:2.5 kV

Construction

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Ambient Temperature

Max Power Temp Rating: 122°F ( 50°C)
Middle Power Temp Rating: 122°F ( 50°C))
Low Power Temp Rating: 122°F ( 50°C)

Housing

Precision die-cast aluminum housing and door frame

Lens

Polycarbonate lens

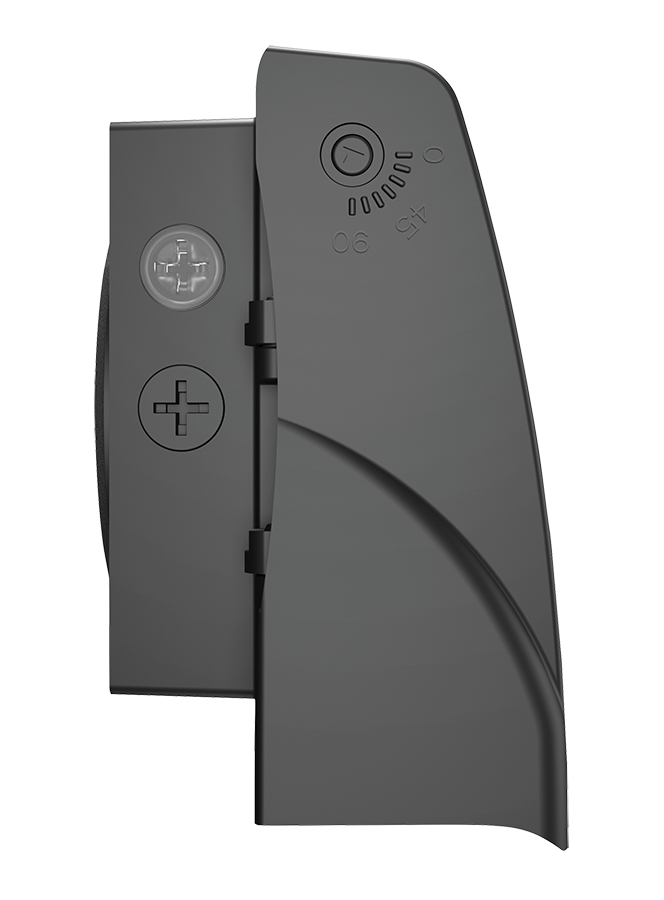

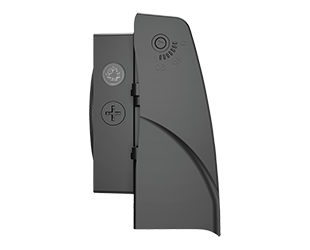

Cut Off

Adjustable from 0° (full cutoff) to 90°. 7 settings at 15° each.

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

Hinged wiring access and conduit entries on the back, sides, top and bottom make installation a snap

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
