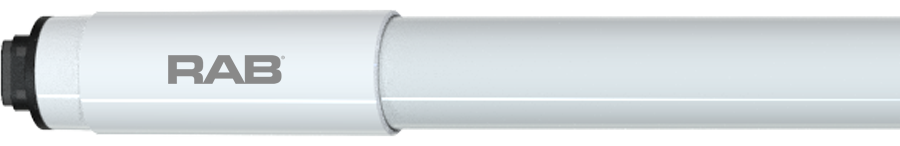

T8HO-40-96G-R17D-830-DE-BYP

Spec Sheet LM79 Instructions FCC Caution Spec Sheet

Replacement for conventional fluorescent T8 and T12 linear tubes

Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast

Double ended wiring method

Works with shunted sockets.

Approximately 50% more energy efficient when compared to Fluorescent T8 lamps

50,000 hour Lifespan.

Rated for use in enclosed and open fixtures in dry or damp locations

Diffused frosted lens will maintain the same light quality over time

Instant on full brightness

Environmentally friendly, no mercury used

NSF Listed: NSF/ANSI Standard 2 - Food Equipment - Splash Zone (Not for Direct Food Zone without additional fixture considerations)

Internal thermal fuse for added safety

Emergency back up available

View Technical Specs

View Price & Availability

Performance

Watts	40W
Color Temp	3000K
Lumens	5,500 lm
Efficacy	133
Color Accuracy	82 CRI
L70 Lifespan	50,000 Hours

Input Voltage	120-277V
Power Factor	0.9
Flicker	50%
THDi	≤20+5%

Dimensions

Weight: 0.9 lbs

Technical Specifications

Performance

Product Type

Linear

Input Wattage

40W

Lumens

5,300lm

Efficacy

133lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Wattage Equivalency

86W Fluorescent

Compliance

UL Listed

Suitable for damp locations

Enclosed Fixtures

Suitable for use in enclosed fixtures

LED Characteristics

Color Temperature

3000K

Color Accuracy (CRI)

82 CRI

Beam Angle

210°

Electrical

THD

≤20+5%

Power Factor

0.9

Dimmable

Yes, 0-10V

Flicker

50%

Operating Temperature

-20°C to 45°C (-4°F to 113°F)

Input Voltage

120-277V

Operating Frequency

50/60Hz

Construction

Bulb Shape

Endcap Material

Plastic

Enclosure Material

Glass

Installation

Base Type

R17d

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
