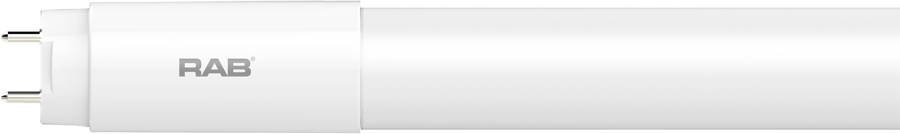

T8-14-48G-850-SE-BYP-DIM

Spec Sheet Compatibility List Instructions FCC Caution Spec Sheet

Replacement for conventional fluorescent T8 and T12 linear tubes

Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast

Approximately 50% more energy efficient when compared to Fluorescent T8 lamps

Works with non-shunted sockets ONLY.

Separate wiring harness and socket kit accessory available

50,000 hour Lifespan

Rated for use in enclosed and open fixtures in dry or damp locations

Diffused frosted lens will maintain the same light quality over time

Instant on full brightness

Environmentally friendly, no mercury used

NSF Listed: NSF/ANSI Standard 2 - Food Equipment - Splash Zone (Not for Direct Food Zone without additional fixture considerations)

Compatible with RAB specified 0-10V dimming system

View Technical Specs

View Price & Availability

Performance

Watts	14W
Color Temp	5000K
Lumens	1,800 lm
Efficacy	128.6 lm/W
Color Accuracy	80 CRI
L70 Lifespan	50,000 Hours

Input Voltage	100-277V
Power Factor	>0.9
Flicker	N/A
THDi	N/A

Dimensions

Weight: 0.6 lbs

Technical Specifications

Performance

Product Type

Linear

Input Wattage

14W

Lumens

1,800lm

Efficacy

130lm/W

L70 Lifespan

50,000 Hours

Wattage Equivalency

32W Fluorescent

Construction

Material

Glass

Shape

Nominal Length

4 ft

Finish

Frosted

For Use Outdoors in Open Fixtures

LED Characteristics

Color Temperature

5000K Daylight

Color Accuracy (CRI)

80 CRI

Beam Angle

180°

Installation

Base Type

G13

Installation Type

Type B, Single Ended wiring

Electrical

THD

≤25%

Power Factor

>0.9

Operating Temperature

-20°C to 45°C (-4°F to 113°F)

Dimming

Yes with 0-10V dimmer. See Dimmer Compatibility List.

Input Voltage

100-277V

Operating Frequency

50/60Hz

Input Current @ 120V

135mA

Input Current @ 277V

max 55mA

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Compliance

UL Recognized

Yes

UL Classified

Yes

NSF Listed

Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.

Certification Model Number

T10039

California Energy Commission (CEC) Status

Lawful for Sales in California

Application

Suitable for damp locations and totally enclosed fixtures.

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
