T8-39.5-96P2S-865-DE-BYP
T8-39.5-96P2S-865-DE-BYP

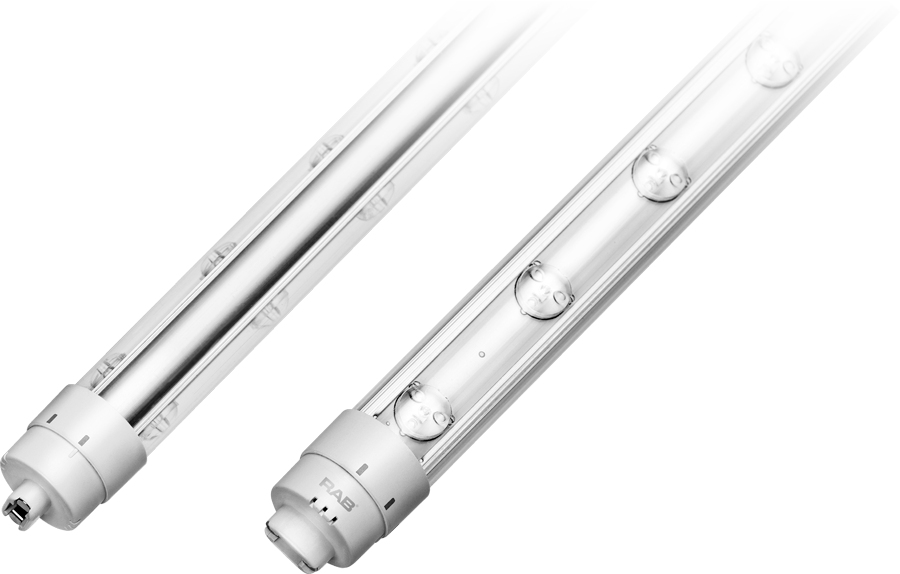

- LEDs located on both sides of the tube provides 360-degree light output
- Optics designed to deliver smooth even light without hot spots
- Multiple lengths available for any application needed
- 120V-277V - Universal voltage
- Ambient temperature: -20°C/-4°F to 55°C/131°F
- Rotatable endcaps allow installer to direct light where needed
- Robust plastic and aluminum construction to minimize breakage
- Mercury and UV free. RoHS-compliant components.
- Double-ended bypass installation for simple install and reduced maintenance costs
Performance
| Watts | 39W |
| Color Temp | 6500K |
| Lumens | 5,200 lm |
| Efficacy | 131.6 lm/W |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | 120-277V |
| Power Factor | >0.9 |
| Flicker | N/A |
| THDi | <20% |

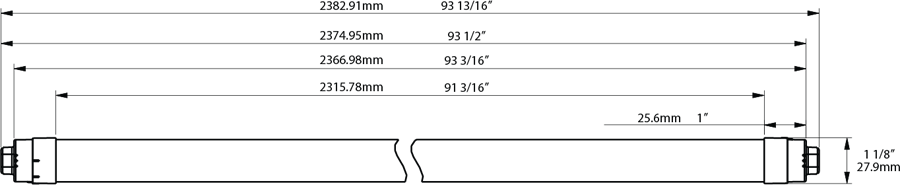

Dimensions
Weight: 1.8 lbs
Technical Specifications
Performance
Product Type
Linear
Input Wattage
39.5W
Lumens (Nominal)
5,200lm
Efficacy
131lm/W
L70 Lifespan
50,000 Hours
Accessories
Construction
Material
Plastic and Aluminum
Shape
T8
Nominal Length
8 ft
Finish
Clear
Installation
Base Type
R17d
Installation Type
Type B, Ballast Bypass
LED Characteristics
Color Temperature
6500K Daylight Deluxe
Color Accuracy (CRI)
80 CRI
Electrical
THD
<20%
Power Factor
>0.9
Operating Frequency
50/60Hz
Dimmable
No
Input Voltage
120-277V AC
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Compliance
UL Listed
Suitable for damp locations. Suitable for use in enclosed fixtures. Listed in SAM Manual.
California Energy Commission (CEC) Status
Lawful for Sales in California
Application
Suitable for damp locations and totally enclosed fixtures.
