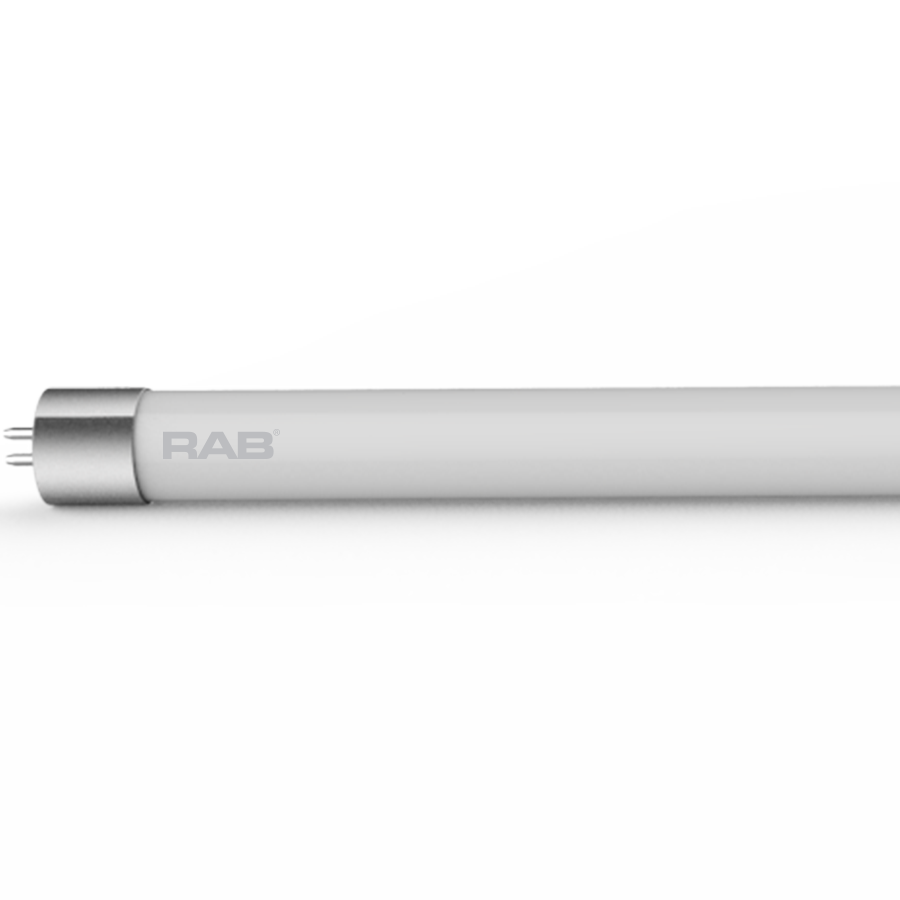

T5HO-16-36G-835-SD-BYP
T5HO-16-36G-835-SD-BYP
- Replacement for conventional fluorescent T5HO tubes
- Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
- Single and double ended wiring method works with both shunted and non-shunted sockets
- Environmentally friendly, no mercury used
- NSF Listed: NSF/ANSI Standard 2 - Food Equipment - Splash Zone (Not for Direct Food Zone without additional fixture considerations)
Performance
| Watts | 16W |
| Color Temp | 3500K |
| Lumens | 1,900 lm |
| Efficacy | 119 |
| Color Accuracy | 82 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | 120-277V |
| Power Factor | >0.9 |
| Flicker | N/A |
| THDi | <25% |
Dimensions
Weight: 0.3 lbs
Technical Specifications
Performance
Product Type
Linear Tube
Wattage Equivalency
39W T5HO Fluorescent
Input Wattage
16W
Lumens
1,900lm
Efficacy
119lm/W
Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
THD
<25%
Power Factor
>0.9
Dimmable
Yes, although this lamp is not suggested for dimming applications
Input Voltage
120-277V
Operating Frequency
50/60Hz
Input Current @ 120V (mA)
250mA
Input Current @ 208V (mA)
65mA
Input Current @ 240V (mA)
75mA
Input Current @ 277V (mA)
65mA
Operating Temperature
-4°F to 113°F (-20°C to 45°C)
LED Characteristics
Color Temperature
3500K
Color Accuracy (CRI)
82 CRI
R9 Value
High color performance with R9 greater than 0
Color Consistency
<5-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Installation Method
UL Type B
Base Type
G5
Construction
Nominal Length
3 ft
Bulb Shape
T5HO
Endcap Material
Metal
Enclosure Material
Glass
Lens Finish
Frosted
Compliance
Listings
UL Recognized, UL Classified
Environment
Suitable for use in dry and damp environments
Fixture Rating
Suitable for use in enclosed fixtures
DLC Listed
No
Certification Model Number
T20062(T5HO-16-36G-835-SD-BYP)
California Energy Commission (CEC) Status
Lawful for Sales in California
NSF Listed
Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
Other
Compatible Products
See Dimmer and Ballast compatibility lists.
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
\
