R16SPF - RAB Lighting

R16SPF

Spec Sheet Instructions Spec Sheet

R16SPF large main

R16SPF

Reflectors tailor the Haybay to specific applications:

Downlight only, uplight + downlight, and high or low mounting heights.

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

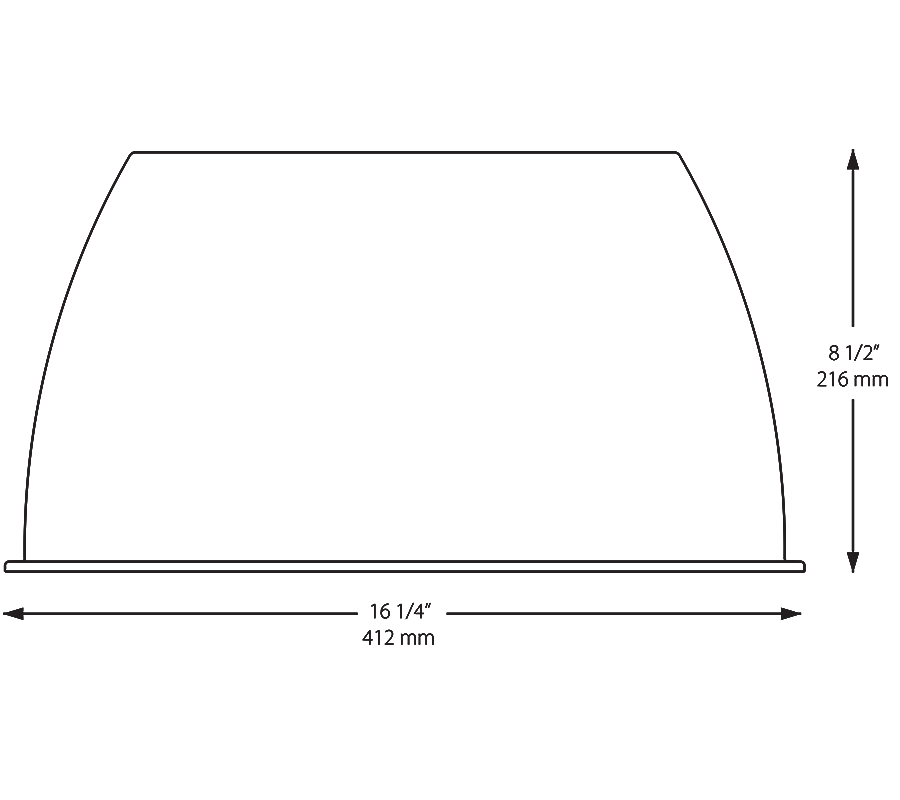

Dimensions

Link to Dimension Drawing

Weight: 1.1 lbs

Technical Specifications

Compliance

UL Listed

Suitable for damp locations

Construction

Reflector

Short Frosted Prismatic Acrylic Reflector 8.5 high

Reflector Component

This component must be ordered with HAYBAY fixture to make a complete fixture. See here for HAYBAY fixtures.

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Maximum Ambient Temperature

Suitable for use 12 hours a day, 5 days a week in up to 50°C and for 24/7 use in up to 40°C
