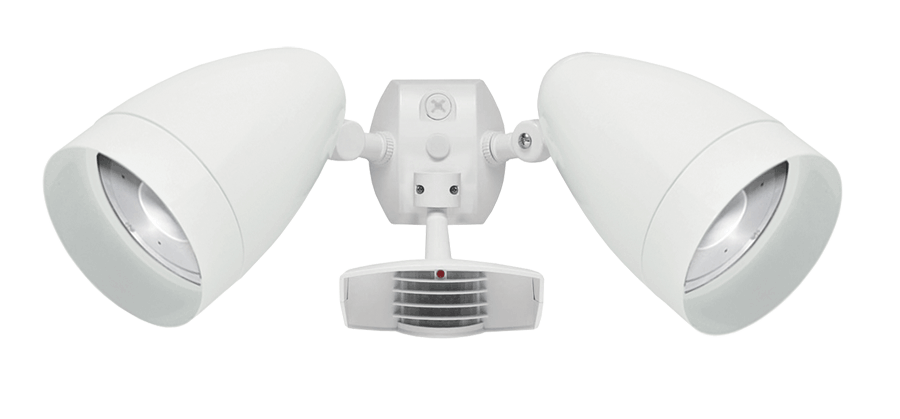

STL1HBLED2X13NW
STL1HBLED2X13NW
- Radio frequency immunity
- 6000 volt surge protection
- 1000 Watt switching capacity
- Pre-wired and pre-assembled on CU4 universal EZ plate
- Protected manual override with auto reset
- Can be wired in parallel
Performance
| Watts | 26W |
| Color Temp | 4000K (Neutral) |
| Lumens | 2,518 lm |
| Efficacy | 88 lm/W |
| Color Accuracy | |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.6A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 28.6W |
Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for mounting within 4 ft (1.2m) of the ground.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 90W PAR Floodlight
Construction
Swivels
Fully adjustable with sure-grip locks. 1/2" NPS threaded arm with serrated locking swivel fits all standard mounting covers. Color matched EZ Grip lock nuts. Stainless steel screw.
Housing
Precision die-cast aluminum housing
Gaskets
High-temperature Silicone
Finish
Formulated for high durability and long-lasting color
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Other
10-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of ten (10) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Patents
LFLOOD thermal Management technology is protected under utility patents pending in the U.S., Canada and China.
LED Characteristics
Color Consistency
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Electrical
Surge Protection
4 kV
Drivers(2)
Multi-chip 13W high output long life LED Driver Constant Current, Class 2 100V - 277V, 50/60 Hz
Sensor Settings
Sensor Time Adjustment
5 seconds to 12 minutes
Sensor Surge Protection
Withstands up to 6000 volts
Sensor Wide Sensitivity Control
Adjustable from 100% to 30%
Sensor Temperature Compensation
Sensitivity adjusts automatically for consistent detection in hot and cold ambient temperatures
Sensor Wall Switch Manual Override
Two flip logic prevents activation by momentary power outages. Override resets to auto at dawn. No extra wiring needed.
Sensor LED Detection Indicator
Shows when sensor is detecting in daytime and glows red at night for "on-guard" deterrence
Sensor Advanced Detection Logic
Minimizes false triggers
Recently Viewed Products
HALV10L927-CW-S/BL
Architectural 351 Lumens Halv Forward Light 14W 90Cri 2700K Crushed Polar White Silver Finish Bi-Level Control

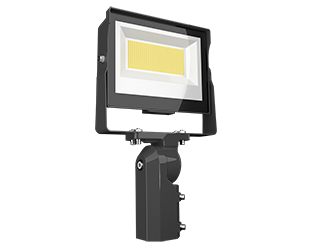

X17XFU60SF
Floodlights 3891-8372 Lumens X17 Adjustable 60/50/30W Field Adjustable Cct 5000/4000/3000K Slipfitter Bronze

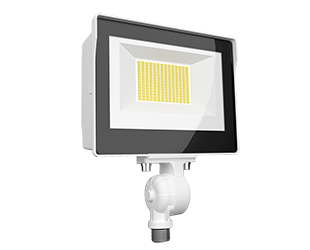

X17XFU35W
