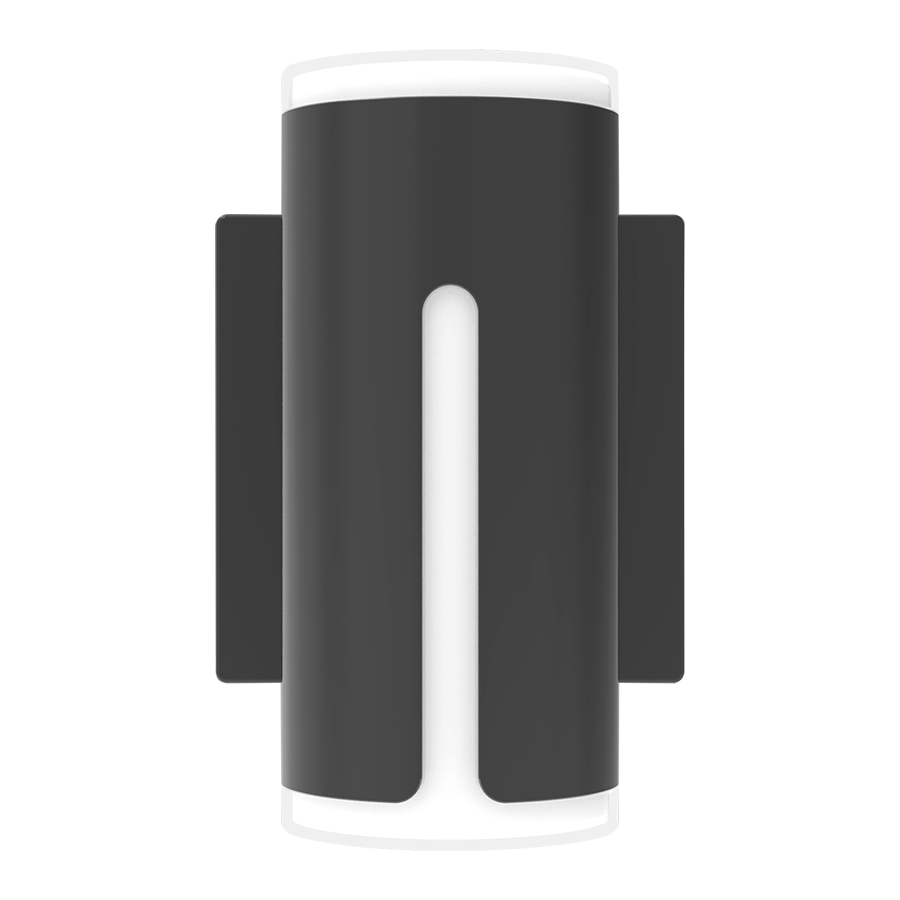

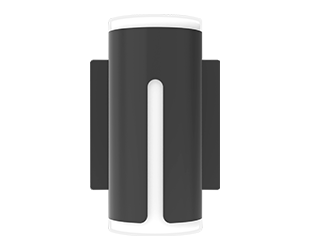

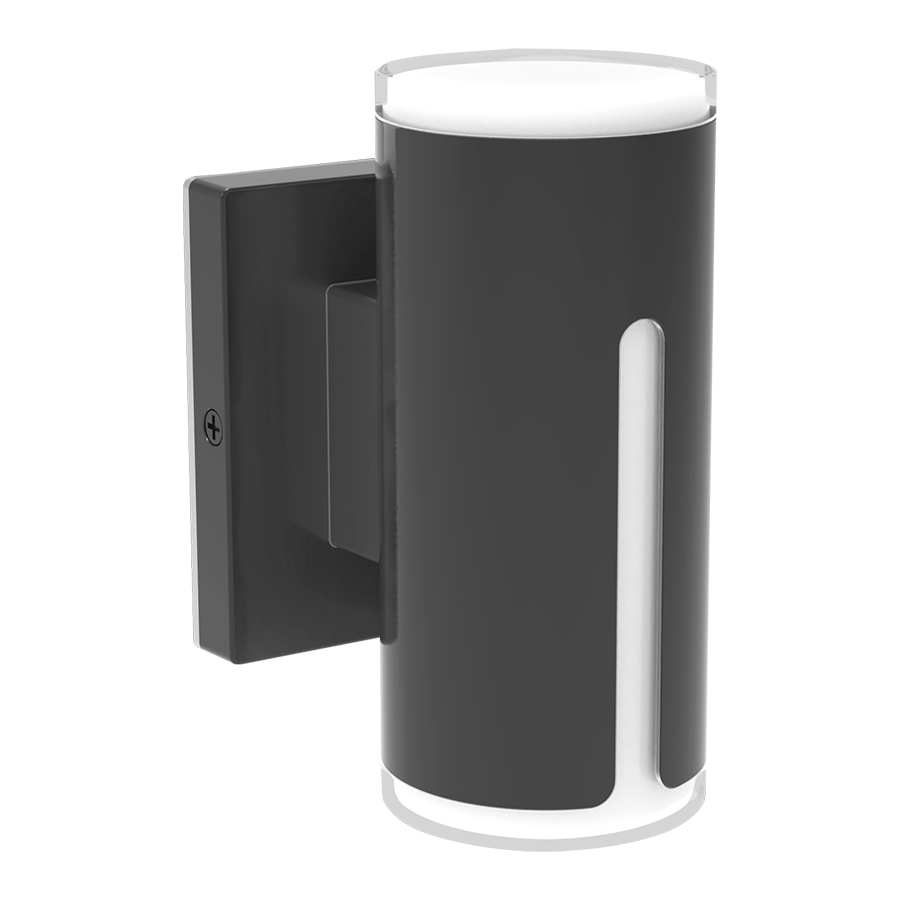

SA-SLWP/RGB
Performance
| Watts | 8W |
| Color Temp | Tunable White 2200-4000K |
| Lumens | |
| Efficacy | 2.2-38.6 lm/W |
| Color Accuracy | 54-84 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.07A |
| 208V | 0.04A |
| 240V | 0.04A |
| 277V | 0.04A |
| Input Watts | 2.26-7.95W |
Dimensions
Weight: 3.2 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IP Rating
Ingress protection rating of IP65 for dust and water
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
LED Characteristics
LEDs
Long-life, high-efficacy, discrete, surface-mount LEDs
Color Tuning
Yes, 2200K-4000K and 16+ million colors to choose from using the Lightcloud Blue mobile app.
Default Setting at 3000K.
Default Setting at 3000K.
Color Consistency
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.07A, 208V: 0.04A, 240V: 0.04A, 277V: 0.04A
THD
10.7% at 120V, 25.6% at 277V
Power Factor
97.5% at 120V,25.6% at 277V
Dim to Off
No
Aux Power Supply
No
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 113°F (45°C)
Housing
Die-cast aluminum
Lens
Polycarbonate lens
Gaskets
High-temperature silicone
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Octangular J-Box or bracket for the wall-mount (J-Box not provided)
Lightcloud
Light Shows
No, this product is not compatible with dynamic color changing Light Shows. Contact RAB for more information.
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
