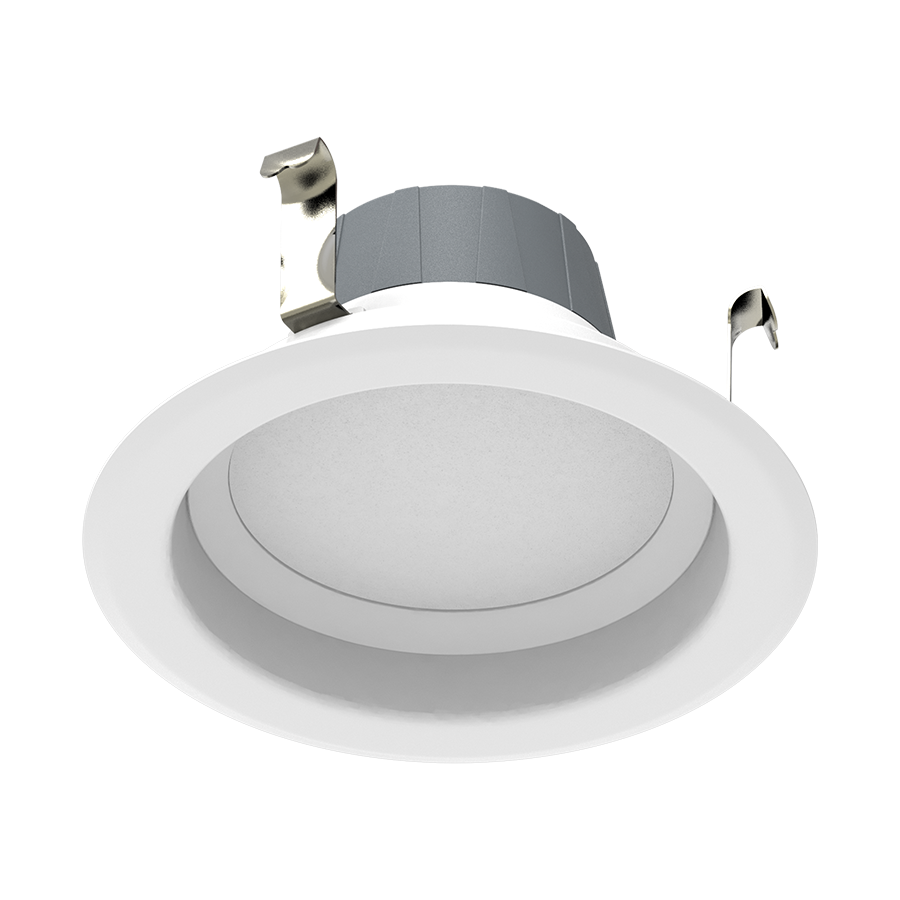

R4R8950120WS
R4R8950120WS
- High Performance LEDS up to 100 lm/w
- Use to replace up to 100W traditional light sources
- Durable metal construction: dent and scratch resistant
- UL wet location rated
- Compatible with most standard recessed housings
- Dimmable down to 5% on compatible dimmers
- Available in Round 4" 850lm and 6" 850lm, 1050lm and 1400lm
- Available in 5 color temperatures: 2700K, 3000K, 3500K, 4000K, & 5000K
- Available in a smooth and baffle trim option
- Color designer trims as optional accessories available
- 5-Year, No-Compromise Warranty
Performance
| Watts | 8W |
| Color Temp | 5000K |
| Lumens | 712 lm |
| Efficacy | 87.5 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 70 |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 8W |
Dimensions
Weight: 0.4 lbs
Technical Specifications
Performance
Product Type
Retrofit
Lumens
700lm
Efficacy
87.5lm/W
Lifespan
50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 65W Incandescent
LED Characteristics
LEDs
LED array provides a uniform source with high efficiency and no pixilation
Color Accuracy (CRI)
90 CRI
Color Temperature
5000K
Electrical
THD
≤20%
Power Factor
≥0.9
Dimmable
TRIAC and ELV (at 120V only).
Input Voltage
120V
Operating Frequency
60Hz
Operating Temperature
-30°C - 40°C
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Construction
Size
4"
Shape
Round
Housing Material
Metal
Finish
White
Trim Style
Smooth Trim
Lens
Regressed lens constructed from impact resistant polycarbonate. Convex lens gives the optic a similar lamp-like appearance.
Provides smooth and diffuse light distribution.
Gaskets
Achieve restrictive airflow requirements without additional caulking
Installation
Base Type
E26 Edison
Mounting
Pre-installed friction clips are designed to fit 4" compatible recessed housings
Compliance
Listings
UL Classified
Environment
Wet
Fixture Rating
Enclosed
Energy Star Approved
ENERGY STAR® Version 2.2 Certified
Energy Star ID
2366454
T20 Compliant
Yes
Lawful for Sale in California
Yes
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
Certification Model Number
DLR0108(R4R8950120WS)
