• 500, 600 & 1350 Watt Switching Capacity
  • New vandal resistant grill
  • 6000 volt surge protection
  • Temperature compensation
  • Protected manual override with auto reset
  • Double look down lens
  • 5-Year Sensor Warranty
View Technical Specs

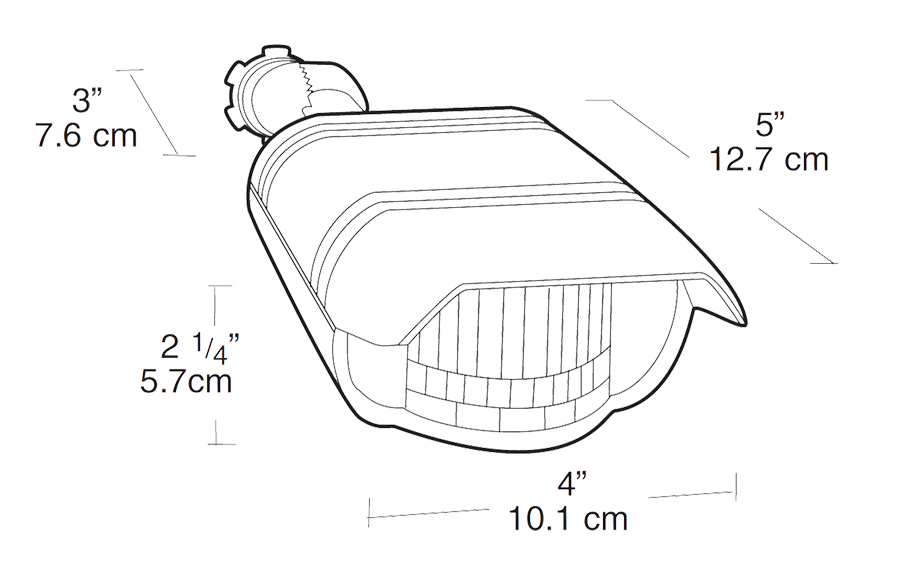

Dimensions
Link to Dimension Drawing

Weight: 1.8 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
Electrical
Voltage
120 or 277V AC 60 Hz
Power Consumption
4W
Surge Protection
Withstands up to 6000 volts
Wall Switch Manual Override
Two flip logic prevents activation by momentary power outages. Override resets to auto after 6 hours or at dawn. No extra wiring needed.
Switching Capacity
600W @ 120VAC Electronic Ballast (LED)
1350W @ 277VAC Electronic Ballast (LED)
Sensor Settings
Time Adjustment
10 seconds to 15 minutes
Detector Sensitivity
Adjustable from 100% to 50%
Sensor Housing
Made of tough, corrosion resistant polycarbonate
Detection
110° view
Construction
Floodlights
Made of tough, corrosion-resistant polycarbonate. For extra or replacement floodlights, order cat# TUFFY in your choice of color. Accepts PAR-38 lamps, medium base, 150W max. Lamps not included.
Other
Warranty
5-year sensor warranty
