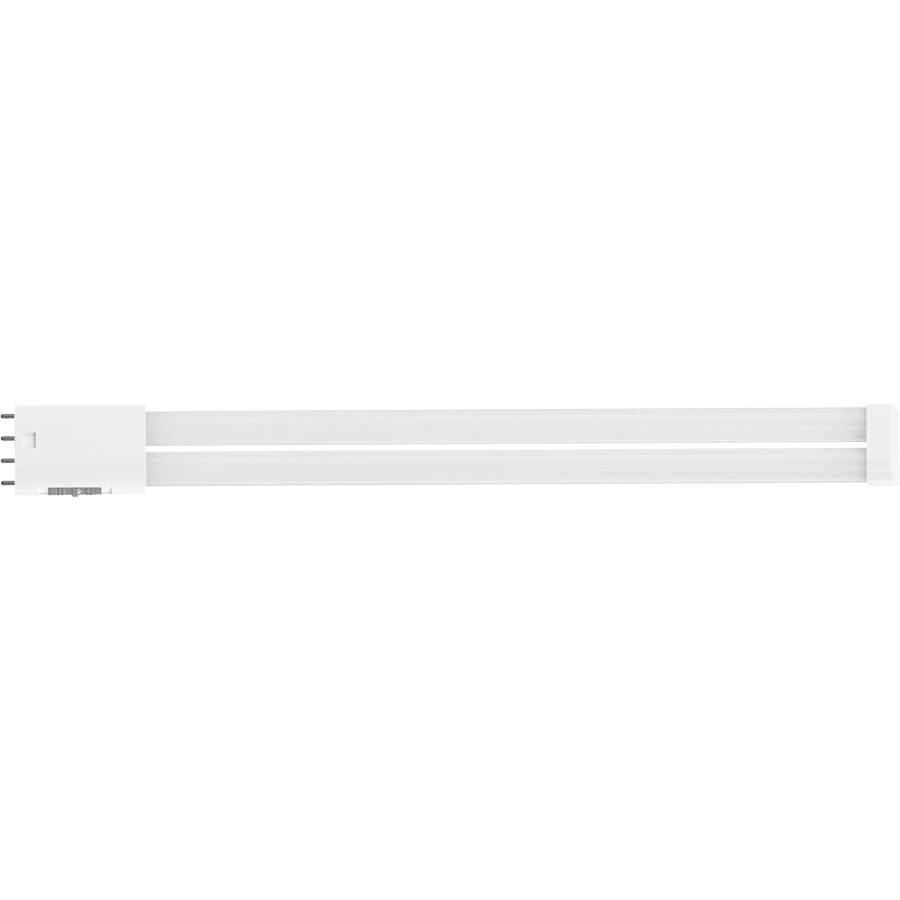

PLL-22-8FA-HYB-2G11
PLL-22-8FA-HYB-2G11
- 5 color temperatures in 1 SKU (3000/3500/4000/5000/6500K)
- Hybrid installation with or without a ballast
- Frosted diffuser eliminates glare and pixelation
- Rated for use in enclosed and open fixtures in dry or damp locations
- 5-Year, No-Compromise Warranty
Performance
| Watts | 22W |
| Color Temp | 2700/3000/3500/4000/5000/6500K |
| Lumens | 2900/3100/3200/3200/3100 lm |
| Efficacy | |
| Color Accuracy | 80 CRI |
| L70 Lifespan |
| Input Voltage | N/A |
| Power Factor | N/A |
| Flicker | N/A |
| THDi | N/A |
Dimensions
Weight: 0.3 lbs
Technical Specifications
Performance
Product Type
PLL CCT Adjustable, Type A+B
Description
Color-selectable Type A+B PLL Lamps from 8" up to 22"
Wattage Equivalency
55W CFL
Input Wattage
22W
Lumens (Nominal)
3,200lm
Lumens (Measured)
2,900/3,100/3,200/3,200/3,100lm
Efficacy
145/155/160/160/155lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current 120-277V 50/60; 120V: 190mA; 208V: 106mA; 240V: 92mA; 277V: 79mA
THD
20%
Power Factor
0.9
Dimmable
Yes, dimmable down to 10% on compatible 0-10V (Type A) or TRIAC/ELV (Type B) dimming systems. See Dimmer Compatibility List.
Input Voltage
120-277V
Operating Frequency
50/60Hz
Input Current @ 120V (mA)
190mA
Input Current @ 208V (mA)
106mA
Input Current @ 240V (mA)
92mA
Input Current @ 277V (mA)
79mA
Operating Temperature
-4°F to 113°F (-20°C to 45°C)
Flicker
50%
LED Characteristics
Beam Angle
360°
Color Temperature
Default: 4000K
Field adjustable via dip switch 2700/3000/3500/4000/5000/6500K
Field adjustable via dip switch 2700/3000/3500/4000/5000/6500K
Color Accuracy (CRI)
≥80 CRI
R9 Value
High color performance with R9 greater than 0
Color Consistency
<7-step (3000/3500/4000/5000K); <5 (2700/6500K) MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Installation Method
UL Type A+B, Hybrid
Installation Orientation
Universal Installation
Base Type
2G11 4-pin
Construction
Shape
PLL
Finish
White
Endcap Material
Copper
Enclosure Material
Polycarbonate
Lens Finish
Frosted
Compliance
Listings
UL Listed, UL Classified, UL Recognized
Environment
Suitable for use indoors in dry and damp environments.
Fixture Rating
Suitable for use in enclosed fixtures
Energy Star Approved
No
DLC Listed
No
Certification Model Number
T20164(PLL-22-8FA-HYB-2G11)
California Title 20 Compliant
No
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
NSF Listed
Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
