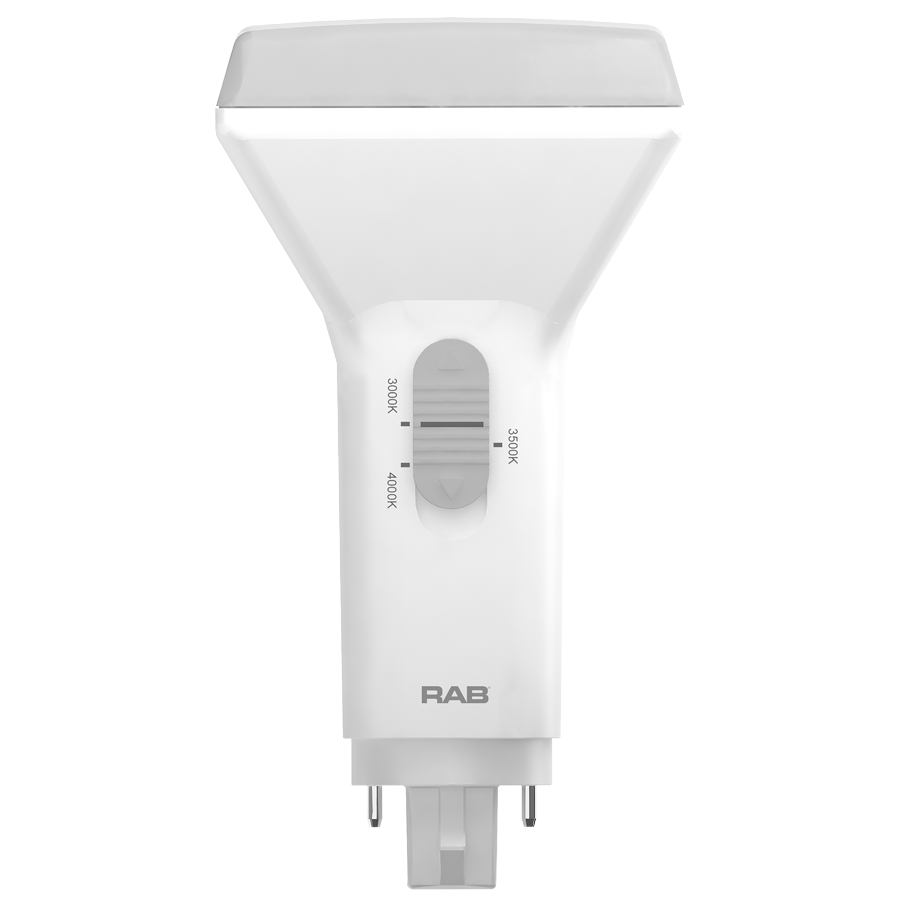

PLC-8.5-V-8FA-HYB
PLC-8.5-V-8FA-HYB
- Field Adjustable 3 CCTs in 1 SKU (3000K, 3500K, 4000K)
- Replaces 18W/26W/32W G24d & G24q CFL Lamps
- Plug and Play on existing Magnetic CFL ballasts or can be wired directly to line voltage without need for an external driver or ballast
- Compatible with G24d / GX24d & G24q / GX24q installations
- Instant-on with no warmup, unlike CFLs
- Lasts 5x longer than compact fluorescent lamps
- Consumes up to 1/3 the energy of conventional CFL
- Base rotates, direct light where needed on Horizontal models
- 50,000 hour Lifespan
- Environmentally friendly, no mercury used
- UL Listed, UL Classified
- Rated for use in enclosed and open fixtures in dry or damp locations
- Non-Dimmable
- 5 Year No Compromise Warranty
Performance
| Watts | 8W |
| Color Temp | 3000/3500/4000K |
| Lumens | 1100/1120/1150 lm |
| Efficacy | 129/132/135 lm/W |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | Type B - 120-277 / Type A - dependant on the |
| Power Factor | >0.9 |
| Flicker | N/A |
| THDi | 20 |
Dimensions
Weight: 0.2 lbs
Technical Specifications
Performance
Product Type
Compact
Input Wattage
8.5W
Lumens
1100/1120/1150lm
Efficacy
129/132/135lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
26W/32W G24d & G24q
LED Characteristics
Color Accuracy (CRI)
80
Color Temperature
3000/3500/4000K
Beam Angle
120°
Electrical
THD
20%
Power Factor
>0.9
Dimmable
Non-Dim
Input Voltage
120-277 Type B (Type A dependent on ballast)
Operating Frequency
50/60Hz
Operating Temperature
-20°C to 45°C (-4°F to 113°F)
Construction
Shape
PLC-Vertical
Enclosure Material
Constructed from frosted, shatter-resistant polycarbonate
Housing Finish
White
Lens Finish
Frosted
Installation
Base Type
2-Pin G24d
Installation Method
UL Type A with Magnetic Ballasts & UL Type B (Dual Mode)
Burning Position
Vertical
Other
Technology EQ
CFL
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Compliance
Listings
UL Listed, UL Classified
Environment
Damp / Open
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
Certification Model Number
T10201(PLC-8.5-V-8FA-HYB)
