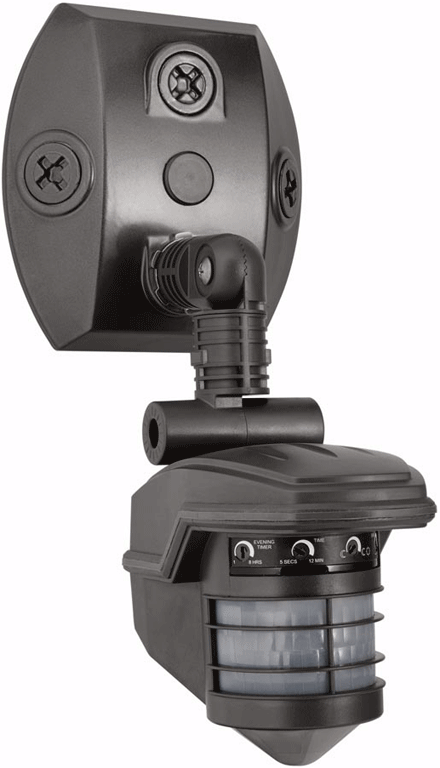

STL360
STL360
- Senses 180° out + 360° down for total detection
- Radio frequency immunity
- 6000 volt surge protection
- Quick test time
- Color matched vandal resistant
- 1000 Watt switching capacity
- Pre-wired and pre-assembled on CU4 universal EZ plate
- Protected manual override with auto reset
- Can be wired in parallel
Dimensions
Weight: 1.5 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
Electrical
Voltage
120V AC 60Hz
Power Consumption
1W
Surge Protection
Withstands up to 6000 volts
Wall Switch Manual Override
Two flip logic prevents activation by momentary power outages. Override resets to auto at dawn. No extra wiring needed.
RF Immunity
Circuits fully shielded for maximum radio frequency immunity
Switching Capacity
8 amps, 1000W incandescent @ 120 volts
Sensor Settings
Time Adjustment
5 seconds to 12 minutes
Wide Sensitivity Control
Adjustable from 100% to 30%
Evening Timer
Keeps lights on for 1-8 hours after dusk. Then sensor is motion activated until dawn.
Set it and forget it
STL360's full coverage pattern reduces need for aiming and adjustment
Advanced Detection Logic
Minimizes false triggers
Photoelectric Control
Deactivates lights during daylight.
Detection
Senses 180° and 360° down for Total Detection
LED Characteristics
Scanning LEDs
3 LEDs continually scan back-and-forth
Color Matched Lens
Dark lens with bronze units, white lens with white units
Construction
Temperature Compensation
Sensitivity adjusted automatically for consistent detection in hot and cold ambient temperatures
Lens Masks
Customized press apply lens mask included to reduce coverage easily
Installation
Mounting
CU4 plate allows the sensor to be mounted under a soffit
Other
Warranty
10-year sensor warranty
