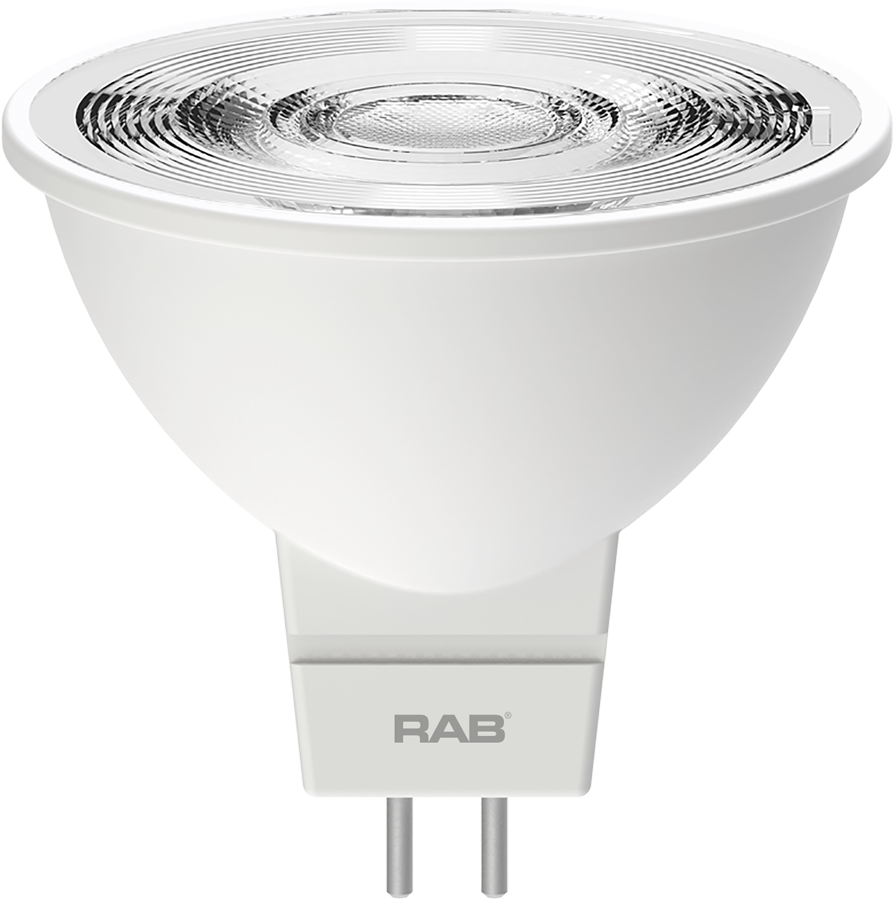

MR16-5.5-850-35D-DIM
MR16-5.5-850-35D-DIM
- Energy efficient replacement for incandescent and halogen Small diameter reflectors
- Constructed from durable materials which lowers risk of breakage
- Rated for use in enclosed and open fixtures in dry or damp locations
- Single optic and full face lens for precise beam angle control
- Longer lifespan compared to legacy equivalents minimizes replacement and maintenance costs
Performance
| Watts | 5W |
| Color Temp | 5000K |
| Lumens | 410 lm |
| Efficacy | 74.5 lm/W |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 25,000 Hours |
| Input Voltage | 12V |
| Power Factor | >0.9 |
| Flicker | N/A |
| THDi | N/A |

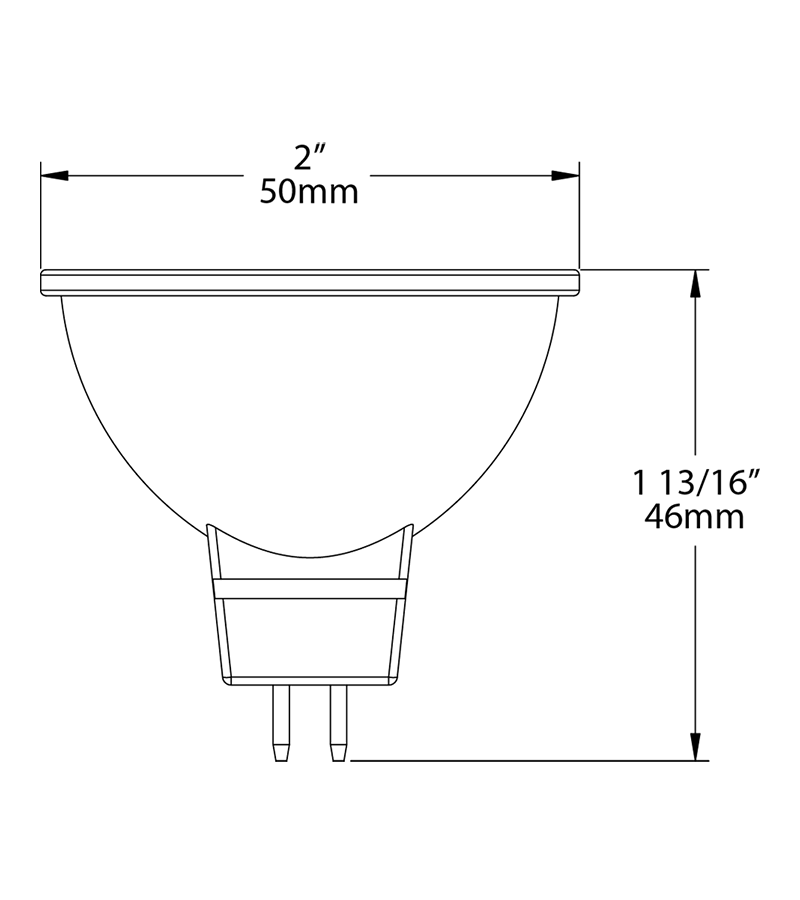

Dimensions
Weight: 0.1 lbs
Technical Specifications
Performance
Product Type
Small-Reflector
Input Wattage
5.5W
Lumens
410lm
Efficacy
74lm/W
L70 Lifespan
25,000-Hour LED lifespan based on IES LM-70 results
Wattage Equivalency
35
LED Characteristics
Color Accuracy (CRI)
80
Color Temperature
5000K
Beam Angle
35°
Electrical
Power Factor
>0.9
Dimmable
Yes, down to 10%
Input Voltage
12V
Operating Frequency
60 Hz
Operating Temperature
-20°C to 45°C
Construction
Shape
MR16
Enclosure Material
Plastic
Housing Finish
White
Installation
Base Type
GU5.3
Optical
MBCP
906
Other
Technology EQ
Halogen
Warranty (Years)
3 years
Compliance
UL Listed
Yes
Environment
Damp / Enclosed
Rohs
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
