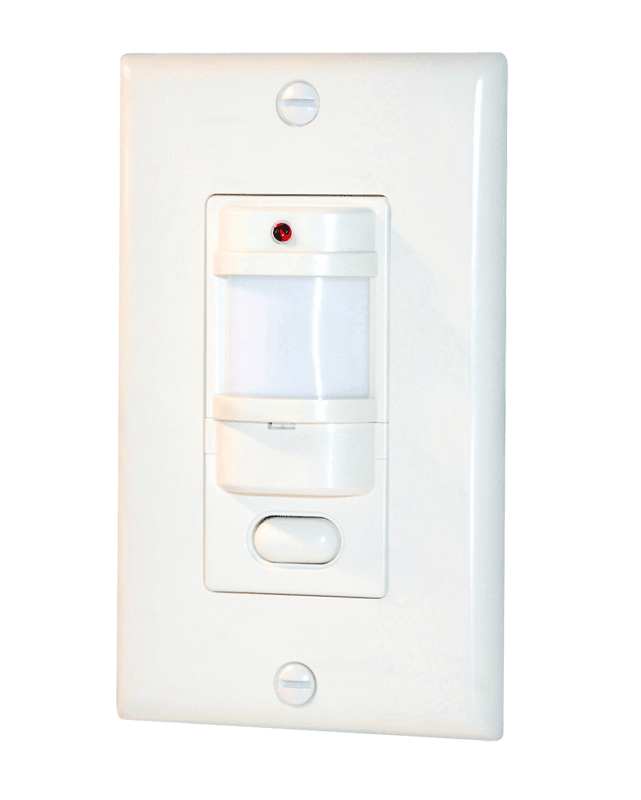

LVS800W/277
LVS800W/277
- Full 180° view
- LED detection indicator
- Tough, vandal resistant lens
- Fits decorator wall plates
- Control panel cover only removable with wall plate to prevent tampering
- Manual off/auto switch
- Vandal proof sensor for schools, gyms and high abuse areas

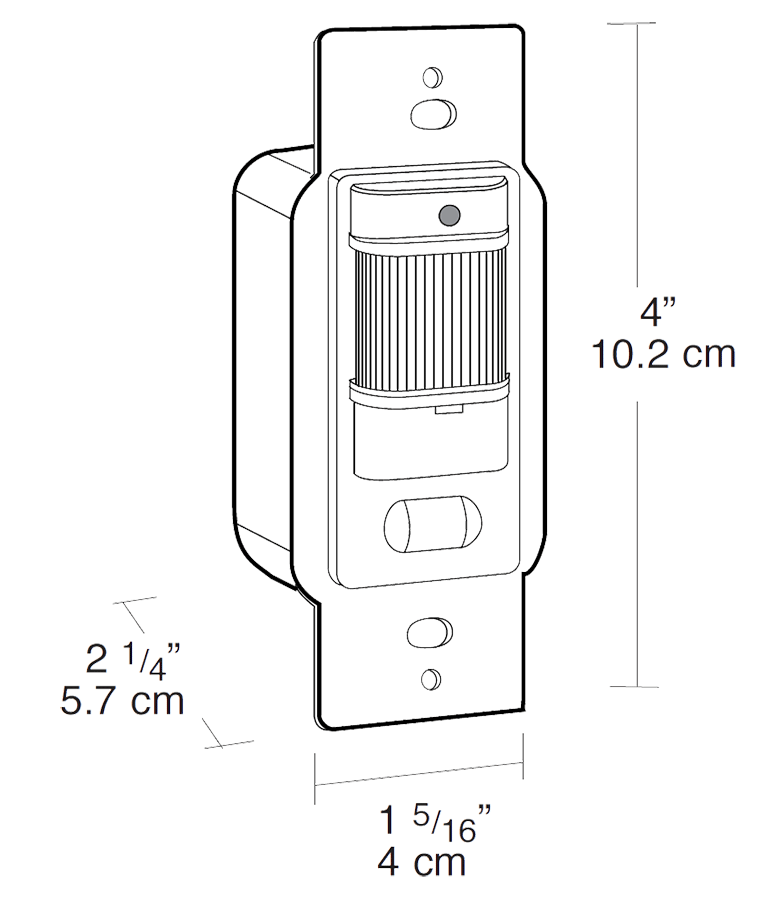

Dimensions
Technical Specifications
Compliance
UL Listed
Indoor applications Smart Box & Tuff Dome Wet locations
Other
Compatibility
Compatible with most electronic ballasts. Not compatible with instant start ballasts. Can be wired in parallel.
Electrical
Maximum Energy Savings
Must be turned on manually, but shuts off automatically
Incandescent & Fluorescent Watts Switched
800W @ 120 volts, 1200W @ 277 volts
Ratings
6.7 amps at 120 volts, 4.3amps @ 277 volts.
Power Consumption
Negligible
Manual Switch
On - Manual on - Auto off
Wiring
Hot & common, no ground required
Optical
Coverage Area
1000sf
Sensor Settings
Time Delay
8 seconds to 15 minutes
Ambient Light Sensing
n/a
Adjustments
Time
Detection
180° view covers 1000 sq. ft.
