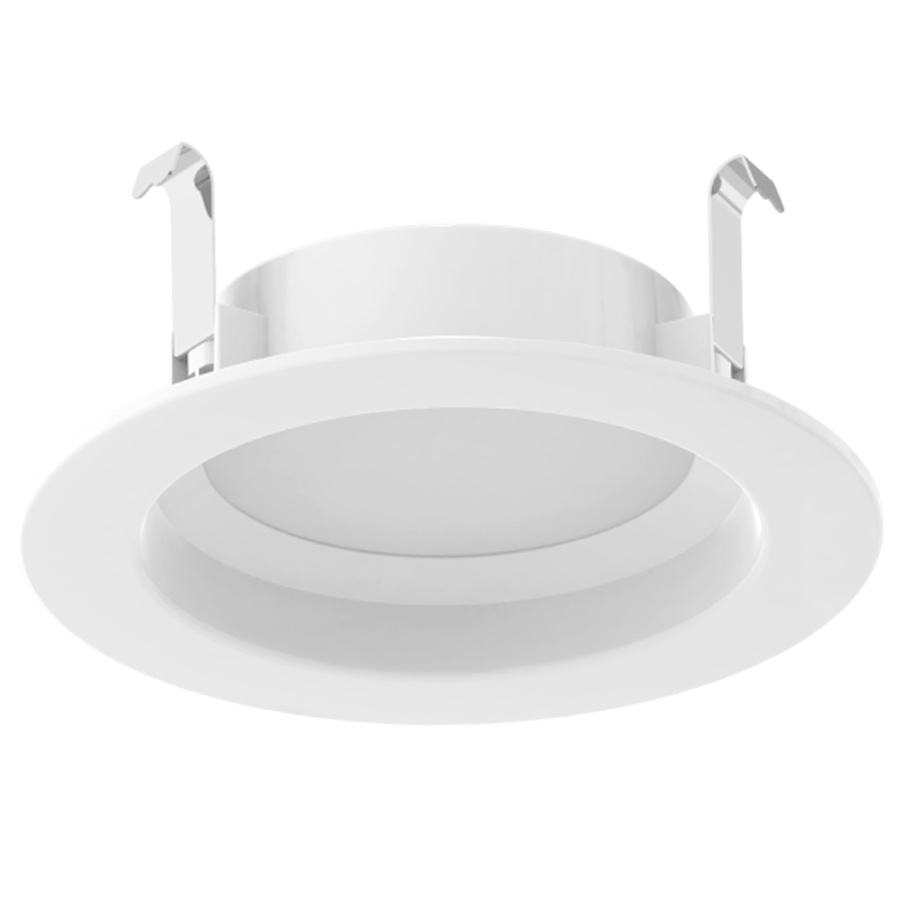

R34-4
R34-4
- 4" & 5/6" Recessed LED trims are compatible with most recessed housings
- 5 selectable CCTs 2700/3000/3500/4000/5000K
- Compatible with most standard recessed housings
- E26 Edison base adapter included
- Anti-UV plastic extends the life of the housing
Performance
| Watts | 7W |
| Color Temp | 2700/3000/3500/4000/5000K |
| Lumens | 700 lm |
| Efficacy | 93 |
| Color Accuracy | 90 CRI |
| L70 Lifespan |
| Type | Constant Current |
| 120V | 0.08A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 7.5W |
Dimensions
Weight: 0.2 lbs
Technical Specifications
Performance
Product Type
Recessed Retrofit
Description
Available in 4" and 6" models with 5 field-adjustable color temperatures. Offered with smooth or baffle trims. Ideal for applications with tighter budgets.
Wattage Equivalency
60W Incandescent
Input Wattage
7.5W
Lumens (Nominal)
700lm
Efficacy
93lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Driver
Constant Current 120V 60 Hz; 120V: 80mA
Electrical
THD
≤100%
Power Factor
≥0.9
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
Input Voltage
120V
Operating Frequency
60 Hz
Operating Temperature
-4°F to 104°F (-20 to 40°C)
Flicker
≤30%
Emergency Operation
Not for emergency use.
LED Characteristics
Beam Angle
90°
Color Temperature
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Color Tuning
No
Color Accuracy (CRI)
≥90
Natural Spectrum
No
R9 Value
High color performance with R9 greater than 50
Color Consistency
<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting
Requires recessed housing. Compatible on most standard 4" housings.
Base Type
E26 Edison adapter included
Installation Assembly
Friction clips
Construction
Size
4"
Shape
Round
Finish
White
Enclosure Material
Injection molded plastic construction is impact-resistent and non-corrosive. Non-conductive construction meets most local dead-front code requirements.
Trim Style
Smooth
Lens Finish
Frosted
Lens
Smooth flat profile polycarbonate lens diffuser
Compliance
Air Tight
Airtight per ASTM-E283-04
Listings
UL Classified
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IC Rated
Depends on recessed housing used
Energy Star Approved
This product is ENERGY STAR® Version 2.2 Certified
DLC Listed
No. There is no product category on the Design Lights Consortium (DLC) Qualified Products List for this product to qualify under.
Certification Model Number
DLR0141(R34-4)
California Title 20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
NEC Compliant
Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Accessories
DLTRIM/R34-4-[B][BN][BRZ]
4" Round color trim, smooth
DLTRIM/R4RB-[B][BN][BRZ]-L
4" Round color trim, baffle
DLTRIM/R4RS-[B][BN][BRZ]-L
4" Round color trim, smooth
NDCANIC4R/E26
4" New construction can housing w/E26 socket
SNDCANIC4R
4" Shallow new construction can housing
FRCANIC4R[/E26]
4" Fire rated new construction can housing
4" Round color trim, smooth
DLTRIM/R4RB-[B][BN][BRZ]-L
4" Round color trim, baffle
DLTRIM/R4RS-[B][BN][BRZ]-L
4" Round color trim, smooth
NDCANIC4R/E26
4" New construction can housing w/E26 socket
SNDCANIC4R
4" Shallow new construction can housing
FRCANIC4R[/E26]
4" Fire rated new construction can housing
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
