HID-26-E26-850-BYP-TS
HID-26-E26-850-BYP-TS
- Replacement for traditional Metal Halide or High Pressure Sodium HID Lamps
- Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
- Rated for use in enclosed and open fixtures in dry or damp locations
- Lightweight design
- Omnidirectional light output
- 25,000 hour Lifespan
- Environmentally friendly, no mercury used
- UL Recognized
- Non-Dimmable
- 3 Year Limited Warranty
Performance
| Watts | 26W |
| Color Temp | 5000K |
| Lumens | 3,450 lm |
| Efficacy | 132.7 lm/W |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 25,000 Hours |
| Input Voltage | 120-277V |
| Power Factor | >0.9 |
| Flicker | N/A |
| THDi | N/A |
Dimensions
Weight: 0.8 lbs
Technical Specifications
Performance
Product Type
HID Replacement
Input Wattage
26W
Lumens
3,450lm
L70 Lifespan
25,000-Hour LED lifespan based on IES LM-70 results
Wattage Equivalency
50W
LED Characteristics
Color Accuracy (CRI)
80
Color Temperature
5000K
Beam Angle
180°
Electrical
Power Factor
>0.9
Dimmable
Non-Dim
Input Voltage
120-277V AC
Operating Frequency
60 Hz
Operating Temperature
-20°C to 40°C
Construction
Bulb Shape
T-Shape
Enclosure Material
Plastic
Housing Finish
White
Installation
Base Type
E26 Edison
Installation Method
UL Type B, Ballast Bypass
Burning Position
Universal
Other
Technology EQ
Metal Halide or High Pressure Sodium
3-Year Limited Warranty
The RAB 3-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty
Compliance
Listings
UL Recognized
Environment
Damp / Enclosed
IP Rating
IP64
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
Recently Viewed Products
HID-26-E26-850-BYP-TS
Hid Replacements 3450 Lumens Hid 26W Base E26 80Cri 5000K Ballast Bypass T-Shape
FFLED180SFYW/D10/PCT
Flood 26951 Lumens Ffled 180W 7Hx6V 3000K Warm Led 120V-277V 0-10V Dimming Twistlock Photocell Slipfitter White
IVAT3-45LPA730KU
Area Lights 4189 Lumens Ivat3 Type Iii 38W Universal Pole Mount 70Cri 3000K Black 120V-277V 0-10V Dimming
HALV10L927-FG2-S
Architectural 728 Lumens Halv Forward Light 14W 90Cri 2700K Frosted Lens With Grill Style 2 Silver Finish
HID-26-E26-850-BYP-TS
Hid Replacements 3450 Lumens Hid 26W Base E26 80Cri 5000K Ballast Bypass T-Shape

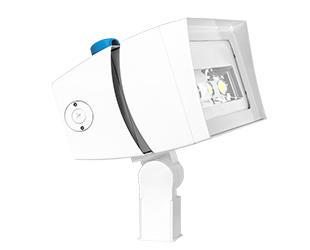

FFLED180SFYW/D10/PCT
