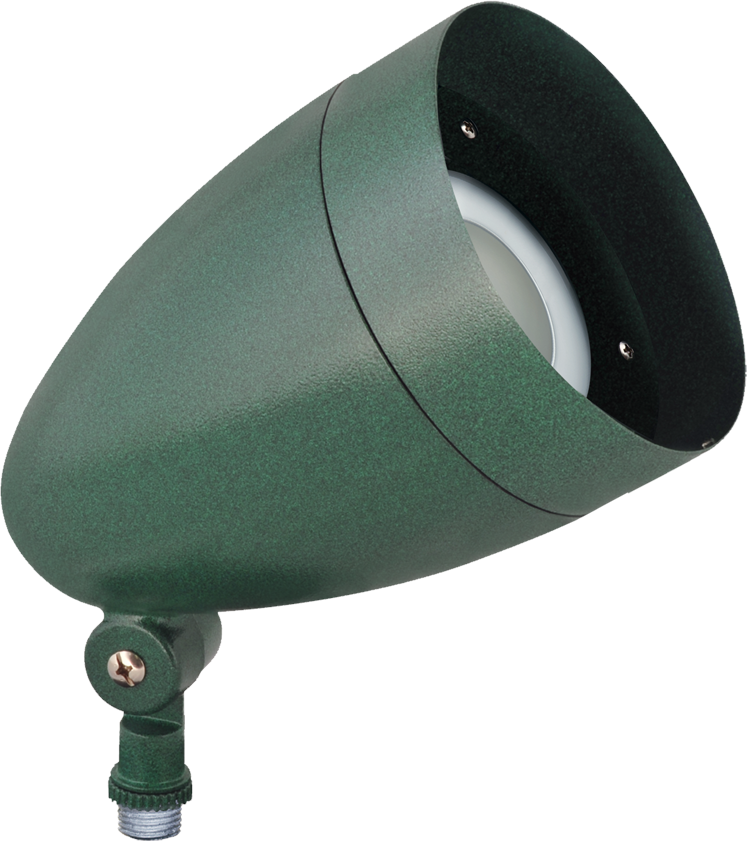

HBLED13DCVG
HBLED13DCVG
- Low voltage DC
- Ideal for solar applications
- Up to 85% more energy efficient
- No energy-loss from DC-AC inverter
- Enables off-grid, remote-area lighting
- 5-Year, No-Compromise Warranty
Performance
| Watts | 13W |
| Color Temp | 5000K (Cool) |
| Lumens | 724 lm |
| Efficacy | 47.3 lm/W |
| Color Accuracy | 61 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | DC to DC |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 15.3W |
Dimensions
Weight: 4.2 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for ground mounting.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
LED Characteristics
LEDs
Multi-chip 13 watt, high-output, long-life LEDs
Color Consistency
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Temperature
5000K
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Electrical
Electrical Input Specifications
MaxW = 15W. Input Volts = 10-30 VDC. Operating Amps = 1.5 - 0.5A.
Construction
Cold Weather Starting
The minimum starting temperature is -22°F (-30°C)
Housing
Die-cast aluminum housing, hood and mounting arm
Swivels
Fully adjustable with sure-grip locks. 1/2" NPS threaded arm with serrated locking swivel fits all standard mounting covers. Color matched EZ Grip lock nuts. Stainless steel screw.
Gaskets
High-temperature silicone gaskets
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Heavy-duty arm with "O" ring seal and stainless steel screws
Optical
Reflector
Specular aluminum. NEMA 5x5 floodlight reflector with 4x4 optional spotlight reflector for field installation. Photometrics show flood configuration.
Other
Patents
The design of the LFLOOD is protected by US patents pending in US., Canada, China, Taiwan & Mexico.
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Equipment
Solar panel, battery and controls by others
