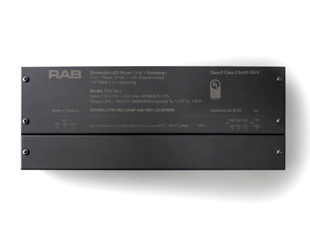

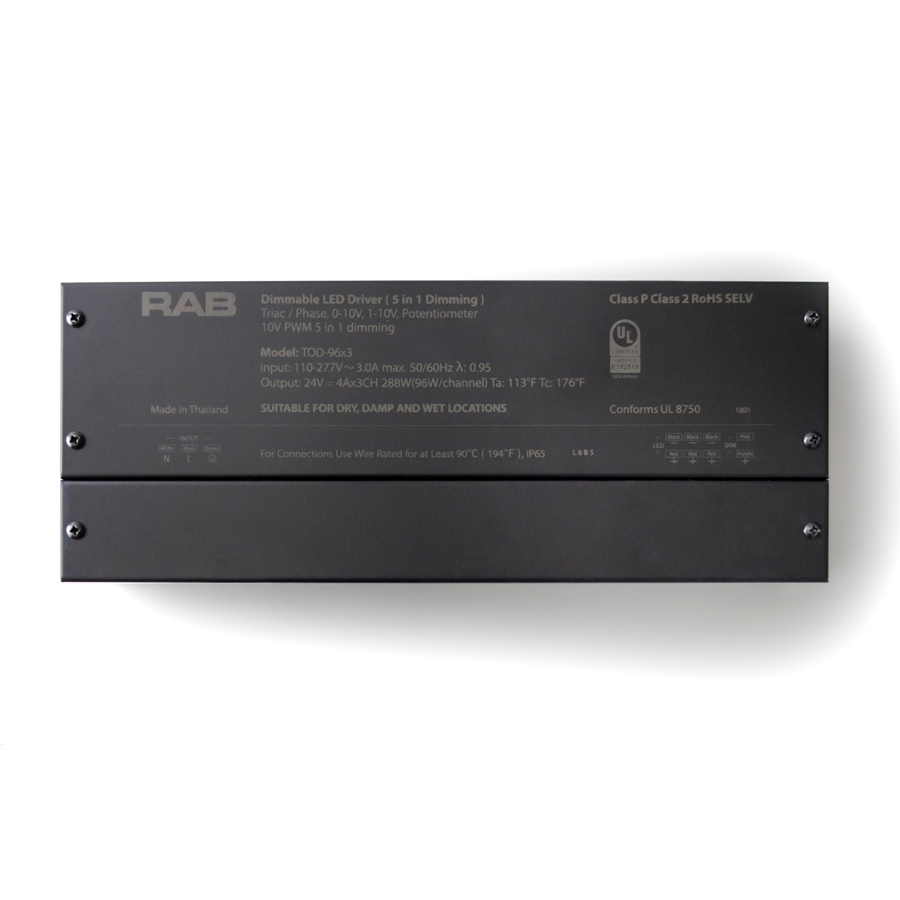

TOD-96X3
- 120-277V Universal input voltage
- TRIAC, ELV, and 0-10V dimming
- 0.1% Performance dimming, dim-to-dark
- Outdoor Rated
- UL Listed and Title 24 JA8 Compliant
- 5-year limited warranty
Performance
| Watts | |
| Color Temp | |
| Lumens | |
| Efficacy | |
| Color Accuracy | |
| L70 Lifespan |
| Type | |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts |
Technical Specifications
Performance
Description
Versatile driver with high-performance dimming on ELV, TRIAC, and 0-10V dimming system that allows for dim-to-dark
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Voltage, Class 2
THD
<20%
Power Factor
>0.95
Dimmable
Yes, dimmable down to 0.1% on compatible TRIAC/ELV or 0-10V dimming systems. See Dimmer Compatibility List.
Input Voltage
100-277V
Output Power
96W Max
Output Voltage
24VDC
Output Current
12A total / 4x3A
Operating Frequency
47-63Hz
Input Current @ 100V (mA)
1.2A/CHN
Operating Temperature
-20°C to 45°C (-4°F to 113°F)
Storage Temperature
-4°F (-20°C) to 140°F(60°C)
Flicker
No flicker
Installation
Mounting
Screws fix
Compliance
Listings
UL8750
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IP Rating
IP65
Air Tight
Yes
Certification Model Number
TOD-96X3
California Title 20 Compliant
No
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Products
Compatible with the following ARCTAPE products: TICYY, TICY, TICYN, TICN, TICCW, TICLYY, TICLY, TICLYN, TICLN, TICLCW, TICHYY, TICHY, TICHYN, TICHN, TICHCW
Compatible with the following FLEXTAPE products: TOSYY, TOSY, TOSYN, TOSN, TOSCW, TOSLYY, TOSLY, TOSLYN, TOSLN, TOSLCW, TOSHYY, TOSHY, TOSHYN, TOSHN, TOSHCW
Compatible with the following NEOFLEX products: TNFYY, TNFY, TNFYN, TNFN, TNFLGY
Compatible with the following NEOFLEX products: TOCYY, TOCY, TOCYN, TOCN, TOCCW
Compatible with the following FLEXTAPE products: TOSYY, TOSY, TOSYN, TOSN, TOSCW, TOSLYY, TOSLY, TOSLYN, TOSLN, TOSLCW, TOSHYY, TOSHY, TOSHYN, TOSHN, TOSHCW
Compatible with the following NEOFLEX products: TNFYY, TNFY, TNFYN, TNFN, TNFLGY
Compatible with the following NEOFLEX products: TOCYY, TOCY, TOCYN, TOCN, TOCCW
