FXLED105SFY/7PR/PCT

Spec Sheet IES File LM79 Instructions Spec Sheet EZ Layout

FXLED105SFY/7PR/PCT

66% energy cost savings vs. HID

NEMA Type - 6H x 6V

"Air-Flow" technology heat dissipation

100,000-hour LED lifespan

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	105W
Color Temp
Lumens	13,675 lm
Efficacy	125.6 lm/W
Color Accuracy
L70 Lifespan

Type	Constant Current
120V	0.92A
208V	0.53A
240V	0.46A
277V	0.40A
Input Watts	108.9W

EZ-Layout

Create Custom Lighting Layout

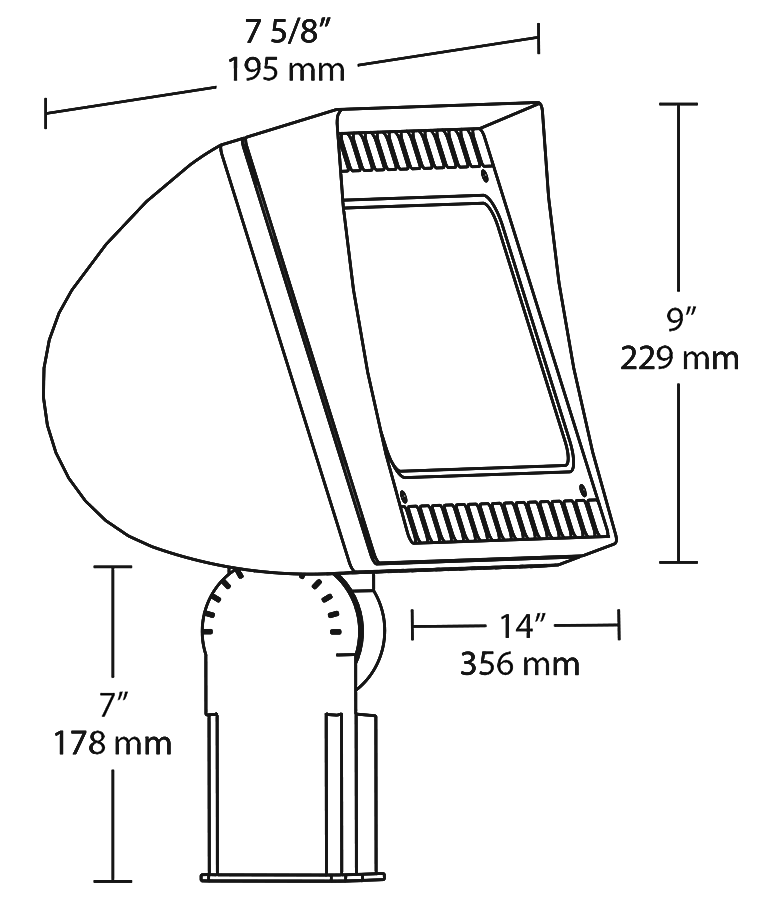

Dimensions

Weight: 27.7 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations. Suitable for mounting within 4 ft (1.2m) of the ground.

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

Ingress protection rating of IP66 for dust and water

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Wattage Equivalency

Replaces 320W Metal Halide

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Stability

LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

EPA

Maximum Ambient Temperature

Suitable for use in up to -40°F (-40°C) to 104°F (40°C )

Lens

Tempered glass lens included

Housing

Die-cast aluminum housing and door frame

Finish

Formulated for high durability and long-lasting color

Tilt Increment

Rotates in 6 degree increments

Installation

Mounting

Heavy-duty slipfitter for 2 3/8"OD pipe

Electrical

Driver

Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.93A, 208V: 0.54A, 240V: 0.47A, 277V: 0.42A

THD

7.16% at 120V, 6.5% at 277V

Power Factor

99.8% at 120V, 93% at 277V

7-Pin Receptacle

ANSI C136.41 7-pin receptacle

Photocell

120-277V Twistlock photocell included. Photocell is compatible with 120-277V.

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
