EM-HRS

Spec Sheet EM Remote Head Compatibility List Instructions Spec Sheet

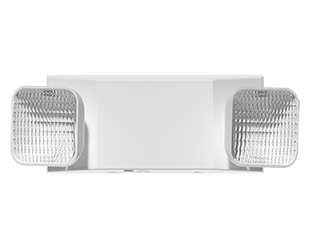

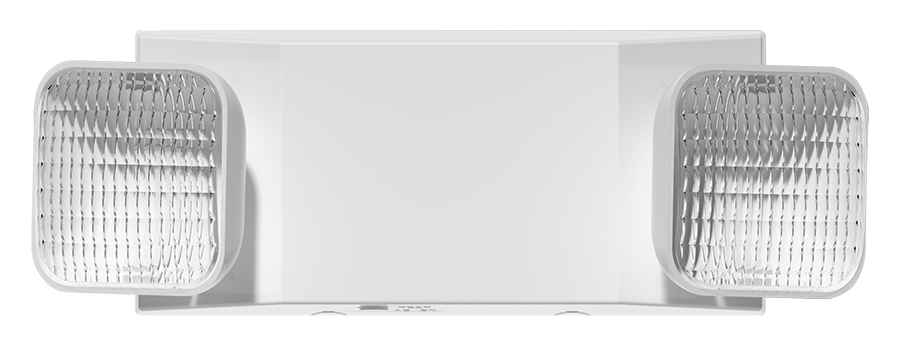

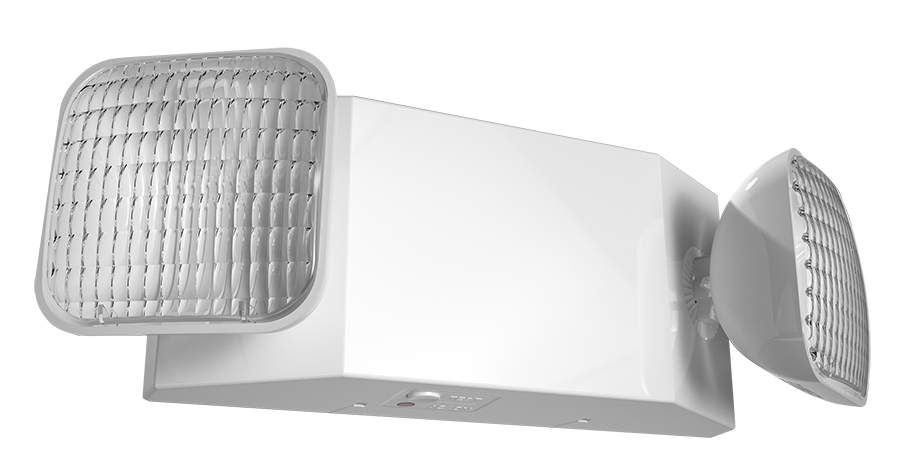

EM-HRS

Durable thermoplastic design

Emergency light with 90-minute battery backup

View Technical Specs

View Price & Availability

Dimensions

Weight: 0.8 lbs

Technical Specifications

Performance

Product Type

Emergency Unit

Description

Remote Capable Thermoplastic Emergency Unit

Input Power (W)

1.9W

Lumens

65lm

Lumens (per fixture)

130lm

Electrical

Power Factor

0.8@120V; 0.7@277V

Input Voltage

Dual 120/277 Voltage

Frequencies

60 Hz

Input Current @ 120V (mA)

20mA

Input Current @ 277V (mA)

10mA

Maximum Output Current (Amps)

0.83A

Maximum Output Wattage

Dual Voltage Circuit Operation

Operating Temperature

32°F to 122°F (0°C to 50°C)

Emergency Illumination

90 minutes

Battery Type

Nickel Cadmium

Battery Voltage

3.6V

Recharge Time Required

24-hours

Battery Operating Temperature

0°F to 50°F (32°C to 122°C)

Storage Temperature

68°F to 86°F (20°C to 30°C)

Storage Shelf Life

3 years before the initial charge. 5 years after initial charge.

Self Diagnostics

Yes

Remote Test Switch

Installation

Mounting Method

Back/Conduit

Mounting Type

Wall

Maximum Mounting Height (ft.)

8 ft

Emergency Egress Coverage(ft) Mounting at height of 7.5ft

14 ft x 3 ft mounted @ 7.5 ft

Cold Weather Rated

Construction

Shape

Rectangle

Housing Material

Thermoplastic

Housing Color

White

Remote Capacity

Yes

No. of Heads

2-Lamp Heads

Head Shape

Square

Remote Head Power (W)

Compliance

Listings

UL924 Listed

Environment

Suitable for indoor use in dry and damp environments

IP Rating

Indoor

Certification Model Number

LEDR5HOSDT-HL

T20 Compliant

Not Title 20 Compliant

California Title 24 JA8 Compliant

Not applicable

California Energy Commission (CEC) Status

Lawful for Sales in California

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Products

EREMOTE-1S
Single remote head self diagnostic
EREMOTE-1HS
Single remote head high-output self diagnostic
EREMOTE-S
Double remote head self diagnostic
EREMOTE-HS
Double remote head high-output self diagnostic

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Battery is prorated.
