• For use with select RAB Commercial Downlights
  • Meets UL924 Requirements
View Technical Specs
Dimensions
Link to Dimension Drawing

Weight: 3.3 lbs

Technical Specifications
Performance
Product Type

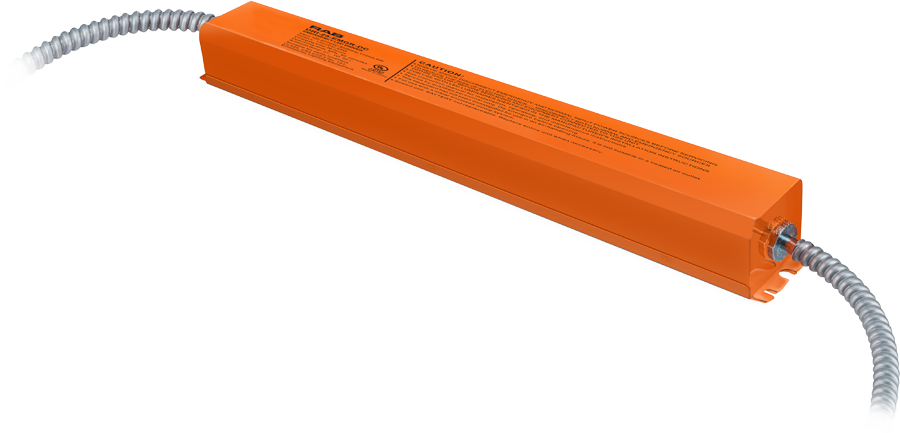

Emergency Driver
Description
Field installable battery back up for direct mount downlights, see Downlight Accessory Compatibility Guide.
Input Power
8W
Output Power
25W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Input Voltage
100-277V
Output Voltage
170VDC
Operating Frequency
50/60Hz
Operating Temperature
32°F to 122°F (0°C to 50°C)
Battery Operation
90 minutes
Battery Type
Lithium
Recharge Time Required
36-hours
Discharge Temperature
32°F to 122°F (0°C to 50°C)
Storage Temperature
-4°F to 113°F (-20°C to 45°C)
Storage Shelf Life
2-year *capacity decay 1.5% per year
Installation
Mounting
Recessed Housing
Construction
Shape
Rectangle
Finish
Orange
Enclosure Material
Metal
Compliance
Listings
UL924 Listed
Environment
Suitable for use in dry and damp environments
IC Rated
No
Certification Model Number
DRI-25-EMGR-DC
T20 Compliant
Not compliant
California Title 24 JA8 Compliant
Not Compliant
California Energy Commission (CEC) Status
Not Lawful for Sales in California
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
Other
Compatible Products
See Downlight Accessory Compatibility List for a complete listing of compatible products.
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
