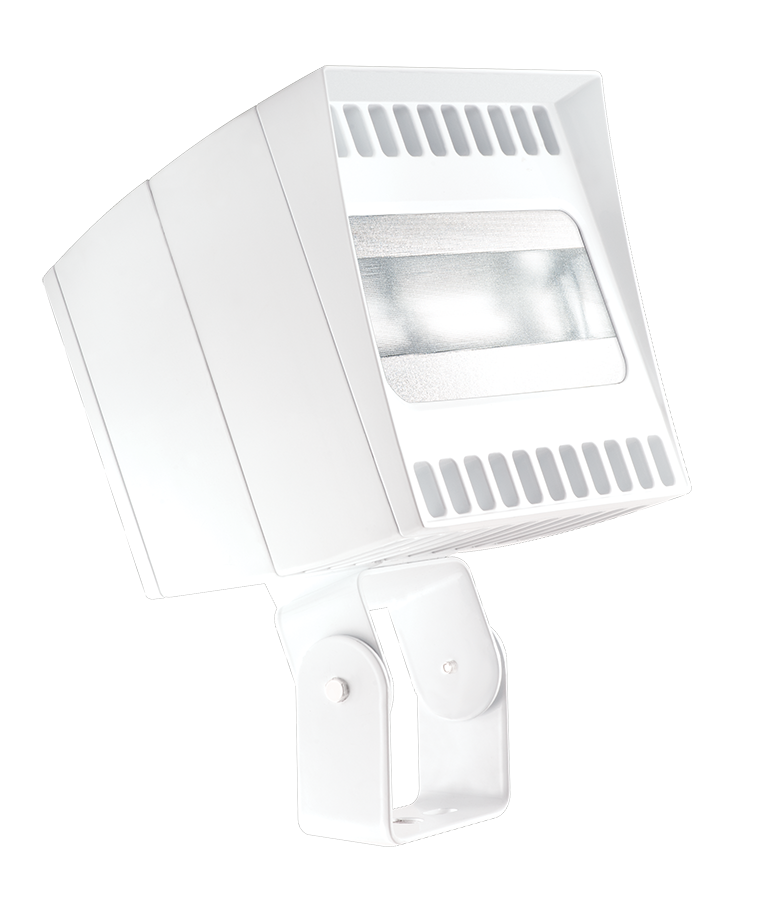

CANVAS78TW/PCS2
CANVAS78TW/PCS2
- Replaces 250W MH Floodlights
- NEMA Type 6H x 4V ideal for signage & facades
- Ultra-low field-to-beam ratio concentrates light where it's required
- Microprismatic diffusion lens optimizes light output without glare
- Superior thermal management with patent-pending "Airflow" technology
- 100,000-Hour LED lifespan
Performance
| Watts | 78W |
| Color Temp | 5000K (Cool) |
| Lumens | 9,784 lm |
| Efficacy | 109.6 lm/W |
| Color Accuracy | 70 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.82A |
| 208V | 0.53A |
| 240V | 0.46A |
| 277V | 0.40A |
| Input Watts | 89.3W |

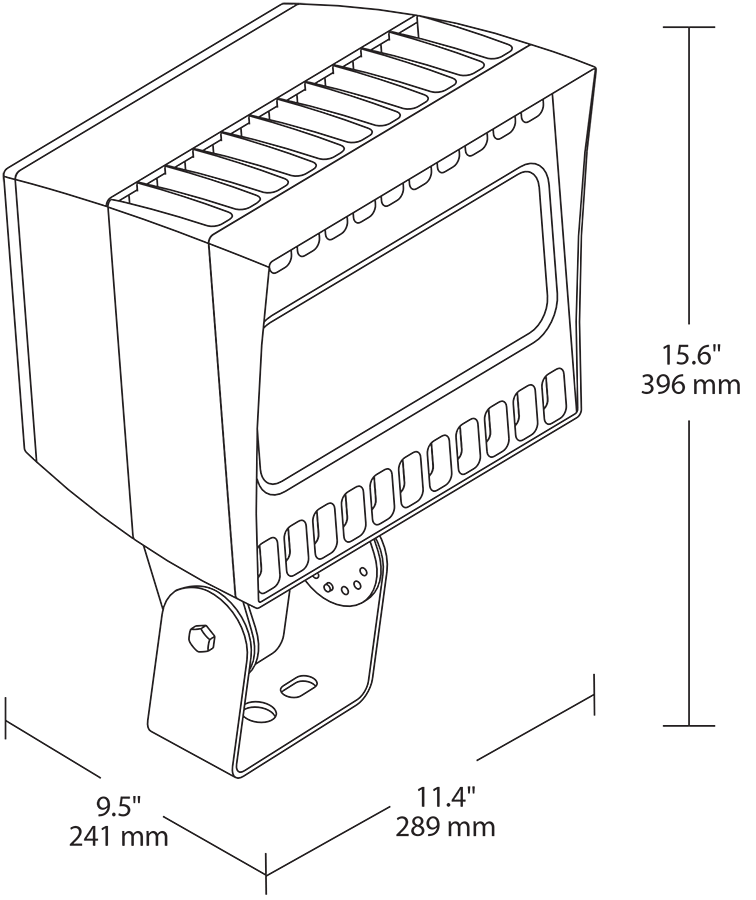

Dimensions
Weight: 27.5 lbs
Technical Specifications
Electrical
Drivers
Constant current, Class 2, 100-277V, 50/60 Hz, 6kV Surge Protection, 720mA, 100-277V: 0.4A, THD <20%, Power Factor 99.2%
Photocell
277V Swivel photocell included. Photocell is compatible with 208V-277V.
Compliance
UL Listed
Suitable for wet locations. Suitable for ground mounting.
IP Rating
Ingress protection rating of IP66 for dust and water
Construction
Effective Projected Area
EPA = 1.2
LED Characteristics
LEDs
Multi-chip, high-output, long-life LEDs
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
