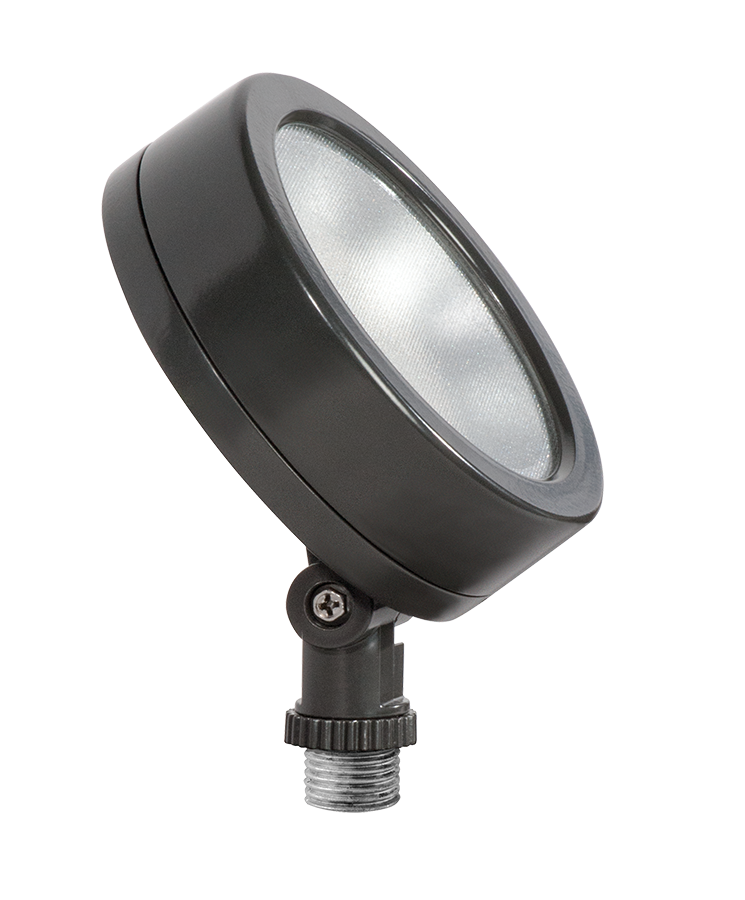

LES13
LES13
- Equivalent to 75W halogen BR30 wide flood
- Wide 6H x 6V distribution
- Diffused lens for smooth, even light distribution
- |Very low profile
- Adjustable knuckle
- 60,000-Hour LED lifespan
Performance
| Watts | 13W |
| Color Temp | 5000K (Cool) |
| Lumens | 1,358 lm |
| Efficacy | 124.6 lm/W |
| Color Accuracy | 84 CRI |
| L70 Lifespan | 60,000 Hours |
| Type | Constant Current |
| 120V | 0.10A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 10.9W |
Dimensions
Weight: 1.3 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for mounting within 4 ft of the ground.
IP Rating
Ingress protection rating of IP66 for dust and water
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC Product Code: P31LQDM8
DLC Product Code: P31LQDM8
Optical
NEMA Type
6H x 6V Beam Spread
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Housing
Precision die-cast aluminum housing, lens frame and mounting arm
Reflector
Vacuum-metalized polycarbonate
Lens
Diffused glass for smooth, even light distribution
Gaskets
High-temperature silicone gaskets
Finish
Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting
Heavy-duty mounting arm with "O" ring seal, wire seal plug & stainless steel screw
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Performance
Wattage Equivalency
75W PAR30
Electrical
Driver
120V driver, 50/60/ Hz, 120V: 0.10A
THD
10.9% at 120V
Power Factor
99% at 120V
