C6R12/18/249FAUNVM
Performance
| Watts | 12W |
| Color Temp | Field Adjustable |
| Lumens | 818/1220/1624 lm |
| Efficacy | 67/67/67 lm/W |
| Color Accuracy | |
| L70 Lifespan | 60,000 Hours |
| Type | Constant Current |
| 120V | 200 |
| 208V | |
| 240V | |
| 277V | 88 |
| Input Watts | 12/18/24W |
Dimensions
Weight: 2.3 lbs
Technical Specifications
Performance
Product Type

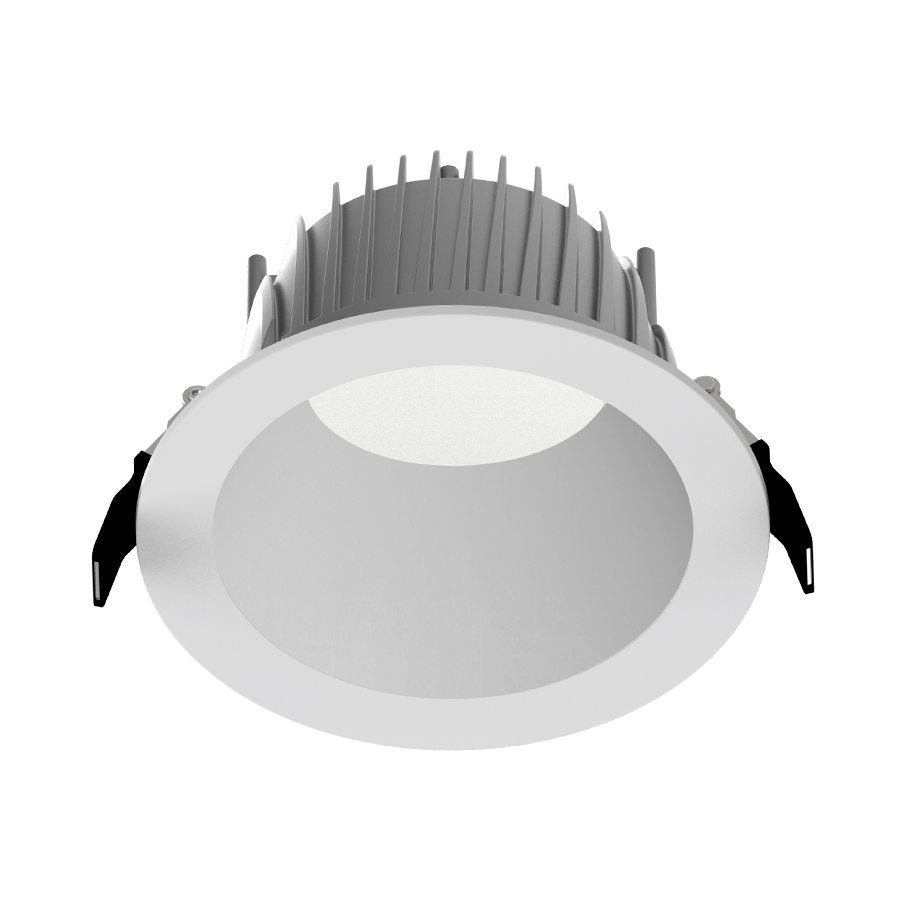

Commercial Downlight Direct Mount
Lumens
800/1,200/1,600lm
Efficacy
67/67/67lm/W
Lifespan
60,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
LED Characteristics
Color Temperature
3000/3500/4000/5000K
Electrical
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
≤20%
Power Factor
≥0.9
Input Voltage
120-277V AC
Operating Frequency
50/60Hz
Operating Temperature
-30°C - 40°C
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Construction
Size
6"
Housing Material
Metal
Finish
Matte Silver
Trim Style
Smooth Trim
Air Tight
Housing certified Air Tight as per ASTM-E283
Compliance
Listings
UL Listed, UL Classified
Environment
Wet
T24 JA8 Compliant
Complies with Title 24 Appendix JA8
Lawful for Sale in California
Yes
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
Certification Model Number
DLC0041(C6R12/18/249FAUNVM)
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
