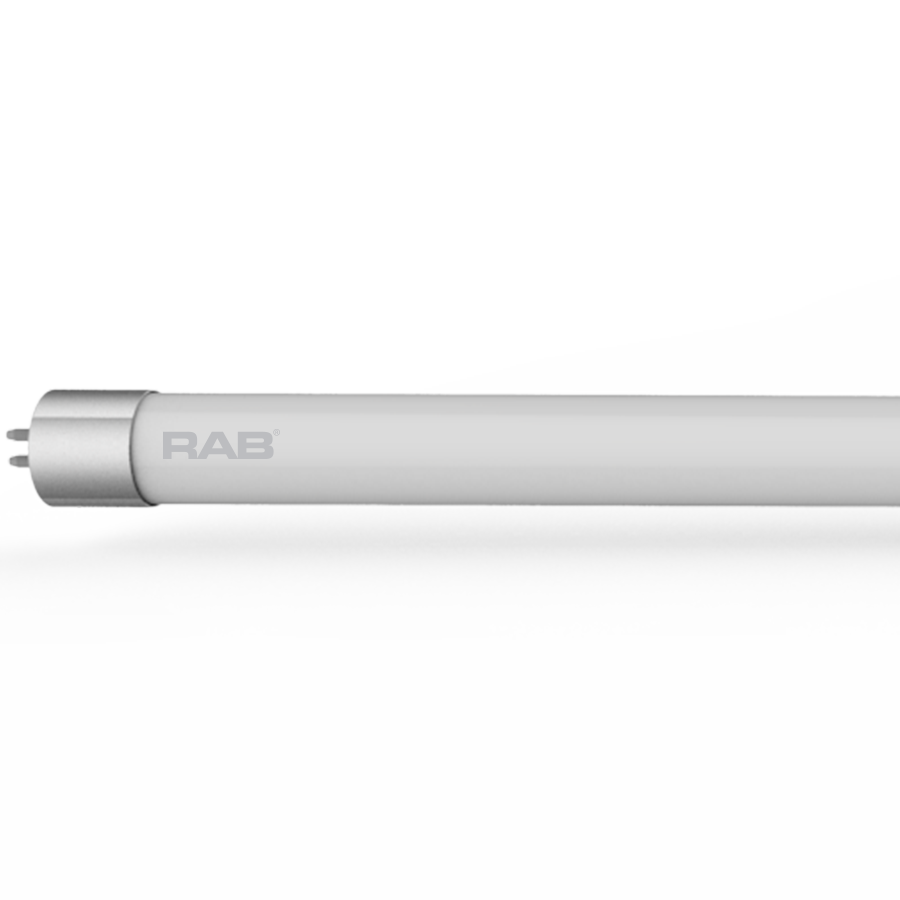

T5HE-13-48G-835-SD-BYP

Spec Sheet IES File LM79 Instructions FCC Caution Spec Sheet EZ Layout

Replacement for conventional fluorescent T5HE tubes

Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast

Single and double ended wiring method works with both shunted and non-shunted sockets

NSF Listed: NSF/ANSI Standard 2 - Food Equipment - Splash Zone (Not for Direct Food Zone without additional fixture considerations)

View Technical Specs

View Price & Availability

Performance

Watts	13W
Color Temp	3500K
Lumens	1,750 lm
Efficacy	135
Color Accuracy	83 CRI
L70 Lifespan	50,000 Hours

Input Voltage	120-277V
Power Factor	>0.9
Flicker	50%-70%
THDi	≤20%

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.4 lbs

Technical Specifications

Performance

Product Type

Linear Tube

Description

T5HE Type B Bypass Single/Double ended tubes tubes ideal for office applications. Available in 4FT.

Wattage Equivalency

28W Fluorescent

Input Wattage

12.5W

Lumens

1,700lm

Efficacy

136lm/W

Lifespan

50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Electrical

THD

≤25%

Power Factor

≥0.9

Dimmable

Yes, although not recommended for dimming applications.

Input Voltage

120-277V

Operating Frequency

50/60Hz

Input Current @ 120V (mA)

195mA

Input Current @ 208V (mA)

68mA

Input Current @ 240V (mA)

58mA

Input Current @ 277V (mA)

51mA

Operating Temperature

-4°F to 113°F (-20°C to 45°C)

LED Characteristics

Beam Angle

180°

Color Temperature

3500K

Color Accuracy (CRI)

82 CRI

R9 Value

High color performance with R9 greater than 0

Color Consistency

<5-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Installation Method

UL Type B, Ballast Bypass

Base Type

Construction

Nominal Length

4 ft

Bulb Shape

T5HE

Endcap Material

Metal

Enclosure Material

Glass

Lens Finish

Frosted

Compliance

Listings

UL Recognized, UL Classified

Environment

Suitable for use in dry and damp environments. Not suitable for applications with direct sunlight.

Fixture Rating

Suitable for use in enclosed fixtures

Certification Model Number

T20070(T5HE-13-48G-835-SD-BYP)

T20 Compliant

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

NSF Listed

Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15B of the FCC Rules

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PLO9GI7QOL8F

Other

Compatible Products

See Dimmer compatibility list.

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
