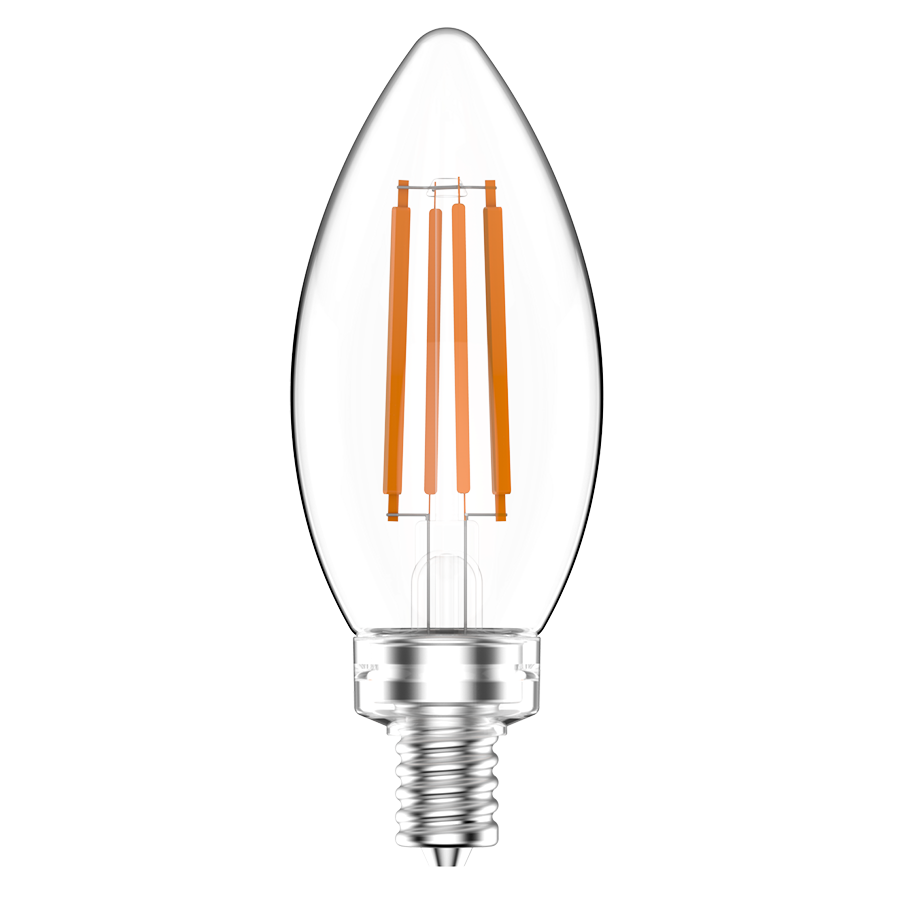

B11-5-E12-940-F-C
B11-5-E12-940-F-C
- Replacement for conventional decorative lamps
- Filament LED construction gives a unique traditional look and feel for decorative and ambient applications
- Produces rich and vibrant colors, >90CRI
- Rated for use in enclosed and open fixtures in dry and damp locations
- Longer lifespan compared to legacy equivalents minimizes replacement and maintenance costs
- Title 20 Compliant, ENERGY STAR Compliant, UL Listed
- Smooth uniform dimming down to 10% (check dimmer compatibility list)
Performance
| Watts | 5W |
| Color Temp | |
| Lumens | 500 lm |
| Efficacy | 100 lm/W |
| Color Accuracy | 4000K CRI |
| L70 Lifespan |
| Type | Constant Current |
| 120V | 0.06A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 5W |
Dimensions
Weight: 0.1 lbs
Technical Specifications
Performance
Product Type
Decorative
Input Wattage
5W
Lumens
500lm
L70 Lifespan
15,000-Hour LED lifespan based on IES LM-70 results
Wattage Equivalency
60W
LED Characteristics
Color Accuracy (CRI)
90 CRI
Color Temperature
4000K
Beam Angle
360°
Electrical
Power Factor
>0.7
Dimmable
Yes, down to 10%
Input Voltage
120V
Operating Frequency
60 Hz
Operating Temperature
-20°C to 40°C
Construction
Shape
B11
Enclosure Material
Glass
Housing Finish
Clear
Installation
Base Type
E12
Other
Technology EQ
Incandescent
3-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Compliance
Listings
UL Listed
Environment
Wet / Enclosed
T20 Compliant
Yes, Title 20 Tier 2
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
