XFMR200-480-277
XFMR200-480-277
- MAXIMUM POWER - 150VA
- 120 INPUT FREQUENCY - 50/60 Hz
- 150VA @227V output, 125VA @240V output
- POWER CONSUMPTION - No load <8W
- OPERATING TEMPERATURE -22°F to 113°F

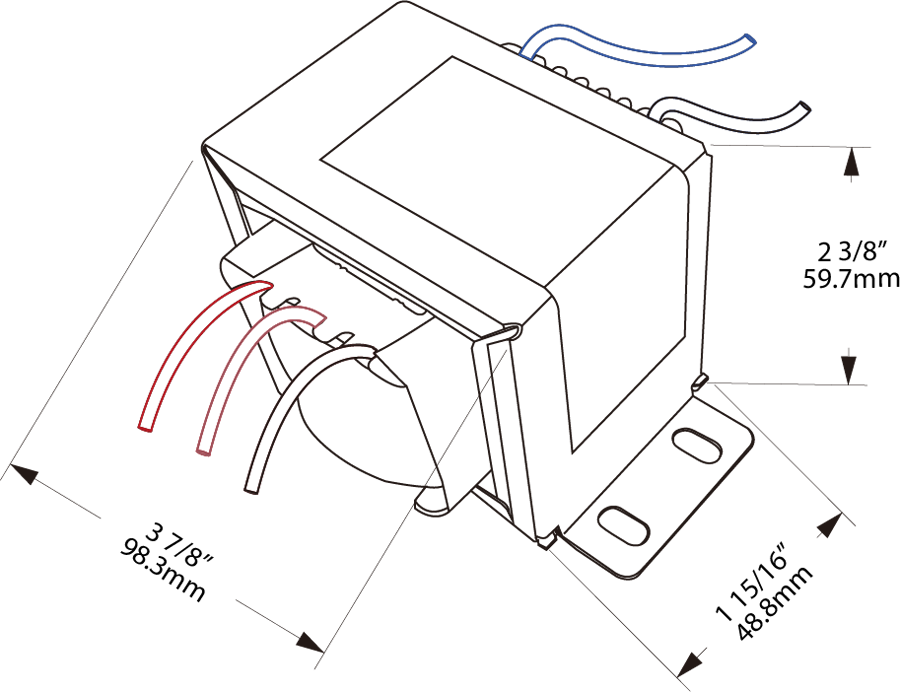

Dimensions
Weight: 2.8 lbs
Technical Specifications
Performance
Product Type
Transformer
Input Wattage
200W
Electrical
Operating Temperature
-30°C to 45°C
Operating Frequency
60 Hz
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Construction
For Use Outdoors in Open Fixtures
No
Compliance
UL Recognized
Yes
California Energy Commission (CEC) Status
Lawful for Sales in California
