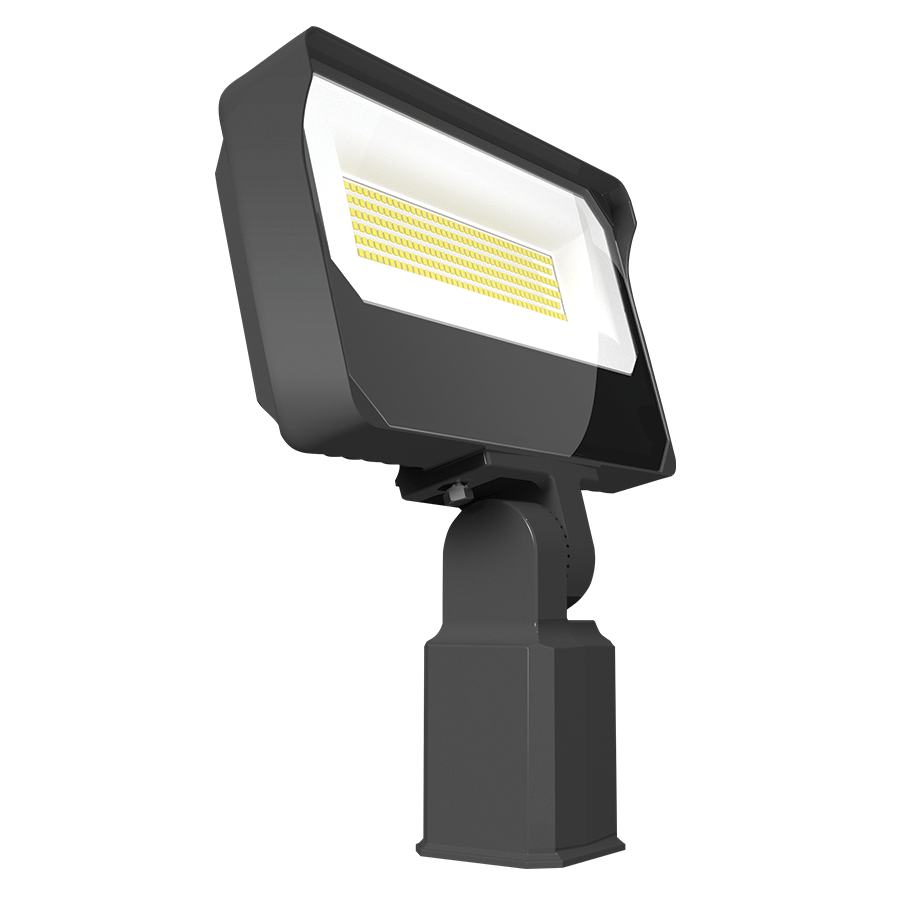

X34L/RGB
Performance
| Watts | 90W |
| Color Temp | 2200K-6500K |
| Lumens | 10,800 lm |
| Efficacy | 120 |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.75A |
| 208V | 0.44A |
| 240V | 0.38A |
| 277V | 0.33A |
| Input Watts | 90W |
Dimensions
Weight: 6.5 lbs
Technical Specifications
Lightcloud
Lightcloud Blue
Lightcloud Blue, RAB's wireless lighting control system, eliminates the need for a hub or controller. The app shows the fixtures nearest you first, so an area is set up in minutes, even without internet on site. Lights and schedules keep working if the Wi-Fi goes down, and a Nano adds control from anywhere.
DLC system: N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Learn more at rablighting.com/lcb.
DLC system: N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Learn more at rablighting.com/lcb.
Gateway Required
No
Communication Protocol
Bluetooth®
Range
Indoor: Up to 60 feet between standard building materials. Building materials such as brick, concrete, and steel construction may require additional Lightcloud Blue devices to extend around an obstruction; Up to 200 feet clear line of sight.
Outdoor: Up to 60 feet clear line of sight; Up to 18 feet around corners
Outdoor: Up to 60 feet clear line of sight; Up to 18 feet around corners
Spacing Criteria
Lightcloud Blue devices should be placed within the specified range to communicate within the network. Building materials such as brick, concrete, and steel construction or heavy vegetation, bushes or trees may require additional Lightcloud Blue devices to extend around an obstruction.
Integration
Open API, available from any Lightcloud Blue account.
SmartShift
SmartShift
SmartShift is the most advanced - yet easiest to use - circadian lighting system, which syncs white color tuning with the local sunrise and sunset.
Requires the NANO/LCB (sold separately)
Requires the NANO/LCB (sold separately)
Performance
Product Type
Floodlight
Description
Ultra economy without compromise. The X34 is a field-adjustable, general-purpose flood offering output from 1,400 to over 24,000 lumens!
Input Wattage
90W
Lumens
10,800lm
Lumens (Measured)
7,927lm @ 6500K; 10,951lm @ 2700K; 11,158lm @ 3000K; 11,492lm @ 4000K; 11,617lm @ 5000K
Efficacy
120lm/W
L70 Lifespan
100,000-Hour LED lifespan based on IES LM-70 results
Electrical
THD
<20%
Power Factor
>0.9
Dimmable
Yes, via the Lightcloud Blue mobile app and devices.
This lamp will not operate properly when connected to a standard (incandescent) dimmer or dimming control.
This lamp will not operate properly when connected to a standard (incandescent) dimmer or dimming control.
Input Voltage
120-277V
Operating Frequency
60 Hz
Input Current @ 120V (mA)
750mA
Input Current @ 208V (mA)
440mA
Input Current @ 240V (mA)
380mA
Input Current @ 277V (mA)
330mA
Operating Temperature
-40°F to 104°F (-40°C to -40°C)
Flicker
<30%
Surge Protection
2 kV
LED Characteristics
Beam Angle
105X90°
Color Temperature
Default: 3000K
Adjustable using the Lightcloud Blue mobile app
Tunable White 2200K - 6500K
16+ million RGB colors
Adjustable using the Lightcloud Blue mobile app
Tunable White 2200K - 6500K
16+ million RGB colors
Color Accuracy (CRI)
80 CRI
R9 Value
High color performance with R9 no greater than 5
Color Consistency
<5-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Installation
Mounting
Slipfitter/Trunnion
Construction
Enclosure Material
Metal
Lens
Glass
Compliance
Listings
UL Listed, UL Recognized
UL Listed
Suitable for wet locations. Suitable for mounting within 4 ft of the ground.
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
Fixture Rating
Suitable for use in enclosed fixtures.
Suitable for use in open fixtures.
Suitable for use in open fixtures.
IP Rating
IP65
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
California Title 20 Compliant
No
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
