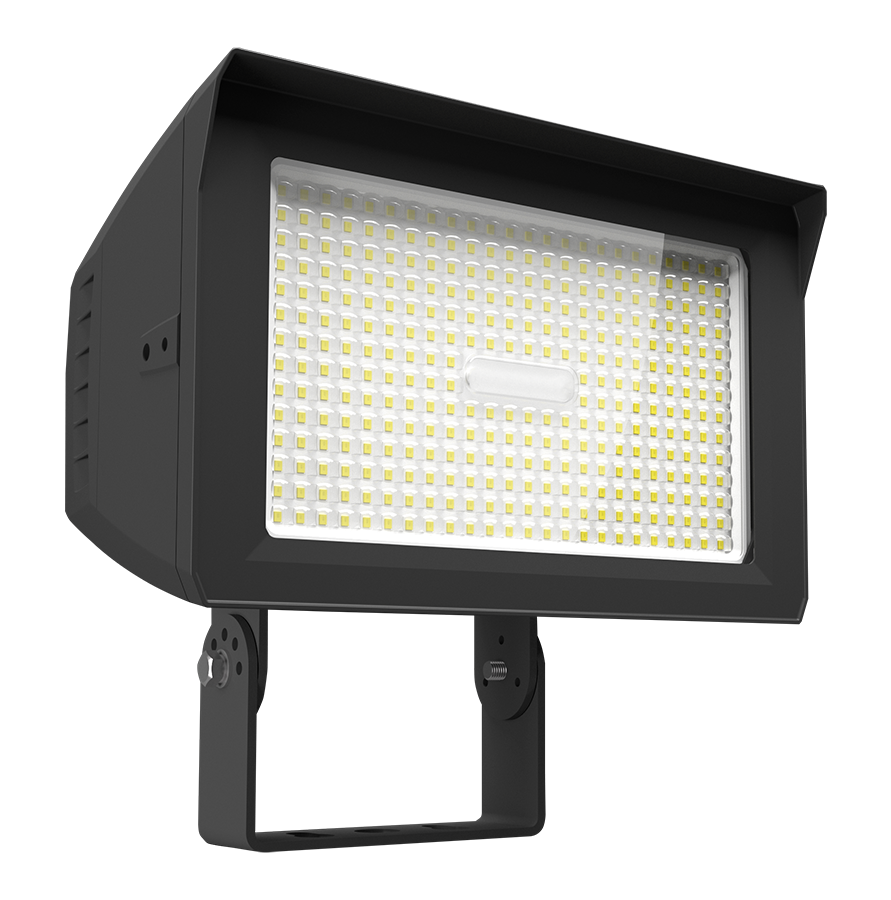

X22-150T/480
X22-150T/480
- DLC Premium listed
- IP65 Rated
- 50,000-Hour LED lifespan
- 5-Year, limited warranty
Performance
| Watts | 150/125/100/75W |
| Color Temp | 3000/4000/5000K |
| Lumens | |
| Efficacy | |
| Color Accuracy | |
| L70 Lifespan | 100,000 Hours |
| Type | Constant |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts |
Dimensions
Weight: 8.8 lbs
Technical Specifications
Field Adjustability
Optical Field Adjustability
90°, 75° and 55°
Field Adjustable
Field Adjustable Light Output:
150W/125W/100W/75W (factory default 150W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default 4000K)
150W/125W/100W/75W (factory default 150W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default 4000K)
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Electrical
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
