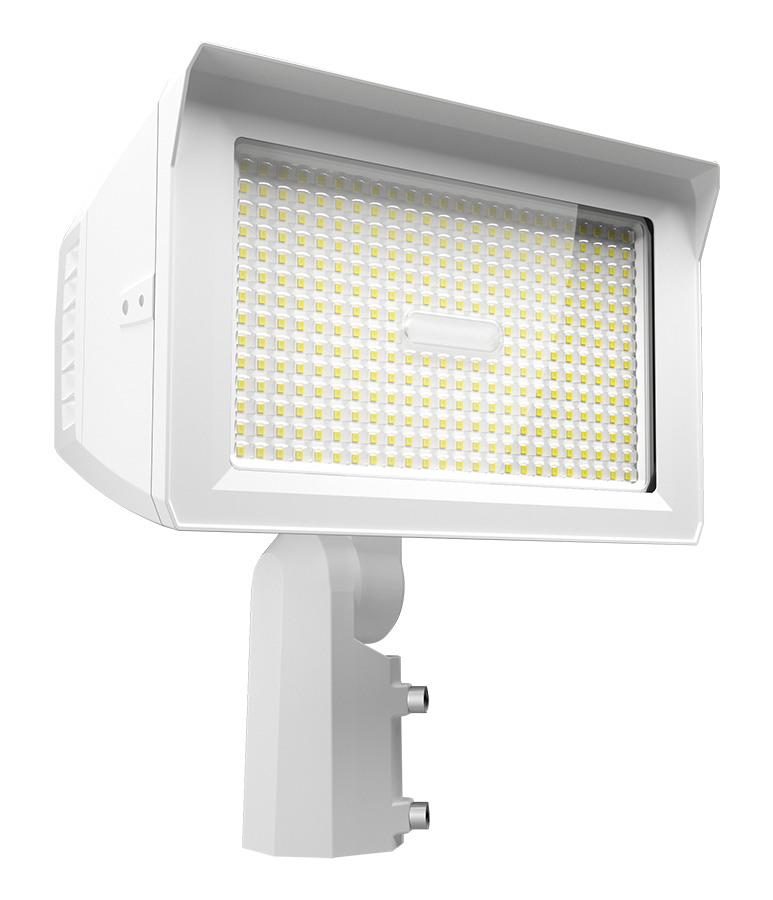

X22-150SFW

Spec Sheet Spec Sheet

X22-150SFW

DLC Premium listed

IP65 Rated

50,000-Hour LED lifespan

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	150/125/100/75W
Color Temp	3000/4000/5000K
Lumens	10,736-23,793 lm
Efficacy	128.9-173.3 lm/W
Color Accuracy	82-85 CRI
L70 Lifespan	100,000 Hours

Type	Constant
120V	1.20A
208V	0.71A
240V	0.62A
277V	0.56A
Input Watts	71.8-153.1W

Dimensions

Weight: 8.8 lbs

Technical Specifications

Field Adjustability

Optical Field Adjustability

90°, 75° and 55°

Field Adjustable

Field Adjustable Light Output:
150W/125W/100W/75W (factory default 150W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default 4000K)

Compliance

UL Listed

Suitable for wet locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Electrical

Driver

150W: Class 1, Constant Current, 120-277V, 50/60 Hz,
120V: 1.20A, 208V: 0.71A, 240V: 0.62A, 277V: 0.56A

125W: Class 1, Constant Current, 120-277V, 50/60 Hz,
120V: 1.01A, 208V: 0.60A, 240V: 0.53A, 277V: 0.47A

100W: Class 1, Constant Current, 120-277V, 50/60 Hz,
120V: 0.83A, 208V: 0.49A, 240V: 0.43A, 277V: 0.39A

75W: Class 1, Constant Current, 120-277V, 50/60 Hz,
120V: 0.69A, 208V: 0.37A, 240V: 0.34A, 277V: 0.31A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
