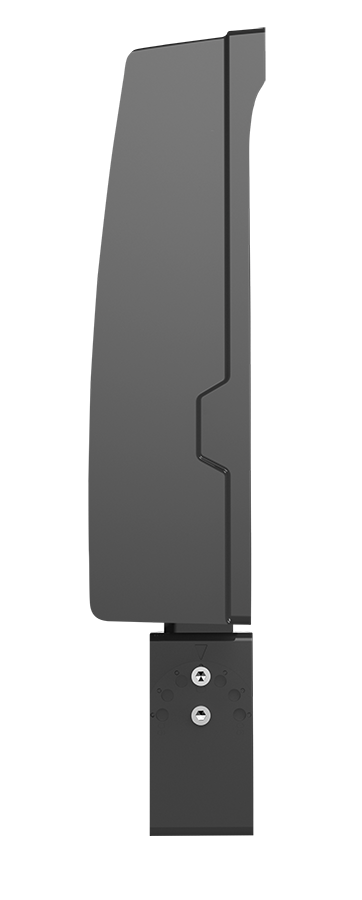

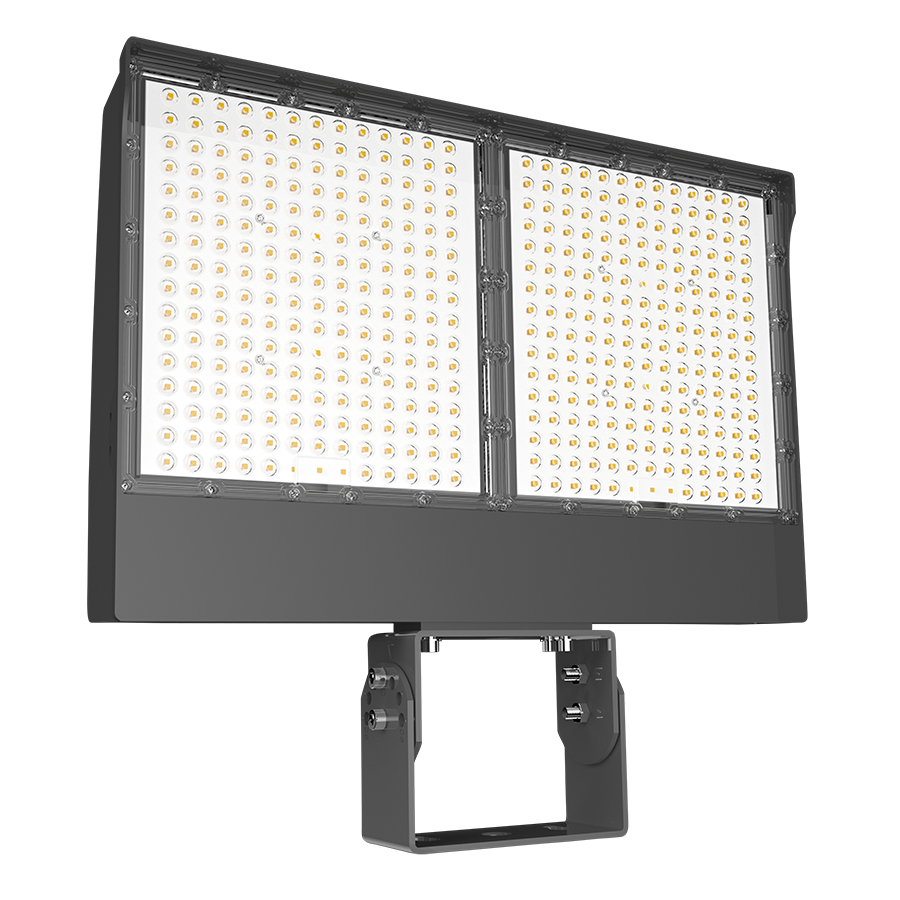

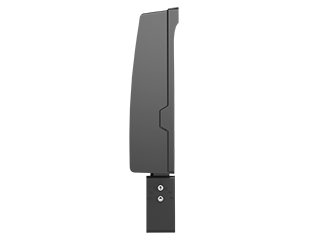

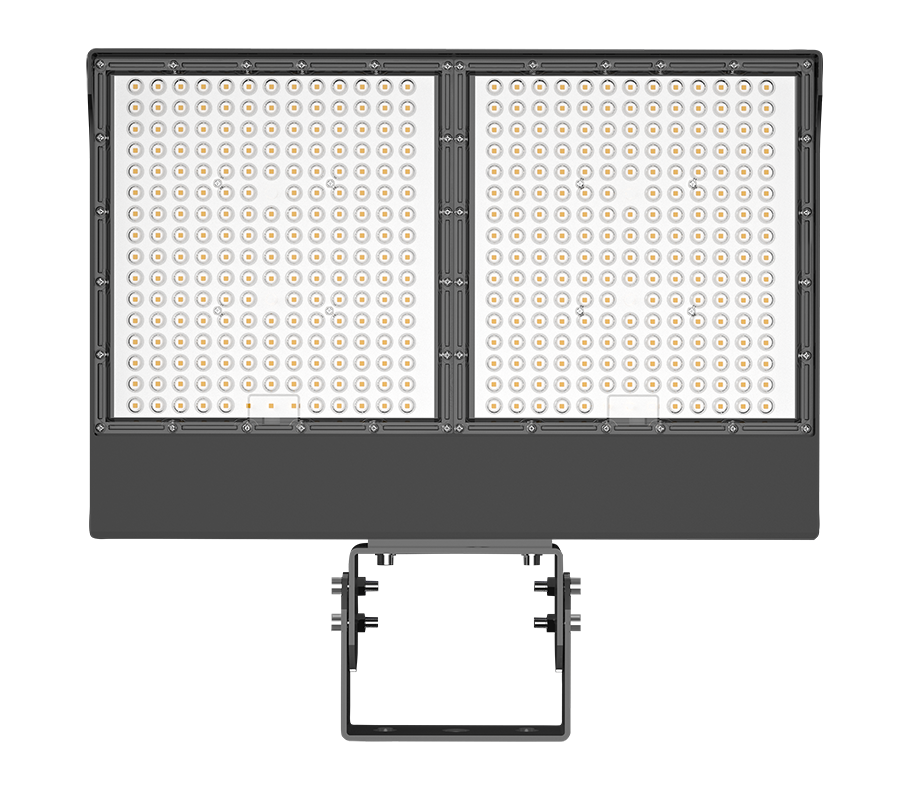

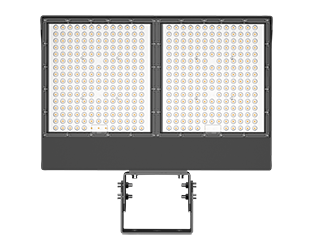

X17XFU330T/480/PCT

Spec Sheet IES File LM79 Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

X17XFU330T/480/PCT

330W 3000/4000/5000K

3-Way field adjustability

0-10V Dimming, standard

100,000-hour LED lifespan

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	330W
Color Temp	3000/4000/5000K
Lumens	28,868-49,708 lm
Efficacy	137.3-174.7 lm/W
Color Accuracy	81-83 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V
208V
240V
277V
Input Watts	174.21-332.21W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 20.6 lbs

Technical Specifications

Field Adjustability

3-Way Field Adjustable

Field Adjustable Light Output:
330/250/175W (factory default 330W)
Color temperature (selectable by 3000K, 4000K and 5000K)

Compliance

UL Listed

Suitable for wet locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

Ingress protection rating of IP65 for dust and water

DLC Listed

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities.
DLC Product Code: S-LFB45S

Electrical

Driver

Constant Current, Class 2, 480V, 50/60Hz, 480V: 0.73A

Dimming Driver

Driver includes wiring for 0-10V dimming systems. Dim as low as 10%.

THD

7.25% at 480V

Power Factor

96.3% at 480V

Photocell

480V Twistlock photocell included. Photocell is only compatible with 480V.

Surge Protection

CM: 10 kV
DM: 6 kV

Shorting Cap

Shorting Cap included for Twistlock Receptacle

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Ambient Temperature

Max Power Temp Rating: 104°F (40°C )
Middle Power Temp Rating: 47°C (116°F)
Low Power Temp Rating: 53°C (128°F)

Housing

Precision die-cast aluminum

Lens

Tempered glass

Reflector

Polycarbonate

Tilt Increment

Rotates in 30 degree increments

Effective Projected Area

EPA = 1.7

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Optical

NEMA Type

NEMA Beam Spread 7H x 6V

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Performance

Wattage Equivalency

Equivalent to 1,000W Metal Halide
