X17PA450SF/PCT

Spec Sheet IES File LM79 Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

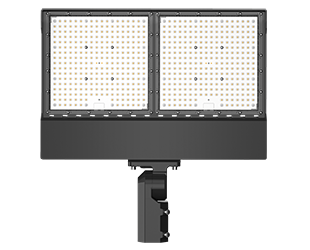

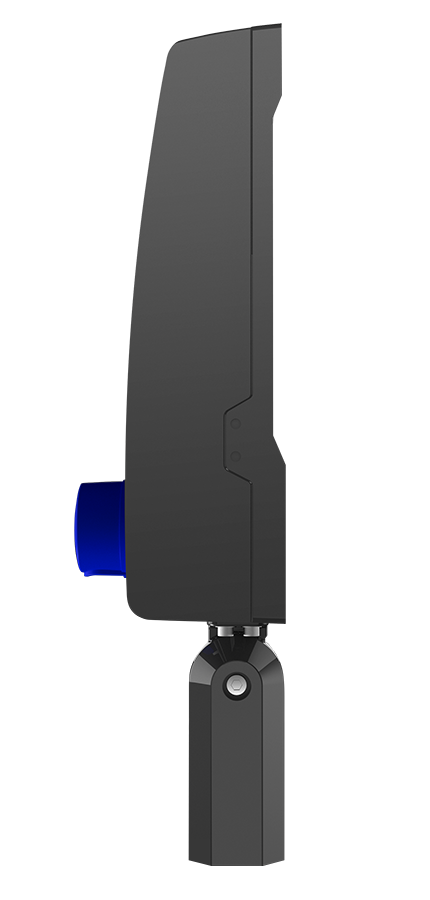

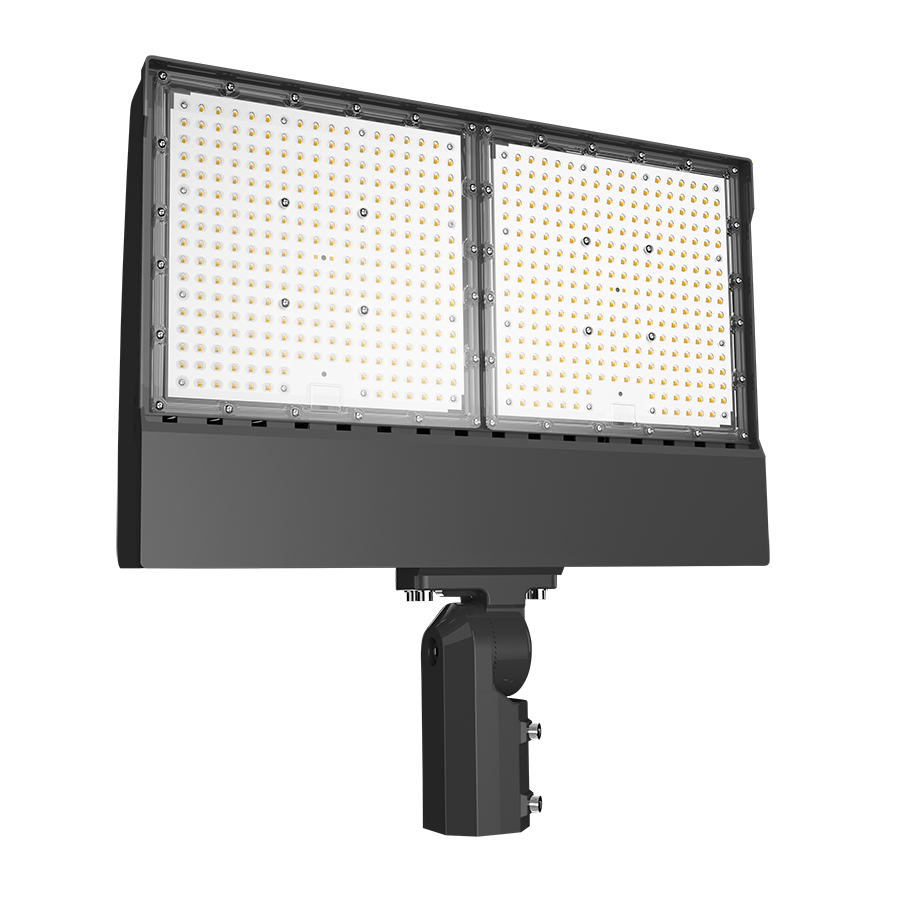

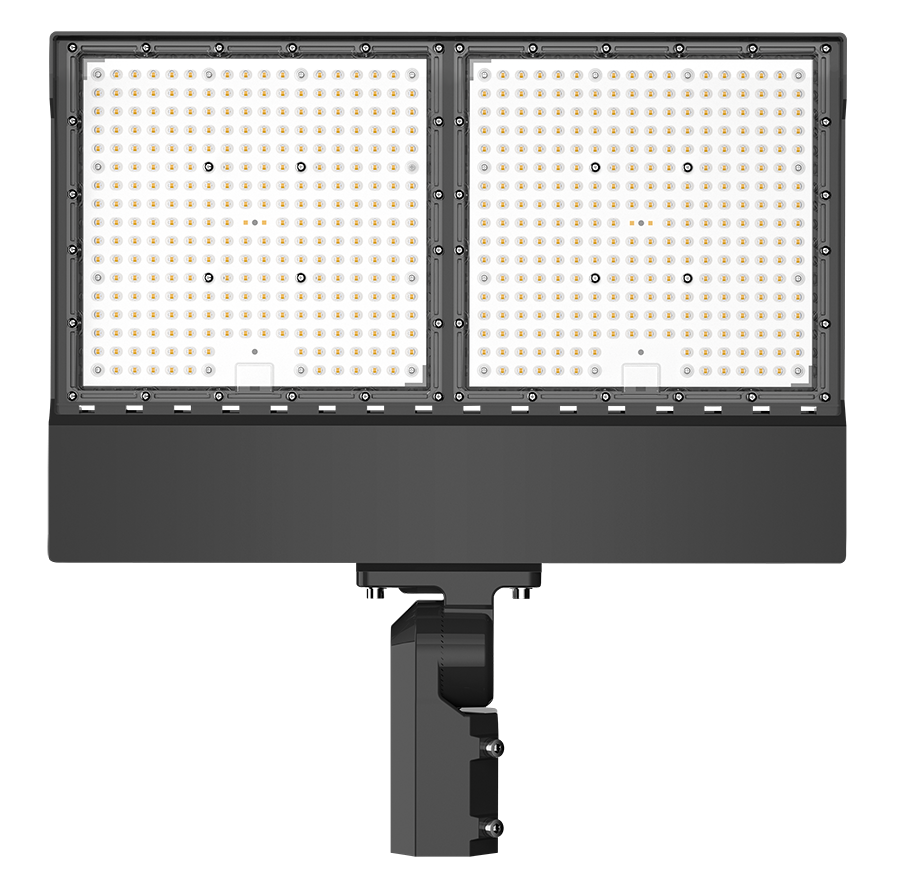

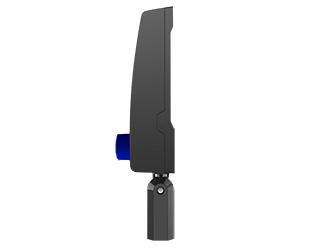

X17PA450SF/PCT

450W 5000K (Cool)

View Technical Specs

View Price & Availability

Performance

Watts	450W
Color Temp	5000K (Cool)
Lumens	66,638/53,853/41,700 lm
Efficacy	146.5/152.7/163.7 lm/W
Color Accuracy	83/81/82 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	3.79A
208V	2.19A
240V	1.90A
277V	1.64A
Input Watts	454.87/352.74/254.69W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 28.1 lbs

Technical Specifications

Field Adjustability

Power Adjustable

Field adjustable light output in 3 discrete steps:
450/350/250W (factory default 450W)

Compliance

UL Listed

Suitable for wet locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80.

IP Rating

Ingress protection rating of IP65 for dust and water

Electrical

Driver

450W: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 3.79A, 208V: 2.19A, 240V: 1.90A, 277V: 1.64A
350W: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 2.94A, 208V: 1.70A, 240V: 1.47A, 277V: 1.27A
250W: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 2.12A, 208V: 1.22A, 240V: 1.06A, 277V: 0.92A

Dimming Driver

Driver includes wiring for 0-10V dimming systems. Dim as low as 10%.

THD

3.42% at 120V, 10.25% at 277V

Power Factor

99.9% at 120V, 96.5% at 277V

Photocell

120-277V Twistlock photocell included. Photocell is compatible with 120-277V.

Surge Protection

CM: 10 kV
DM: 6 kV

Shorting Cap

Shorting Cap included for Twistlock Receptacle

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Housing

Precision die-cast aluminum

Lens

Tempered glass

Reflector

Polycarbonate

Tilt Increment

Rotates in 6 degree increments

Effective Projected Area

EPA = 2.4

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

Slipfitter with 180° pivot available for mounting on 2 3/8" tenon

Optical

NEMA Type

NEMA Beam Spread 7H x 6V

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Performance

Wattage Equivalency

Equivalent to 1,500W Metal Halide
